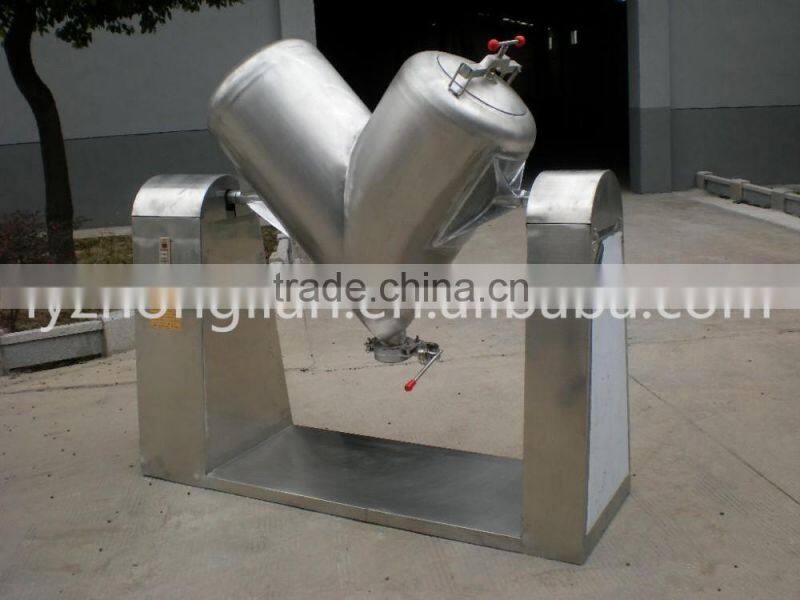

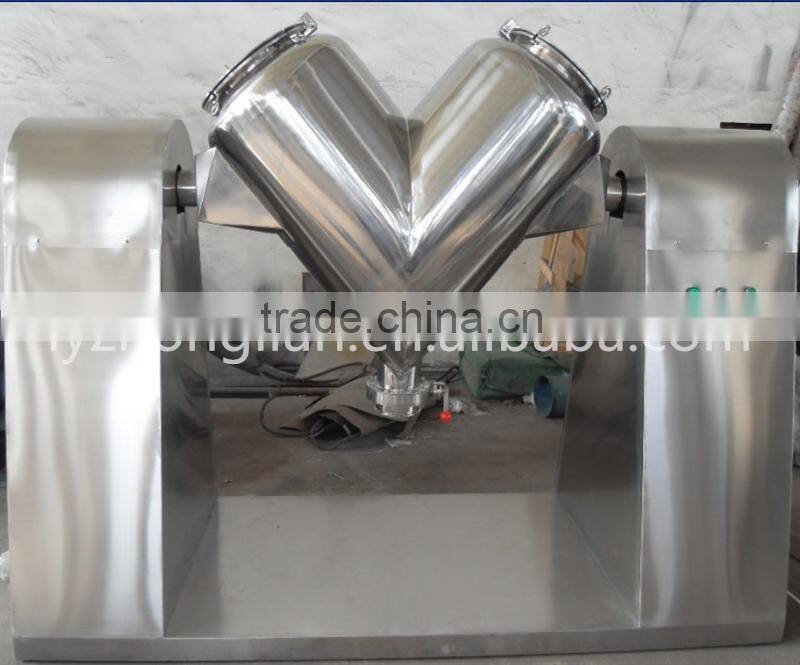

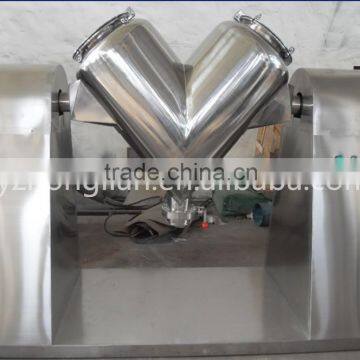

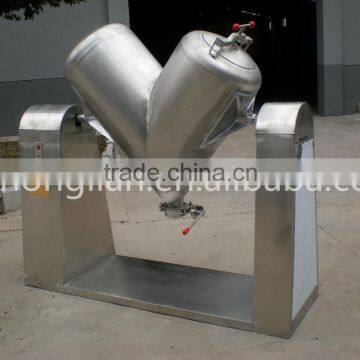

V-type High efficient Powder or Granular Mixing Machine
Application:
This machine has the following distinguishing features no blind eagle in the cylinders number accumulation of materials, high speed and short mixing time. With the body made of stainless steel and both inner and outer walls polished.
The cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powder or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and throng mechanical transmission the materials in these cylinders area made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing.
Technical parameter:
Specification |
0.05M3 |
0.15M3 |
0.3 M3 |
0.5 M3 |
1 M3 |
1.5 M3 |
3 M3 |
Max. volume(L) |
25 |
75 |
150 |
250 |
500 |
750 |
1500 |
Capacity (kg) |
12.5 |
37.5 |
75 |
125 |
250 |
375 |
750 |
Power (kw) |
0.37 |
0.8 |
1.5 |
1.5 |
2.2 |
3 |
4 |
Overall Size (mm) |
1150X800X |
1600X1100X |
2100X1600X |
2200X2000 |
3100X2300 |
3300X2600X |
4200X2700X 3600 |
Weight (kg) |
200 |
250 |
480 |
500 |
700 |
900 |
1100 |
V-Type Mixing Machine Packaging: Wooden Package
V-Type Mixing Machine Shipping: By Sea, By Air and By Train
The Service of V-Type Mixing Machine:
Technical suppport and Training support
Engineers available to service machinery overseas
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning Province, earliest engaged in the production of centrifugal machinery in China. Zhonglian is specially engaged in
the production of centrifugal equipment and pharmaceutical machinery, owns many years of experience in professional production, enjoys advanced technology and high quality equipment, developed and manufactured multiple hi-tech centrifugal equipment including disc centrifuge, tubular centrifuge, tripod series centrifuge and
flat plate centrifuge, which are widely applied in pharmaceutical, chemical, food, smelting and other industries. Our company is supported and well received by a wide range of users with reliable quality and excellent after-sales service. Our company mapped and improved originally imported TA60 disc separator to perfect the complicated structure of disc separator and better each index to be greatly approved of by users.
