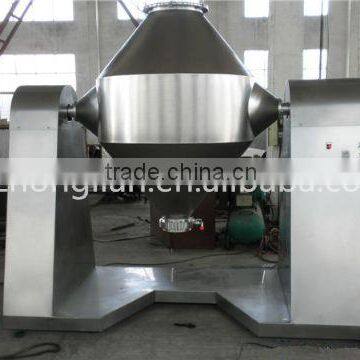

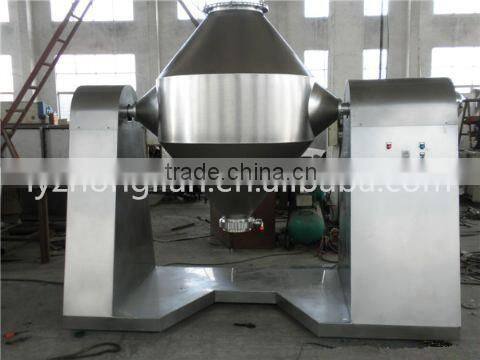

DC-1000 Double-Cone Powder or Granule Mixing Machine
Technical Parameter:
| Model | DC-180 | DC-300 | DC-500 | DC-1000 | DC-1500 | DC-2000 | DC-2500 | DC-3000 | DC-4000 |
| Total volume(L) | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Capacity(kg/batch) | 40 | 60 | 100 | 200 | 300 | 400 | 500 | 600 | 800 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Rotating speed of cylinder(rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 8 | 8 | 8 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 | 7.5 | 7.5 | 11 |
| Dimension(mm) |
1400*800* 1850 |
1685*800* 1850 |
1910*800* 1940 |
2765*1500* 2370 |
2960*1500* 2480 |
1400*800* 3500 |
1400*800* 3560 |
1400*800* 3600 |
1400*800* 3680 |
| Rotation Height(mm) | 1850 | 1850 | 1950 | 2460 | 2540 | 3590 | 3650 | 3700 | 3730 |
| Weight(kg) | 280 | 310 | 550 | 810 | 980 | 1500 | 2150 | 2500 | 3200 |
Applications:
It is suitable for mixing the powder and state materials in the pharmacy, food, chemical, building material and other industries.
Features:

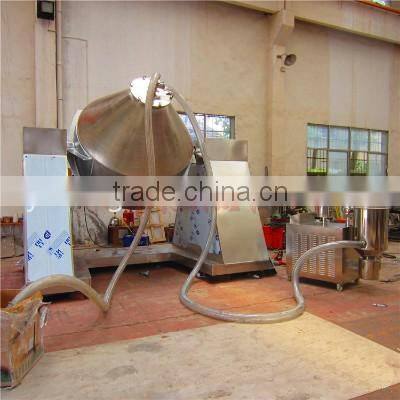

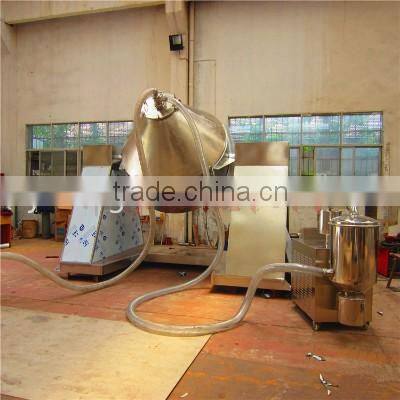

Through the vaccum conveyor for the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually.
As the container rotates continously, the materials moves conplexly in the container so as to get the uniform Mixing.

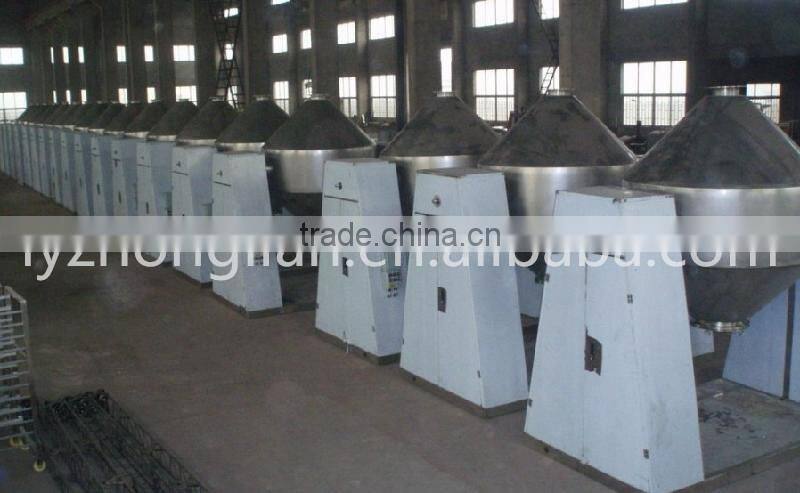

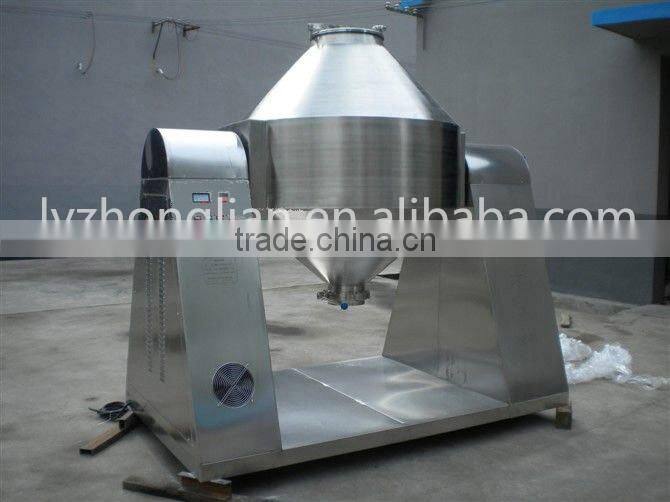

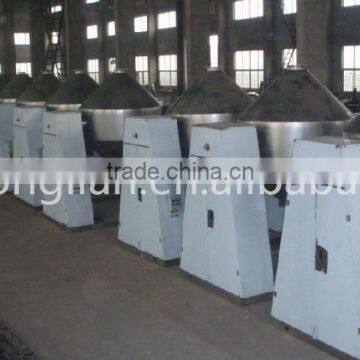

Pictures:
DC-1000 Double-Cone Mixing Machine Packaging: Wooden Package
DC-1000 Double-Cone Mixing Machine Shipping: By Sea, By Air and By Train
The Service of DC-1000 Double-Cone Mixing Machine :
Technical suppport and Training support
Engineers available to service machinery overseas
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning Province, earliest engaged in the production of centrifugal machinery in China. Zhonglian is specially engaged in
the production of centrifugal equipment, pharmaceutical machinery and packaging machine, owns many years
of experience in professional production, enjoys advanced technology and high quality equipment, developed

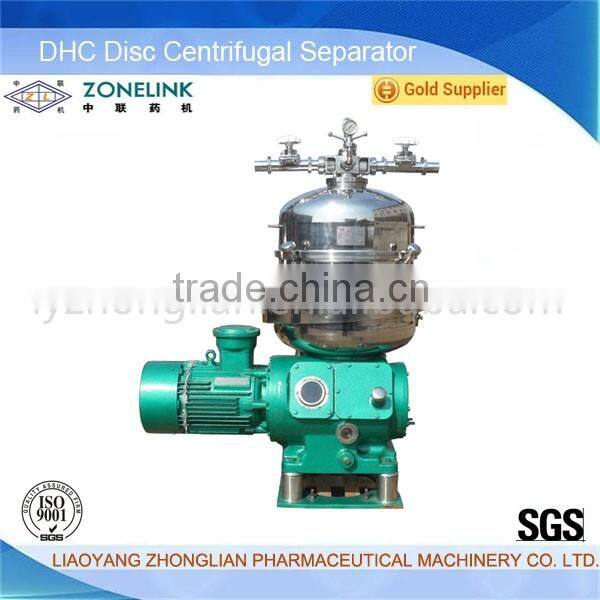

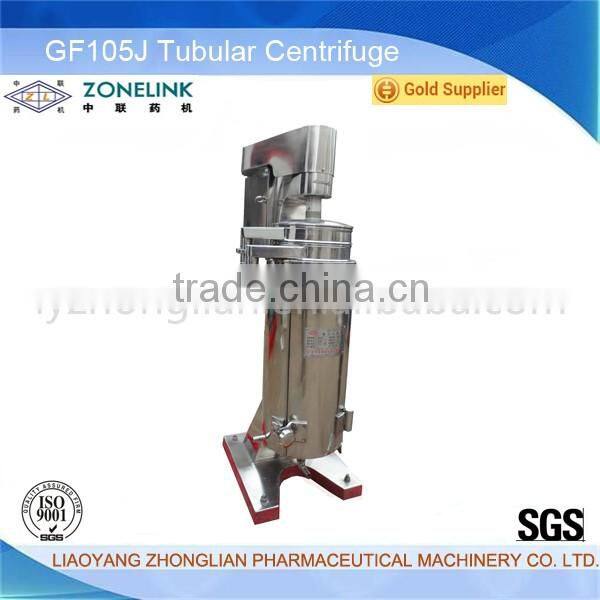

and manufactured multiple hi-tech centrifugal equipment including disc centrifuge, tubular centrifuge, tripod
series centrifuge and flat plate centrifuge, which are widely applied in pharmaceutical, chemical, food, smelting
and other industries. Our company is supported and well received by a wide range of users with reliable
quality and excellent after-sales service. Our company mapped and improved originally imported TA60 disc
separator to perfect the complicated structure of disc separator and better each index to be greatly approved of by users.
