Help CenterGF105J (Separating Type) High Speed High Efficiency Tubular Bowl Yeast Centrifuge Separator Machine
Related Products
-
GQ45A/J (clarifying Type) High Speed High Efficiency Tubular Bowl Yeast Centrifuge Separator MachineUS$ 4,000 - 5,000MOQ: 1 Unit -
GF45A/J (Separating Type) High Speed High Efficiency Tubular Bowl Yeast Centrifuge Separator MachineUS$ 4,000 - 5,000MOQ: 1 Unit
-
GF75A/J (Separating Type) High Speed High Efficiency Tubular Bowl Yeast Centrifuge Separator MachineUS$ 6,000 - 9,000MOQ: 1 Unit
-
GQ75A/J (clarifying Type) High Speed High Efficiency Tubular Bowl Yeast Centrifuge Separator MachineUS$ 6,000 - 9,000MOQ: 1 Unit
-
GQ105J (clarifying Type) High Speed High Efficiency Tubular Bowl Yeast Centrifuge Separator MachineUS$ 6,000 - 9,000MOQ: 1 Unit

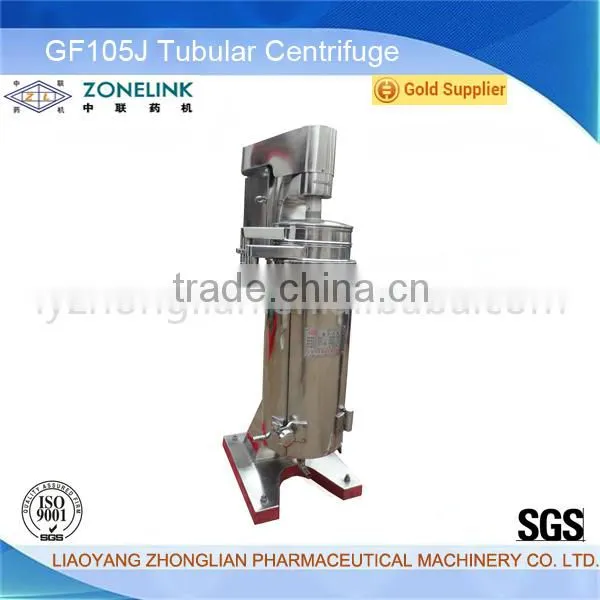

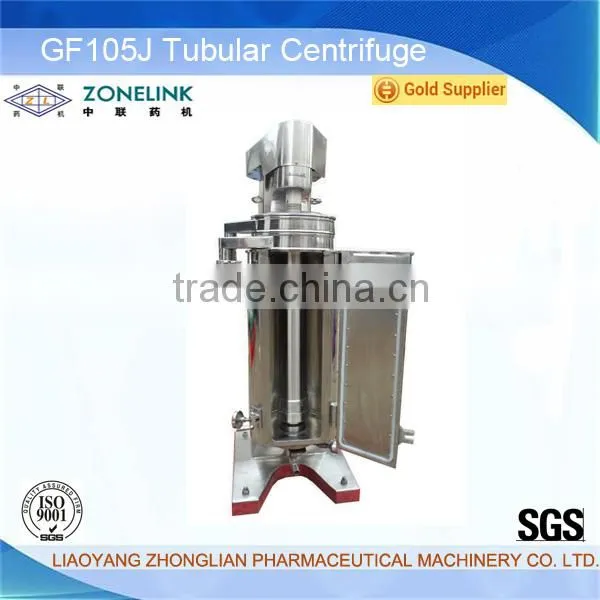

GF105J Liquid-Liquid-Solid Separation Tubular bowl Centrifuge Machine
Technical Parameter and Selection Model Form:
|
(Tubular Centrifugal Separator) Model Item |
GQ(F)45A | GQ(F)75A | GQ(F)105A | GQ(F)125A | GQ150A | |
| GQ(F)45J | GQ(F)75J | GQ(F)105J | GQ(F)125J | GQ150J | ||
| Bowl | Diameter(mm) | 45 | 75 | 105 | 125 | 142 |
| Effective height(mm) | 280 | 430 | 730 | 735 | 700 | |
| Sedimentation volume(L) | 0.45 | 2 | 5.5 | 7.4 | 10 | |
| Speed (r/min) | 0-28000 | 20000 | 16000 | 15000 | 14000 | |
| Max separation factor | 0-19800 | 16770 | 15025 | 15500 | 15570 | |
| Feed nozzle diameter(mm) | 2.3 | 2.3.5 | 4.6.8.10 | 6.8.10 | 6.8.10 | |
| Feed inlet pressure(Mpa) | >0.05 | >0.05 | >0.05 | >0.05 | >0.05 | |
| Throughtput(kg/h) | ≈100 | ≈500 | ≈1200 | ≈2000 | ≈3000 | |
| Motor | Model | Series machine | Y90S-2 | Y90S-2 | Y90L-2 | Y100L-2 |
| Power(kw) | 0.6 | 1.5 | 2.2 | 3.0 | 3.0 | |
| Speed (r/min) | 0~4500 | 2840 | 2880 | 2880 | 2880 | |
| Size (L×W×H)(mm) | 580×650×750 | 800×400×1200 | 800×700×1400 | 850×500×1600 | 800×700×1600 | |
| Weight(kg) | 120 | 300 | 400 | 610 | 610 | |
| Area of Heat radiation(m2) | 0.5 | 0.5 | 0.5 | 0.5 | 0.533 | |
| Under pressure(Mpa) | 1 | 1 | 1 | 1 | <2.4 | |

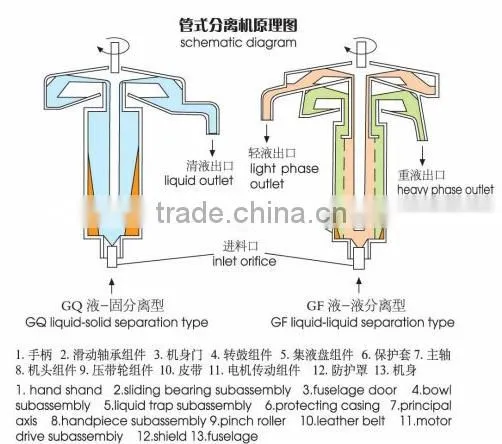

Working principle Products structure chart
Structure and principle
It is high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl
collecting pan and liquid-in bearing seats. The upper of the bowl is flexible mainshaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.
GF: It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micropowder, extract liquid from plants, separation of plasma and cell.

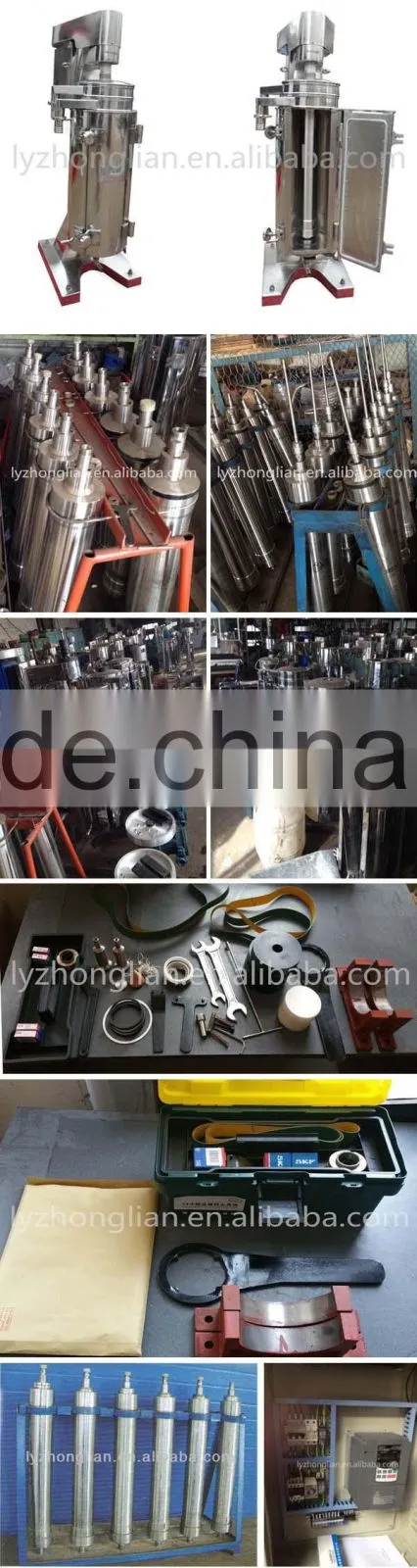

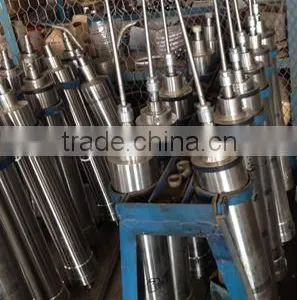

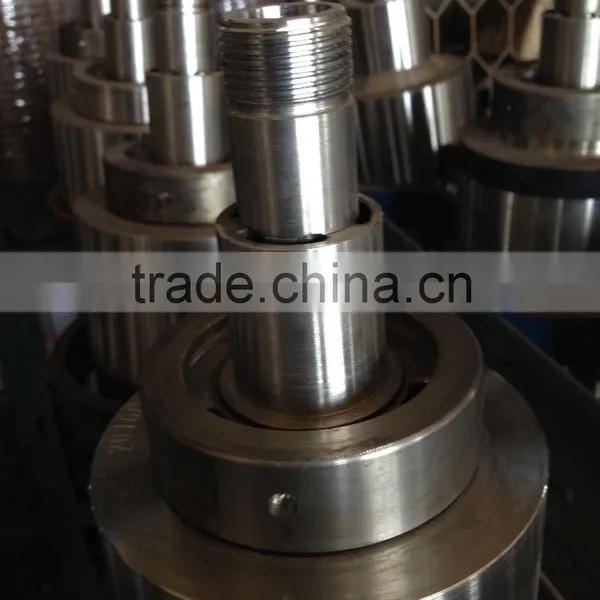

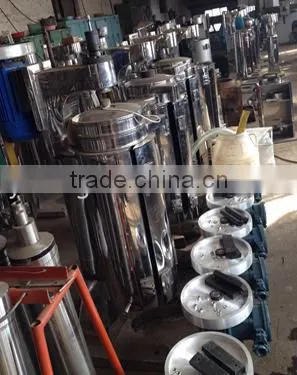

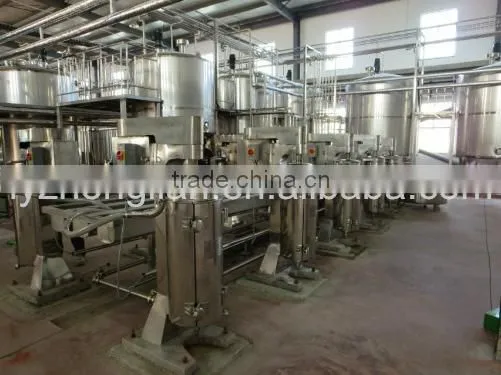

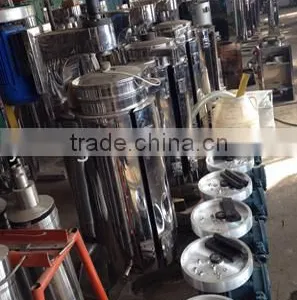

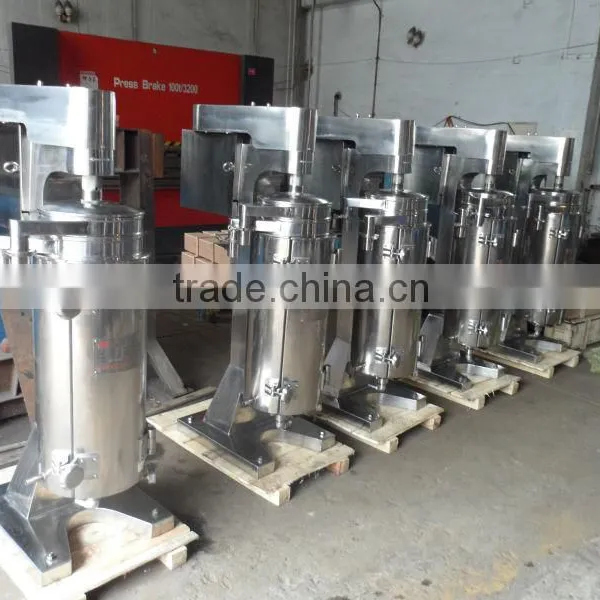

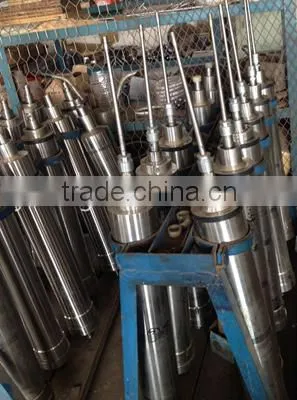

Product pictures

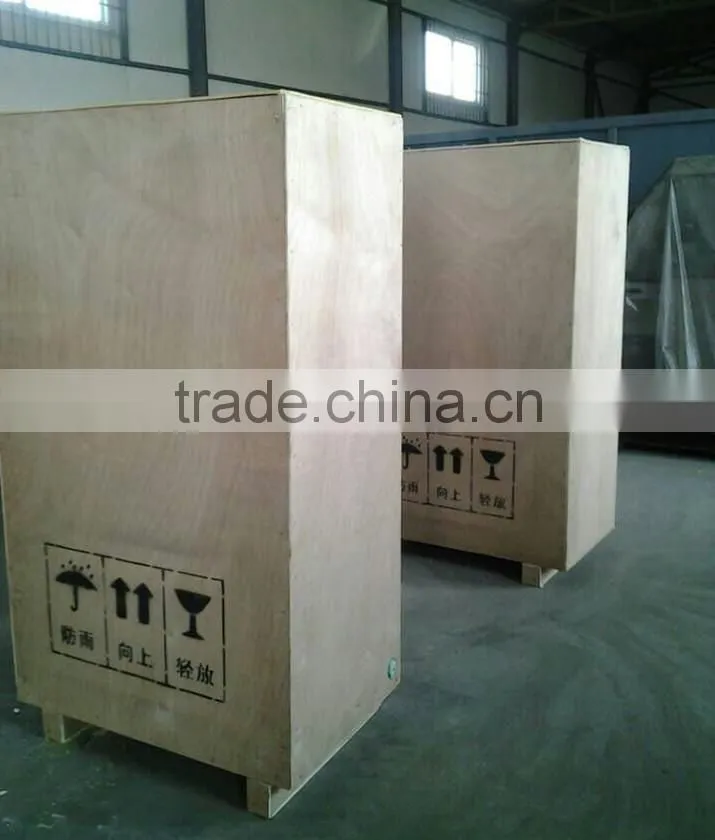

GF105J Tubular bowl Centrifuge Machine Packaging: Wooden Package
GF105J Tubular bowl Centrifuge Machine Shipping: By Sea, By Air and By Train
The Service of GF105J Tubular bowl Centrifuge Machine:
Technical suppport and Training support
Engineers available to service machinery overseas
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning Province, earliest engaged in the production of pharmaceutical machinery in China.Zhonglian is specially engaged
in the production of pharmaceutical machinery, centrifugal equipment and packaging machine, owns many
years of experience in professional production, enjoys advanced technology and high quality equipment,
developed and manufactured multiple pharmaceutical machine, multiple packaging machine and multiple hi-tech centrifugal equipment, including centrifugal separator machine, mixing machine, dryer machine, coating machine, powder packaging machine, granular packaging machine, blister packaging machine. disc centrifuge,
tubular centrifuge, tripod series centrifuge and flat plate centrifuge, which are widely applied in pharmaceutical,
chemical, food, smelting and other industries. Our company is supported and well received by a wide range of users with reliable quality and excellent after-sales service.
