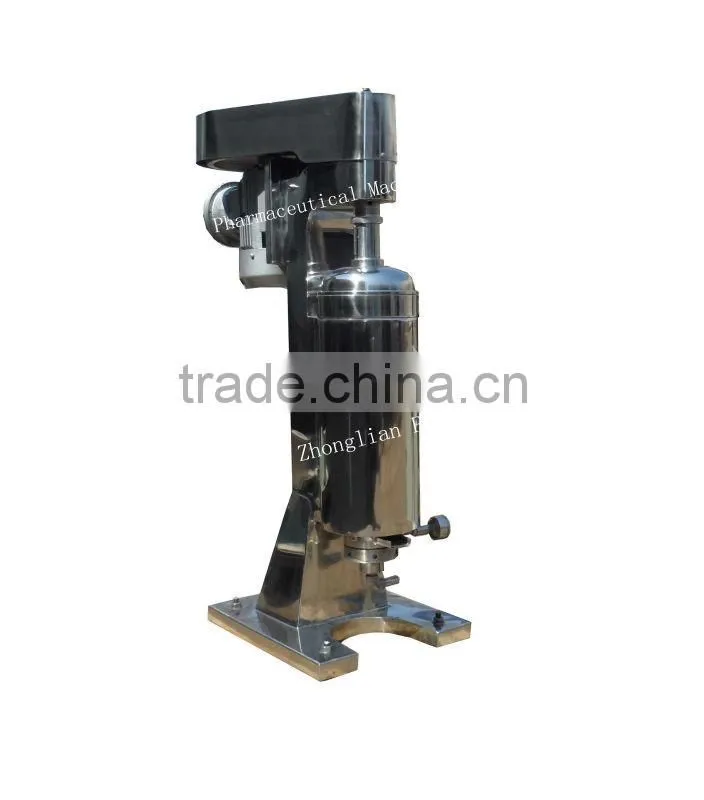

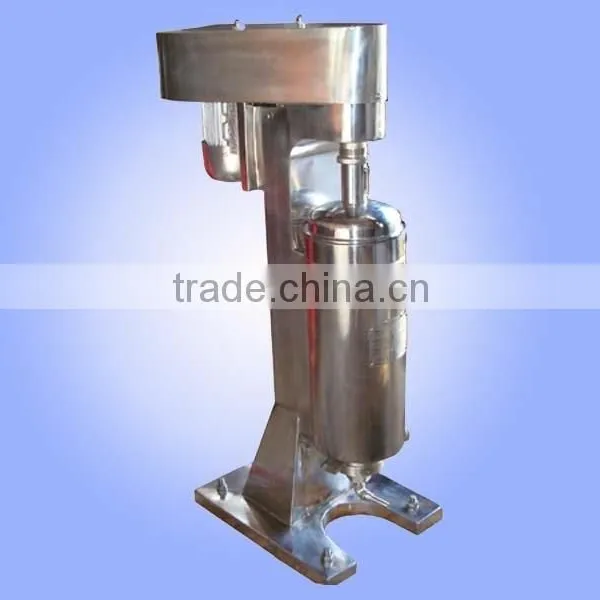

GQ Series Tubular Bowl Centrifuge GQ75A/J
Application
GQ Series Tubular Centrifuge (Clarification): Separating all kinds of suspension which is hard to separate, especially for liquid-solid separation which is small concentration, high viscosity, small particals, small difference of density, such as all kinds of liquid medicine, clarification of oral liquid, paint, dye, protein, vaccine mycelium, algae, pectin extraction, purification of rubber solution .
Structure and Principle
Tubular centrifuge separator is high speed centrifuge with strong capacity. The main parts: the body, bowl, transmission device, liquid collection plate, liquid inlet housing. Flexible principal axis is on the top of the bowl, dampingfloating bearing is at the bottom of the bowl, principal axis connects with connecting base, buffer and follower, Motor make the power to the follower through transmission belt and tension pulley, then the bowl rotates itself with high speed to make strong centrifugal force field. The material put in through the feed inlet at bottom, the material run upward through the inside wall of the bowl under centrifugal force, then separate depend on different density.
GQ Series Tubular Centrifuge (Clarification): High density particles deposit at the sidewall of the bowl, then the workers make the sediment out after power off, and the clarified liquid come out from the liquid outlet.

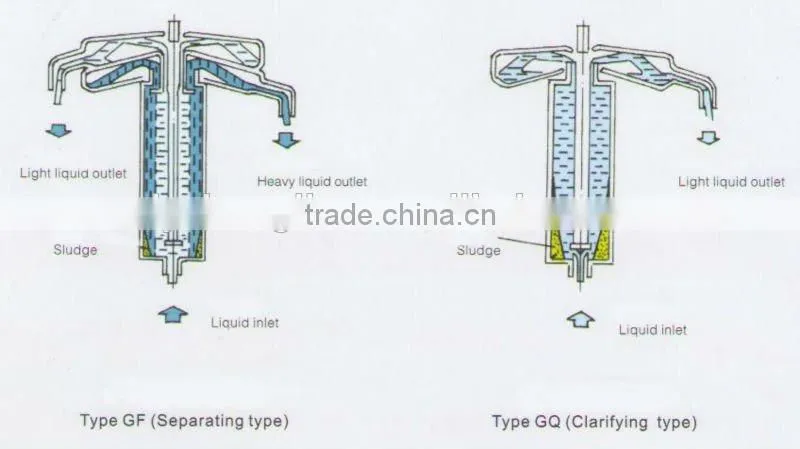

Working Principle Drawing
Base Drawing
Technical parameters

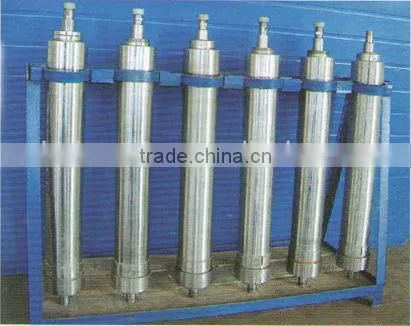

Bowl pictures:
Wooden Package Case
Engineers available to service machinery overseas
