Home > Products > Disc Centrifuge Separator > DRY530 three phase manual discharge high efficiency disc stack olive oil centrfugal separator machine
DRY530 three phase manual discharge high efficiency disc stack olive oil centrfugal separator machine
USD $20,000 - $50,000
/ Unit
1 Unit(Min.Order)
- 1000 Unit / Units per Month
- DaLian China
- T/T
You May Like
-
DHC-400 two phase high efficiency industrial disc stack olive oil centrifugal separator machine
-
DHY500 three phase high efficiency industrial disc stack olive oil centrifugal separator machine
-
DRY500 three phase high efficiency industrial disc stack olive oil centrifugal separator machine
-
DHC500 two phase high efficiency Automatic Discharge disc stack olive oil centrifugal separator machine
-
DRY400 Three phase high efficiency industrial disc stack egg white centrifugal separator machine
-
DHC-400 two phase high efficiency industrial disc stack egg white centrifugal separator machine
Product Details
| Condition | New | Type | Centrifuge | |
| Product Type | Other, disc stack separator centrifuge | Place of Origin | Liaoning, China | |
| Brand Name | ZoneLink | Model Number | DRY530 | |
| Voltage | Design for different Country | Power(W) | 15000 | |
| Weight | 1500kg | Dimension(L*W*H) | 1200*1100*1680mm | |
| Certification | SGS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description

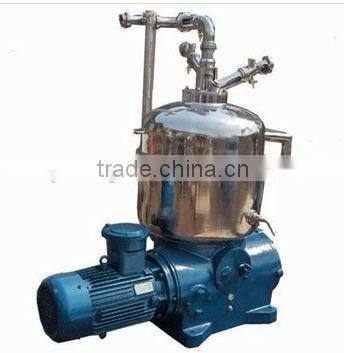

DRY530 disc stack centrifuge
Specifications
1.Liquid liquid solid separating
2.Suitable for small solid content
3.Inverter control
4.Start steady
5.Big capacity
Working principle:

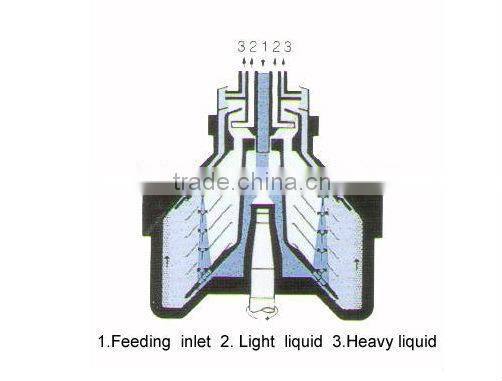

Structure and principle:
The bowl driven by the motor through the friction clutch spiral gear pair rotates around the mainshaft at a high speed. The disk rack in the bowl filled with disk increase the settling area of equivalent. Stock liquid flows into the bottom of bowl's wall through the bottom edge of disk seats and their holes in it. Solid material settled onto the inner surface wall of the bowl and forms into the residue by the centrifugal force field. Then the residue will be discharged manually after the machine stops. Light liquid flows along up the outer cone surfaces discs to the mainshaft center, passes through the light liquid centripetal pump and drains out of the light liquid outlet. Heavy liquid flows along the inner tapered surface of disc down to the bowl's wall and then passes through the heavy liquid centripetal pump and drains out of the heavy liquid outlet.
The bowl driven by the motor through the friction clutch spiral gear pair rotates around the mainshaft at a high speed. The disk rack in the bowl filled with disk increase the settling area of equivalent. Stock liquid flows into the bottom of bowl's wall through the bottom edge of disk seats and their holes in it. Solid material settled onto the inner surface wall of the bowl and forms into the residue by the centrifugal force field. Then the residue will be discharged manually after the machine stops. Light liquid flows along up the outer cone surfaces discs to the mainshaft center, passes through the light liquid centripetal pump and drains out of the light liquid outlet. Heavy liquid flows along the inner tapered surface of disc down to the bowl's wall and then passes through the heavy liquid centripetal pump and drains out of the heavy liquid outlet.

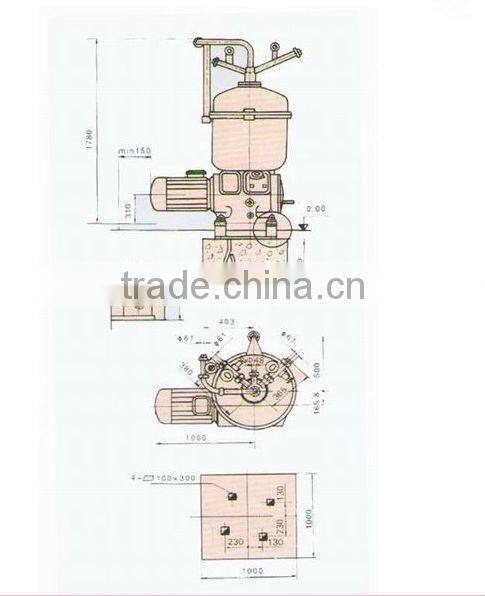

Product structure:
Technical Parameter:
Bowl pictures:
Packaging & Shipping

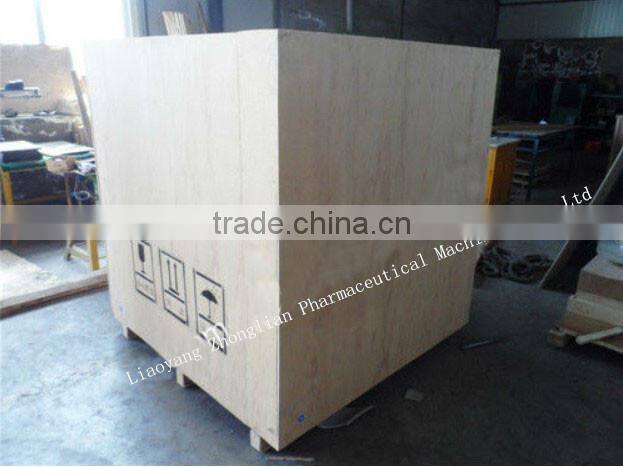

Wooden package
Our Services
Engineers available to service machinery overseas

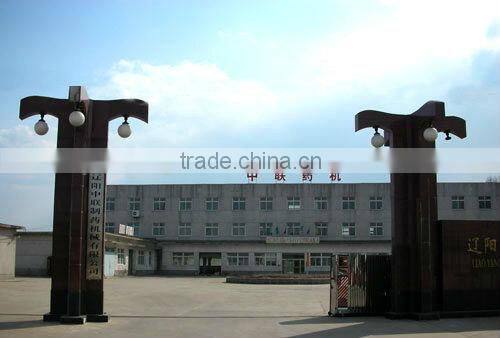

Company Information

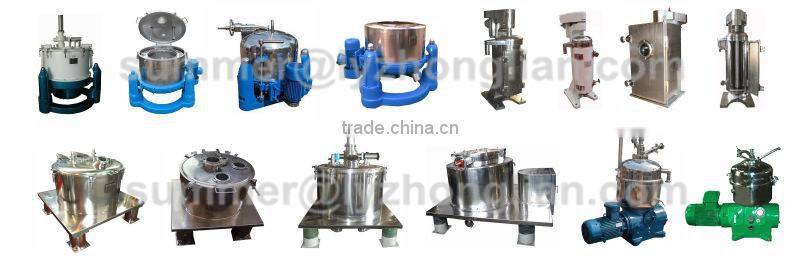

We also can provide as follow products
Contact Us
- Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd.
- Contact nameEmily Peng Chat Now
- Phone86-419-2195248
- AddressYanglinzi Village Qijia town Taizihe district , Liaoyang, Liaoning
