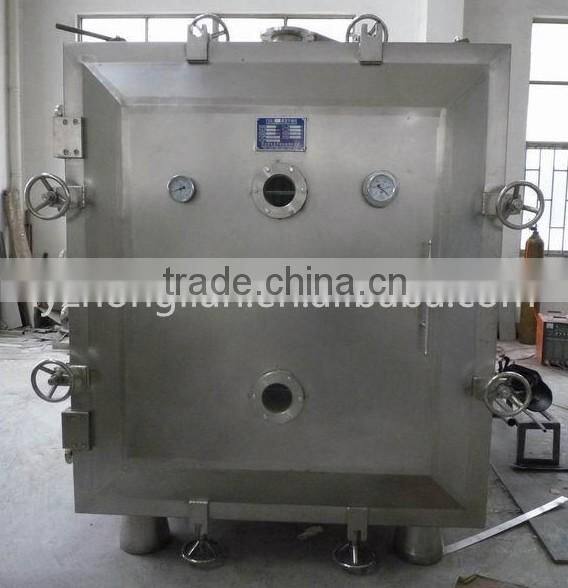

FZG series High Efficiency industrial Vacuum Dryer Machine
Working Principle and Features:
Pure water has the highest evaporation speed under boiling condition. At normal pressure, pure water starts to boil at the temperature of 100℃, under vacuum condition, as vapor pressure in the system is lower than that of material surface, boiling point of water is under 100℃,e.g. When surface is at 0.07MPa, water will boil at the temperature of 70℃, the higher of vacuum pressure, the lower of boiling point. In the vacuum dryer, evaporated water can be removed quickly by the vacuum system, therefore, this dryer has larger drying capability although it’s under lower operation temperature.
Material is under static conditions during operation of the equipment, which is benefit for keeping initial status of material, intermittent operation can adjust process conditions at any time.
On the top of FZG series dryer, heating system is arranged to tackle the problem of return of condensed water, in addition, air suction is arranged at the side to improve drying efficiency.
This equipment can be used for low temperature drying and solvent recovery, heat sources can be steam, hot water or heat conducting oil.
It is specially suitable for materials that is easily oxygenated during drying.
Features:
It can get higher drying speed at lower temperature and the heat energy can be used fully.
It can dry at low temperature or can dry heat sensitive raw materials.
It can dry raw materials that contain solvent and the solvent needs to recover.
Before drying, it can carry out disinfectant treatment. During the period of drying, any impurity can not enter in it.The dryer belongs to static vacuum one, the shape and volume of raw materials can not be damaged.
Technical Parameter:
|
Model Name |
FZG-10 |
FZG-15 |
FZG-20 |
Inner size of drying chamber W*H*D(mm) |
1500*1060*1220 |
1500*1400*1200 |
1500*1400*1850 |
Outer size of drying chamber W*H*D(mm) |
1924*1720*1513 |
1924*2063*1513 |
1924*2063*2153 |
Layers of baking support |
5 |
8 |
8 |
Interval(mm) |
122 |
122 |
122 |
Size of baking tray(mm) |
460*640*45 |
460*640*45 |
460*640*45 |
Quantity of baking tray |
20 |
32 |
48 |
Working pressure inside the pipe of baking support(Mpa) |
Less than 0.4 |
Less than 0.4 |
Less than 0.4 |
Operation temperature of baking support(℃) |
35-150 |
35-150 |
35-150 |
Degree of vacuum inside the chamber when operation in idle(Mpa) |
-0.1 |
-0.1 |
-0.1 |
Under the condition of -0.1Mpa and 110℃, evaporation rate of water(kg/m2Hr) |
7.2 |
7.2 |
7.2 |
When condensor is used, model and power of vacuum pump(kw) |
2x-70A 5.5kw |
2x-70A 5.5kw |
2x-90A 7.5kw |
When condensor is not used, Model and power of vacuum pump(kw) |
SK-2 4kw |
SK-2 5.5kw |
SK-3 7.5kw |
Weight of drying chamber(kg) |
1400 |
2100 |
3200 |

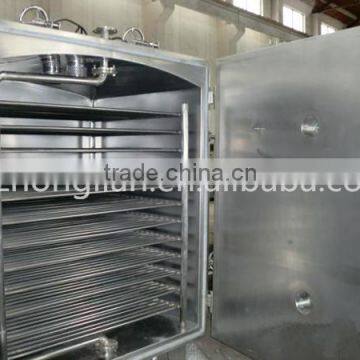

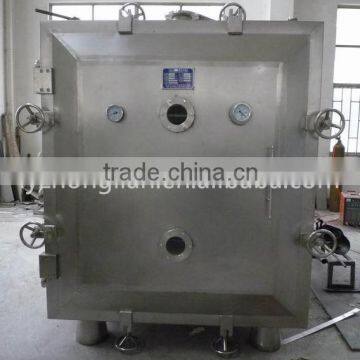

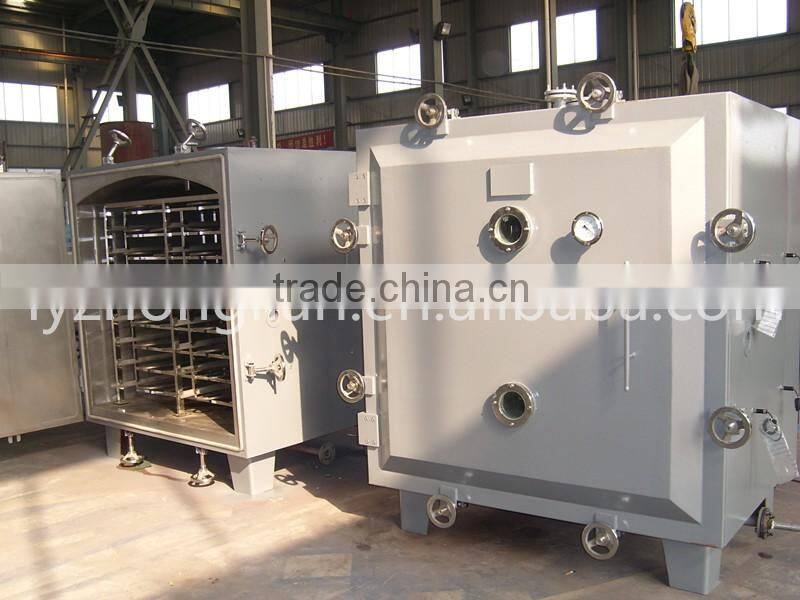

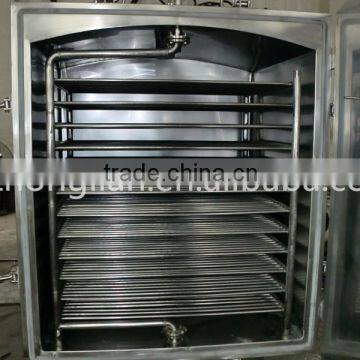

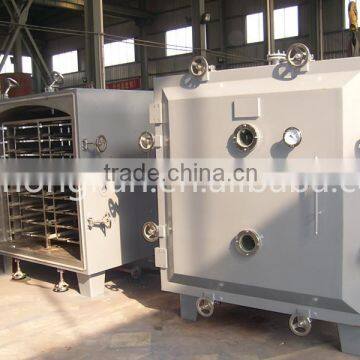

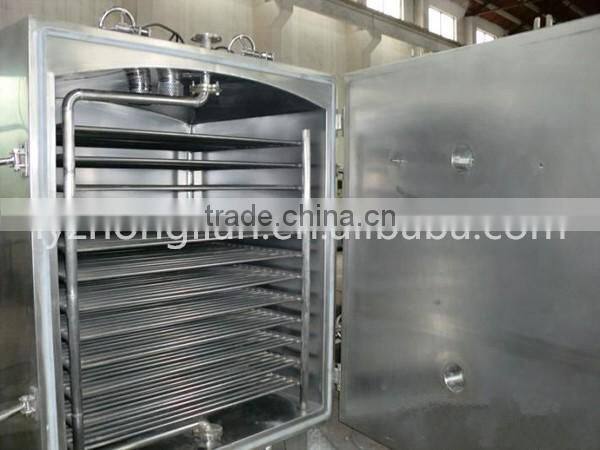

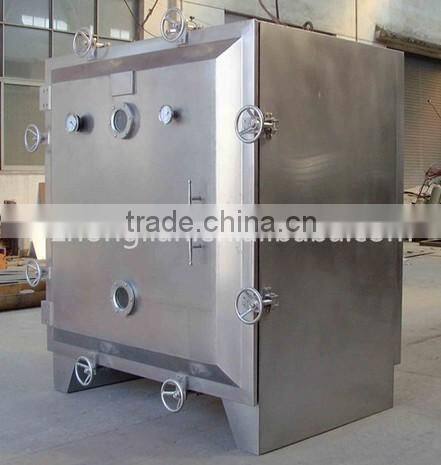

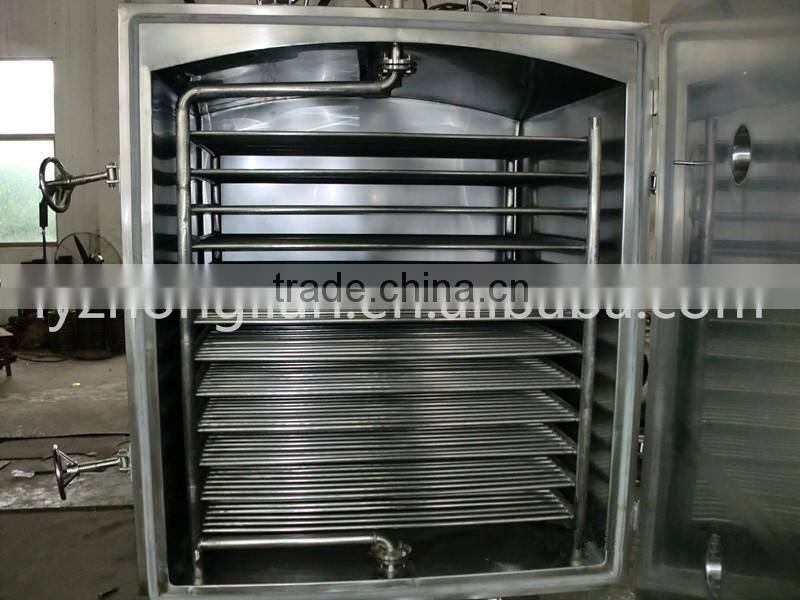

Pictures:
Vacuum Dryer Machine Packaging: Wooden Package
Vacuum Dryer Machine Shipping: By Sea, By Air and By Train
The Service of Vacuum Dryer Machine:
Technical suppport and Training support
Engineers available to service machinery overseas
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning Province, earliest engaged in the production of pharmaceutical machinery in China.Zhonglian is specially engaged
in the production of pharmaceutical machinery, centrifugal equipment and packaging machine, owns many
years of experience in professional production, enjoys advanced technology and high quality equipment,
developed and manufactured multiple pharmaceutical machine, multiple packaging machine and multiple hi-tech centrifugal equipment, including centrifugal separator machine, mixing machine, dryer machine, coating machine, powder packaging machine, granular packaging machine, blister packaging machine. disc centrifuge,
tubular centrifuge, tripod series centrifuge and flat plate centrifuge, which are widely applied in pharmaceutical,
chemical, food, smelting and other industries. Our company is supported and well received by a wide range of users with reliable quality and excellent after-sales service.
