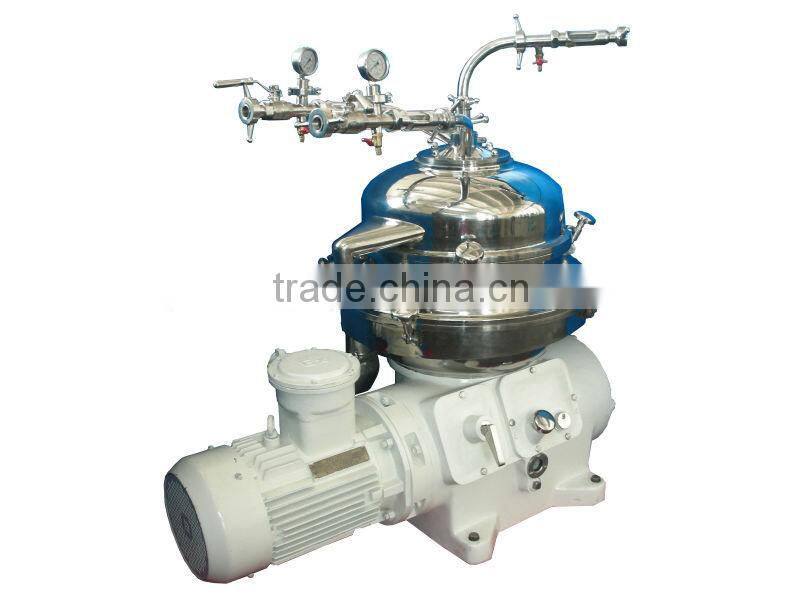

DHY500 Three Phase High Efficiency Industrial Disc Stack Milk Fat Centrifugal Separator Machine

Disc centrifuge separating separator---- DHY500

Working Principle:

Main features :

It can realize liquid-liquid-solid separation. it can be operated manually or automatically or remotely. This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemicals, petrol, metallurgy and biology, etc.
Main purpose:
This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemicals, petrol, metallurgy and biology, etc.

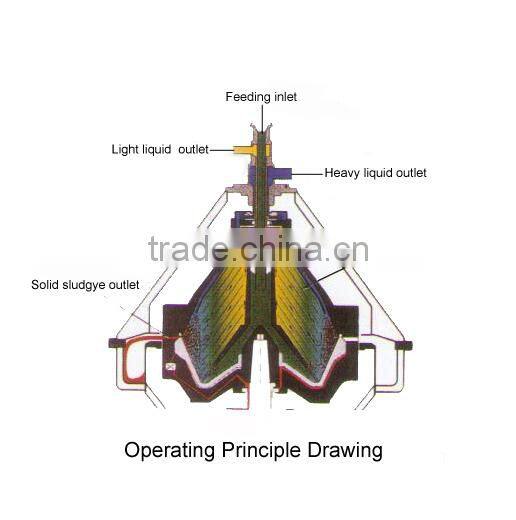

Structure and principle:
 The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged, controlled by the sliding bowl, out of the sediment outlet.

Products structure chart:

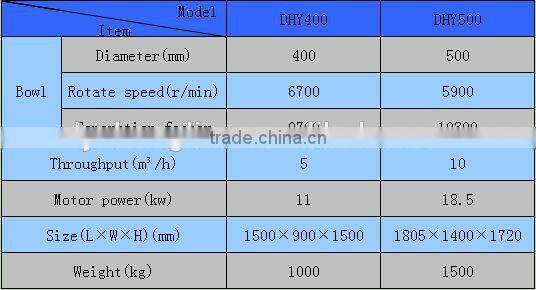

Technical parameter:

 Wooden Package Case

We also can provide as follow products
