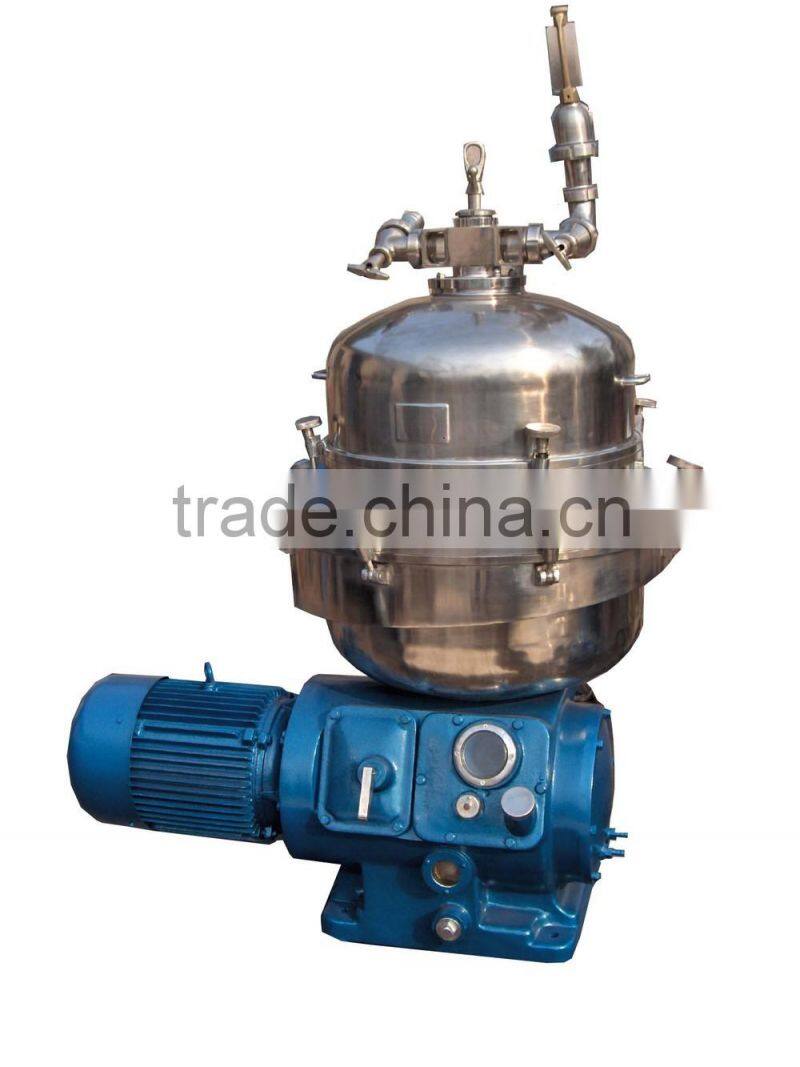

DHC500 Two Phase High Efficiency Automatic Discharge Disc Stack Milk Fat Centrifugal Separator Machine

 Automatic alfa laval disc stack centrifuge separator DHC500

Specification:

1.Liquid solid separating
2.Automatic discharging and washing
3.Inverter and resistor control

Structure and principle:

Disk Centrifuge DHC 500 is a terrific separating machine with a strong separating capacity, its separating factor can be at 5500, and able to achieve liquid-solid two-phase separation.

The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into center pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged, controlled by the sliding bowl, out of the sediment outlet.

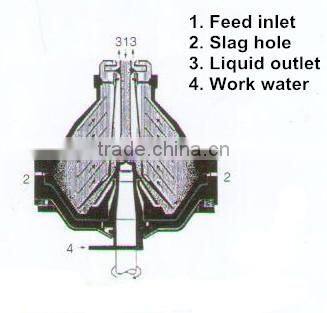

 Working principle:

principle:

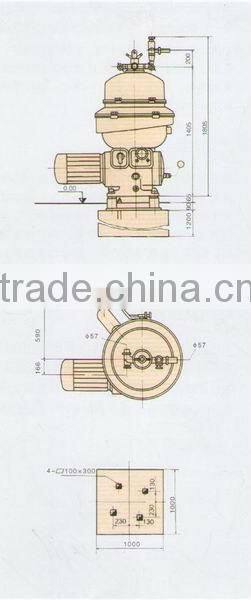

Products structure chart:

Technical parameter:

Products bowl pictures:

 Wooden Package Case

   Engineers available to service machinery overseas

We also can provide as follow products
