Factory sale BBQ biomass wood sawdust rice husk charcoal briquettes making machine 008615039052280
1. working flowchart and support machine of the BBQ wood sawdust charcoal briquettes making machine

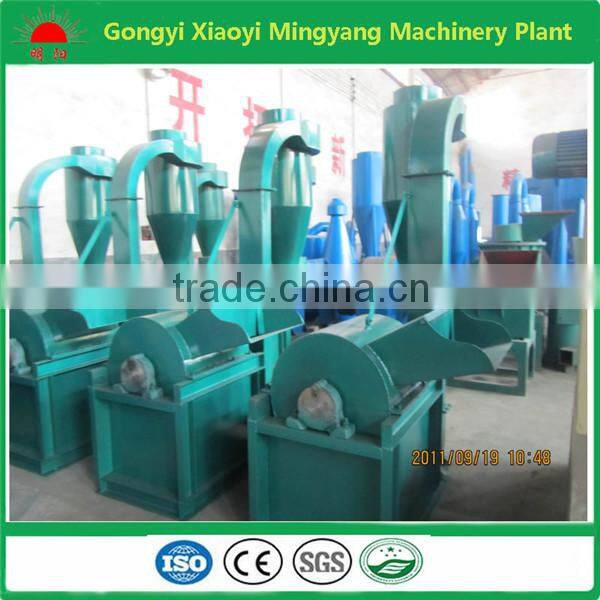

1. Crush the raw material into small pieces (diameter is about 3-5mm)

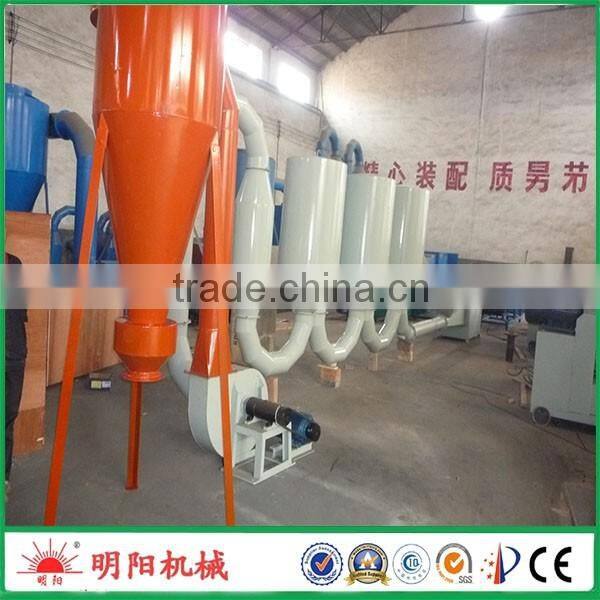

2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feed let of briquette machine
4. Produce the briquette stick from biomass material without any additive
5. Carbonized the briquette stick
raw material of the BBQ wood sawdust charcoal briquettes making machine could be :
Almost any biomass can be briquetted. Briquetting plants set so far in India are using Saw Dust, Bamboo dust, Bagasse, Cotton Stalk, Coffee husk, Groundnut Shell, Mustard Husk/Stalk, Pine Needles, Rice Husk, Sugar Mill Waste, Jute waste, Coir pith and other wastes & residues like Castor Shell, Red Gram Stalk, Tobacco stem, Tea Waste, Sander Dust, Tree Bark, Wild Grasses & Shrubs and Sander dust etc. can be also be briquetted individually or in combination without using any binder.
wood briquette machine ( support machine of the charcoal making machine)

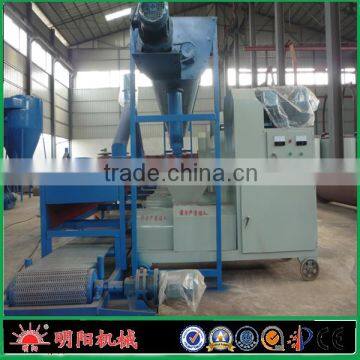

1.introduction of the wood briquette machine ( the support machine of the charcoal making machine)
the wood briquette extruder machine is designed to press wood waste into bar of diameter50- 80mm and length 45-50cm.
If you need large capacity, one single machine can not meet your need, you can choose several sets of single machine, or use the automatic production line, the automatic production line have a large capacity ( from 800kg-2500kg/h),and it will save many workers and cost.
Our automatic line include the main machines and auxiliary Machinery .the main machine (several sets of single briquette machine) Auxiliary machine (material distributor, screw conveyor, belt conveyor, smoke disposal system, cool conveyor.
There are two types machine
(1)Single machine
If the capacity you need is 120-450kg/h, you can choose one single machine, about the single machine, we have six types.
Model |
Capacity kg/h |
Power kw |
Material temperature |
Weight kg |
Packing dimension mm |
ZBJ50-9 |
120-220 |
11-15 |
8-12% | 550 |
2200×600×1300 |
ZBJ50-C |
350-420 |
22 |
8-12% | 750 |
2700×700×1550 |
ZBJ60-9 |
220-250 |
15-18.5 |
8-12% |
650 |
2400×700×1350 |
| ZBJ70-9 | 280-340 | 18.5-22 | 8-12% | 780 | 2400×700×1400 |
| ZBJ80-9 | 320-360 | 22 | 8-12% | 850 | 2400×750×1400 |
| ZBJ90-9 | 380-450 | 30 | 8-12% | 980 | 2600×800×1500 |

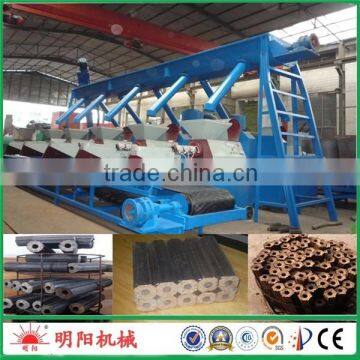

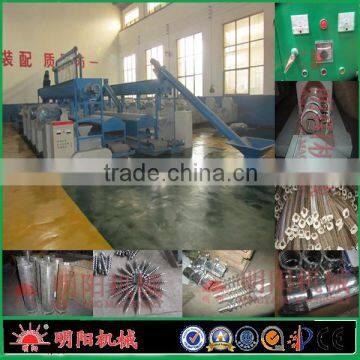

(2)Automatic Production line
If you need large capacity, one single machine can not meet your need, you can choose several sets of single machine, or use the automatic production line, the automatic production line have a large capacity ( from 800kg-2500kg/h),and it will save many workers and cost.
Our automatic line include the main machines and auxiliary Machinery .the main machine (several sets of single briquette machine) Auxiliary machine (material distributor, screw conveyor, belt conveyor, smoke disposal system, cool conveyor.
Model |
Capacity |
Power (kw) |
Dimensions, m |
Bar Diameter, mm |
Weight, MT |
ZBJ9-4-1 |
900-1100kg/h |
11*5+3+3+ 0.22 |
6.5*2.35*3.1 |
50,60,70 |
3.2 |
ZBJ9-4-2 |
1250-1500kg/h |
15*5+3+3+0.22 |
6.5*2.35*3.1 |
50,60,70,80 |
3.8 |
ZBJ9-5-1 |
1800-2200kg/h |
11*10+3*2+3+0.22*2 |
6.5*3.35*3.15 |
50,60,70 |
6.4 |
ZBJ9-5-2 |
2200-2500kg/h |
15*10+3 |
6.5*3.35*3.15 |
50,60,70,80 |
7.5 |
2. the final product of the wood briquette machine ( the support machine of the charcoal making machine)
The final bio-fuel briquette is made by the advanced biomass briquetting machine. Almost all type of Agro-Forestry waste can be used, After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole
through the body.
As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields :
Boilers : It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..
Furnace & Foundries : It can be used for metal heating & melting (where melting point is less than 1000d/cel.)
Brick Kilns : It is the total, substitute of steam coal.
Residential & Commercial Heating : For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.
3. working principle of wood briquette machine ( the support machine of the charcoal making machine)
Using the intrinsic attributes of the wood material, by spiral extruding at high temperature, under high pressure, wood element in wood material becomes plastic and makes the fine fiber combine, and then stick solid fuel is formed.
carbonization stove ( support machine of the charcoal making machine)
The gas flow type wood charcoal carbonizing stove includes external stove, three inner stoves , and the 3ton hoisting tools.
After one inner stove finishes carbonization, the worker can hoist the inner stove out and leave it self cooling naturally. Meanwhile, the worker can put another inner stove into the external stove for carbonization. As u see, the gas flow type carbonizing stove is able to work consentaneously with remarkable production efficiency. In a word, the gas flow type carbonizing stove is the ideal choice for mass production of charcoal.
technical data
| specification | Gas flow carbonization stove |
| Carbonizing speed( capacity ) | 2-3ton/day |
| Power | No power |
| Weight: | 4.8mt |
| Temperature in the stove, ° C | 480 |
| Size | 2.2(height ), 1.95 meter |
| Operation | One people can control 2-3set, but need the crane for help |
| Environment projection | Totally No pollution, no smoking |
| Time | This type have three inner stove, when one inner stove finished ( 8hours ), use the crane lift the inner stove out let it cooled naturally, at the same time, lift the other one in, 3 inner stove can work continuously. 24 hours can carbonizing 3 inner stove |
| Transport | The three inner stove can be put in the outer stove together, save a lot of space, |
| energy consumption | 20-30kg firewood or 15kg liquid gas. This type will save 30% freight |

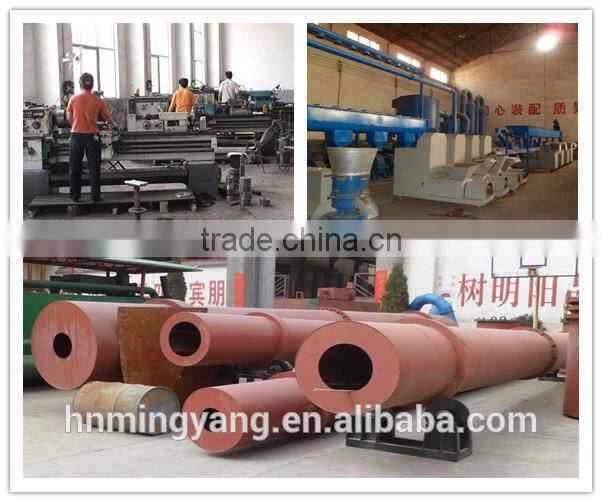

Gongyi Xiaoyi Mingyang Machinery Plant are
1.established in 2000, after 15 years development, now the coampany have two manufacturing bases
2. covered an area of 10000 squre meters,currently has 118 employess, devide to 7 deparment,
3 have designed and produce 6 production line ,more than 150kind of machinery, and awarded 5 patent in Chine
4. the products are widely accepted in both domestic and world market,exported to more than 150 countries
5. the company is enlarged to make room for high-tech automatic production euipment for meet the market requirment,
main machine include:
Charcoal / Biomass Briquette Plant for Agro-Forestry Wastes
Wood Pellet Mill / Feedstuff Pelletizing Plant
oil press machine
For the single machine, we use the plywood cases for packing, and for the whole container machine, we will ask the shipping company send one container to our factory and we will loading ourself, to make sure the machine are carefully loading and delivery
IF you need help, please feel free to contact with me
Sales Manager: Sara yang
Mobile: 008615039052280
Skype: sara666818
whatsapp 008615039052280
wechat : 008615039052280
