One Color full automatic EVA sole Injection moulding Machine
Feature:
1.It's product range includes EVA slipper,sandals,clogs,sport protectors and various kinds of shoes and shoe accessories.
also make EVA wheel an so on.
2.The foaming EVA injection moulding machine is fully automatic except taking out product.
3.It is PLC controlled,and insure the quick and exact terms of production.

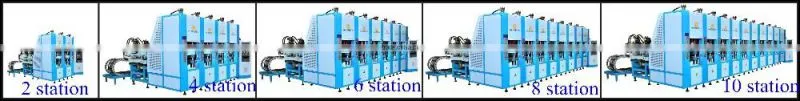

4.1 station can put 2 pair mould,1 mould 1pair,we can do 2/4/6/8/10 station as per our client's requirement.
Specification EVA slipper machine HM-128-6
Items |
UNIT |
HM-128 |
Work Stations |
stations |
6 |
Clamping Force |
tons |
180 |
Mould Space |
mm |
550*290*2 |
Opening Stroke |
mm |
350 |
Screw Diameter |
mm |
65*2 |
Injection Capacity |
cc |
1050*2 |
Injection Pressure |
kg/cm² |
1000 |
Injection Speed |
cm/sel |
10 |
Screw rotate speed |
r.p.m |
0-185 |
Temperature Control |
point |
4 |
Heating of Barrel |
KW |
14 |
Heating Power of Moud |
KW |
72 |
Motor |
KW |
18.5*2 |
Total Electricity |
KW |
123 |
Machine Dimension |
mm(L*W*H) |
7800*5000*2700 |
Machine Weight |
kg |
19000 |
One Color full automatic EVA sole Injection moulding Machine
One Color full automatic EVA sole Injection moulding Machine
We will install the machine for you in your factory.
We will teach you how to produce the products with machine,mold and material.
including the machine operation,mold design suggesions and raw material formula.
We supply 24 hours mobile and skype video call service and solve the problem on time.
We supply the longest guarantee period in this industry,1 year and 3 month.
We also can share our successful experience in market promotion.
Dongguan Honking Machinery Equipment CO.,LTD is a professional manufacturer of shoes machine and related equipments.
We have been do this business for more than 10 years,with a strong professional overseas sales team and experienced engineers.
In order to provide a better services for our customers,we have established 8 office agency in china.
Our Overseas Sale Team
We have a strong professional team with various experiences.
Our booth:
