Home > Security & Protection > Access Control System > Access Controller > Waterproof Time Attendance Recorder and Access Controller

Waterproof Time Attendance Recorder and Access Controller

Name: Waterproof Time Attendance Recorder and Access Controller
Brand: Pegasus, Pongee
SKU: 104852995
Availability: InStock

Waterproof Time Attendance Recorder and Access Controller thumbnail-1

Waterproof Time Attendance Recorder and Access Controller photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Pegasus, Pongee

Model Number:

PP-36

Contact Supplier Request Quote Chat Now

Pongee Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Keelung Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Pegasus, Pongee

Model Number PP-36

Waterproof time attendance recorder and access controller

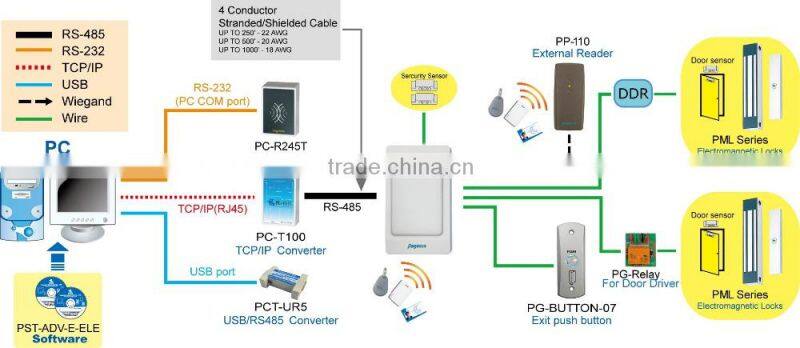

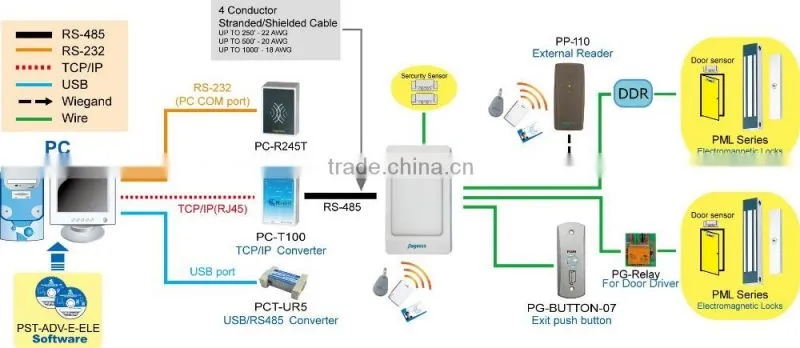

System configuration

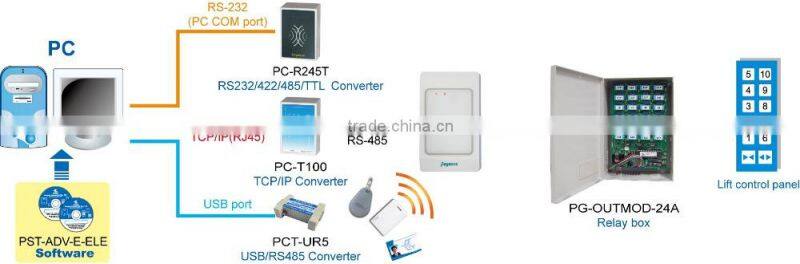

Lift access controller system

Product Description
•PP-36 is an intelligent time recording terminals designed to meet variant applications in time attendance and access control, lift control & ARM/DISARM security requirements. Each terminal can be operated independent simply or through PC/Internet adapter PC-T100 to fulfill the multiple doors access system. The recording terminal includes nearly all the necessary functions for time recording and access control with bountiful manual & PC executed commanded functions as well as friendly operation commanded for manual operation.

Features
Features for time recording application:
•Selectable batch or real time operation mode.
•79 duty codes, duty name defined by PC.
•Totally 192 alarm schedules (8 schedules per hour) dry contacts output for periodic belling.
•Could collect data through PC by real time or one by one events or massive block dump.

Main features for access control application:
•System parameters and personal access map can be downloaded by PC.
•The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.
•Excellent multiple operation modes :(1) Card only (2)Free access (3) Automatic operation mode by time zones.
•Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC. Single / block range card number or by directly reading card thru. learning mode.
•Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.
•With complete door release, held monitoring and intruded alarm period and error trials.
•Supports 8/24/48/64/96 floors lift access control.
•Full APB (anti-passback), time zone.
•Could dump all personal map in system by single PC.

Specifications
•Dimensions: 118(L) x 75(W) x 17(H)mm
•Weight: Net weight:98g ± 5 % Gross weight:204g ± 5 %
•Power input: DC 12V±10%
•Power consumption 25mA~60mA(not include power requirement for lock & alarm)
•Transmission rate: Default 9,600 bps N,8,1(2,400/4,800)(19,200bps/38,400)
•Operating temperature: 0℃ ~ 70℃
•Operating humidity: 10%~90%
•Waterproof: Yes
•Serial interface: RS-485
•Serial output
1. For connection with serial printer.
2. To drive DDR (digital door relay) for secure assess control function.
3. To drive 8/24/48/64 relay output modules for lifts access control
4. Bountiful application functions requested by customer
•Events/ Card capacity by series
(1) K Series: 1,000 card capacity,500 events.
(2) L Series: 2,000 card capacity,1,000 events.
(3) M Series: 30,000 card capacity,10,000 events.
(4) N Series: 11,000 card capacity,32,000 events.
(5) P Series: 11,000 card capacity,8,000 events.
(6) X Series: 32,000 card capacity, 32,000 events.
Other capacity combination requested by order
•Card standard: EM 125KHz / 13.56MHz(ISO 14443A or ISO 14443B)

(Depending on order)
*Support customized card.
•External reader: With one port for external Wiegand (26/34 bits definable by command) & ABA input(by order)

How to order

PP-36L/M0R5:13.56MHz Prox. Controller & Reader 2000 cards, 1000 events, RS-485

PP-36L/M8R5: 13.56MHz Prox. Controller & Reader, Pegasus Key, 2000 cards, 1000 events, RS-485

PP-36L/NR5:EM Prox. Controller & Reader, 2000 cards, 1000 events, RS-485

PP-36L/PR5:Pegasus Prox. Controller & Reader, 2000 cards, 1000 events, RS-485

PP-36X/NR5:EM Prox. Controller & Reader, 32000 users,32000 events, RS-485

PP-36L/N-HEX:EM Prox. Controller & Reader, 2000 cards, 1000 events, Card number:Hexadecimal, 64bit

We reserve the right to change the specification without prior notice or obligation!
