Home > Transportation > Container & Fittings > Container Fitting > Infrared Sensor Switch Door Release Exit Button
Infrared Sensor Switch Door Release Exit Button
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Pegasus, Pongee
Model Number:
PBT-09/IRA
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Infrared Sensor Switch No Touch Door Release Exit ButtonNegotiableMOQ: 1 -
Blue LED Door Release Push ButtonNegotiableMOQ: 1 Piece
-
Zinc Alloy Door Release Push ButtonNegotiableMOQ: 1 Piece
-
Zinc Alloy Blue LED Door Release Push ButtonNegotiableMOQ: 1 Piece
-
Zinc Alloy Door Exit Push Button With LEDNegotiableMOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
Pegasus, Pongee
Model Number
PBT-09/IRA

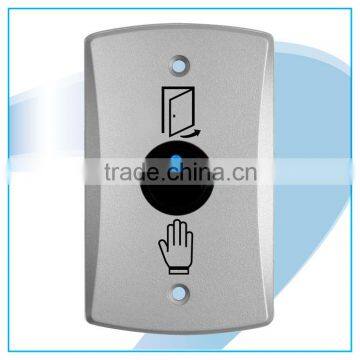

Infrared Sensor Switch Door Release Exit Button
Features
•Built-in micro controller for decoding infrared signal to avoid interference from the noise.
•With bi-color status LED (Power on: Red/ Proximity: Blue).
•Adjustable proximity range: 3~10cm (Default: 10 cm), depending on the reflection rate of different object.
•Support adjustable opening time 0.5~20 Sec. (Default: 0.5 Sec.) or latched ON or OFF output.
•With N.C. and N.O. output.
Specifications
| •Dimensions | 5(plate)/34(total depth) x 75(W) x 115(L)mm |
| •Net Weight | 120g ± 5% |
| •Hole distance | 83mm |
| •Material |
Face plate: Zinc alloy IR sensor: Polycarbonate fire & UV proof material |
| •Waterproof | IR sensor:IP65 |
| •Power supply | DC 10V~16V 1A |
| •Relay contact rating: | 1A@ 30 VDC |
| •Current | DC 12V |
|
Standby Current: 25mA±5% Operating Current: 35mA±5% |
|
| •Operating temperature | -20℃ ~ 75℃ |
| •Life |
Mechanical: 3,000,000 cycles Electrical: 200,000 cycles |

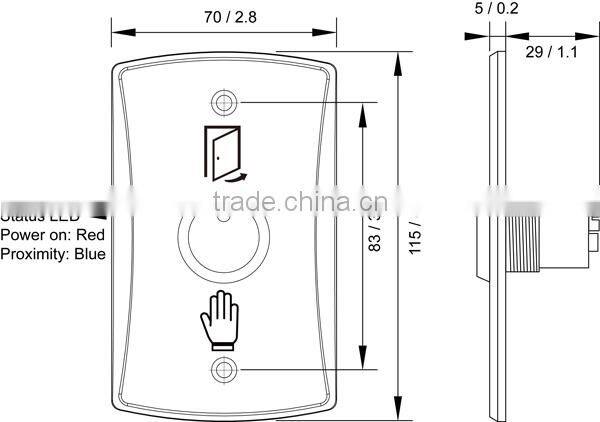

Dimension: Unit(mm/inch)

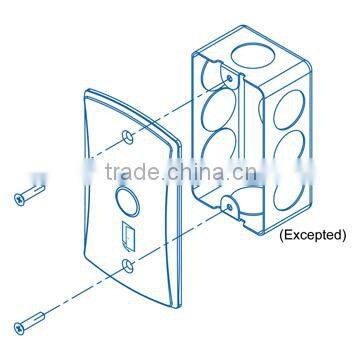

How to assembly
We reserve the right to change the specification without prior notice or obligation!
