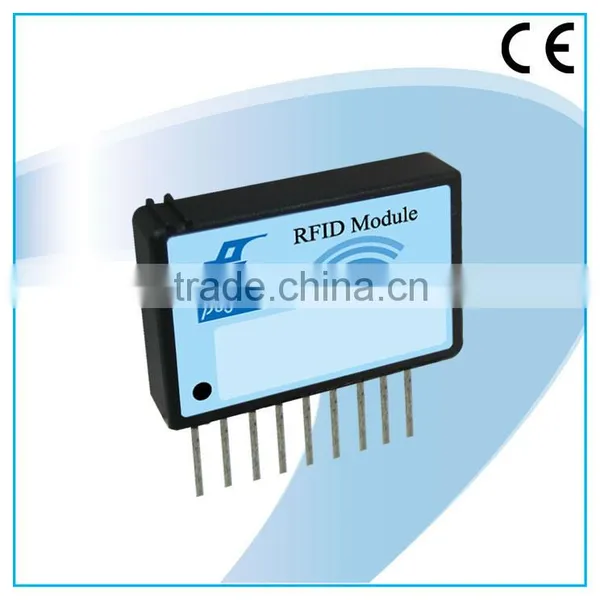

RFID 125KHz EM card read module

RFID 125KHz EM card read module

Features
•AM 125KHz contactless proximity reading RFID module specially for EM cards.
•Either Wiegand 26 or ASCII(TTL) output determined by pin assignment.
•Read only for EM cards, and the data are sent by Data 0 and Data 1.
•Read for TEMIC cards, and the data are sent by Data 0 and Data 1.
•Lower cost with effective performance.
•SDK simplifies various RFID product developments.
•Supply flexible ODM/OEM.
•Compact size.

Specifications

•Dimensions:27(L) x 17(W) x 7(H) mm

•Weight: 6g ± 5%

•Transmission rate: 9,600 bps, N,8,1

•Read range:Depending on tag size, tag type and antenna size

•Operation frequency: 125KHz(700uH+2.2nF)/(455uH+3.3nF)(Optional)

•Operating temperature:-10℃~75℃

•Storage temperature:-20℃~85℃

Application field

Dimensions: Unit(mm)

How to order

PXEM-BW-01: RFID 125KHz EM read module, Wiegand 26 bits,Without antenna, 2.2nF capacitor embedded, Should be pair with 700uH antenna.

PXEM-BWS-01: RFID 125KHz EM read module, Wiegand 26 bits, ASCII, Without antenna, 2.2nF capacitor embedded, Should be pair with 700uH antenna.

PXEM-BWS-01C:RFID 125KHz EM read module, Wiegand 26 bits, ASCII, Without antenna, 2.2nF capacitor embedded, Should be pair with 700uH antenna, The card continued to present every 2 seconds.

PXEM-BW-02: RFID 125KHz EM read module, Wiegand 26 bits,Without antenna, 3.3nF capacitor embedded, Should be pair with 455uH antenna.

PXEM-BWS-02: RFID 125KHz EM read module, Wiegand 26 bits, ASCII, Without antenna, 3.3nF capacitor embedded, Should be pair with 455uH antenna.

PXEM-BWS-02C: RFID 125KHz EM read module, Wiegand 26 bits, ASCII, Without antenna, 3.3nF capacitor embedded, Should be pair with 455uH antenna, The card continued to present every 2 seconds.

 We reserve the right to change the specification without prior notice or obligation!
