Home > Industrial Equipment & Components > Ventilation Equipment > Blowers > 550W Centrifugul Blower for Laser Machine
550W Centrifugul Blower for Laser Machine
US$ 37.5 - 45.5
MOQ: 100 Units
Key Specifications
Get Latest Price
Brand Name:
YongCheng
Place of Origin:
China
Model Number:
CZ-TD550
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
15 days
Related Products
Brand Name
YongCheng
Place of Origin
China
Model Number
CZ-TD550
Type
Inflatable Blower
Application
Air Blower
Rated Voltage
220W
Rated Power
550W
Power Source
Electric Blower
Pressure
Medium Pressure
Specifications
1) Voltage: 220V
2) Power: 550W
3) Frequency: 50Hz
4) with CE certificate

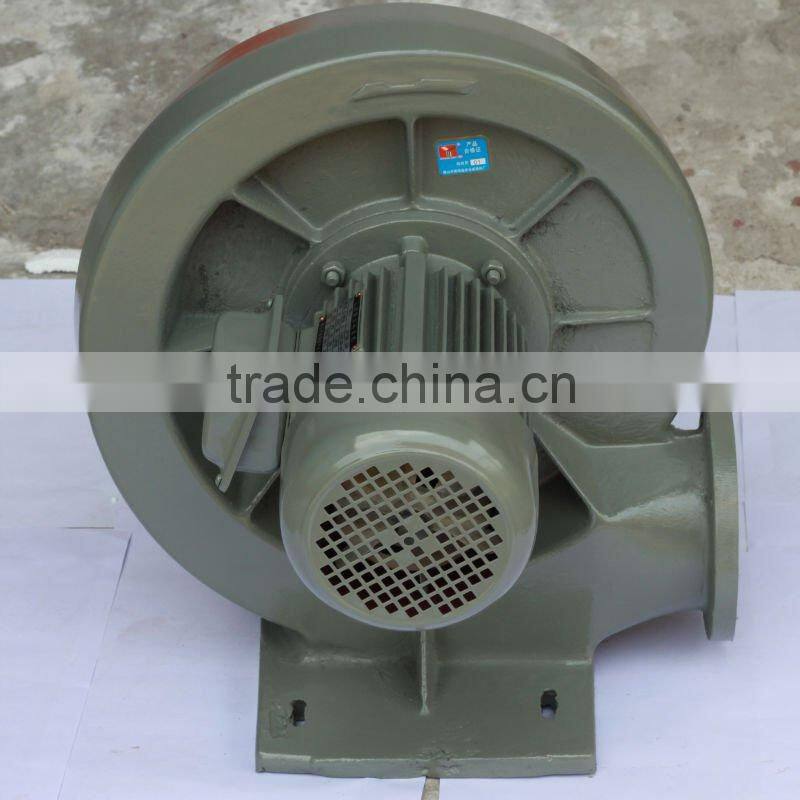

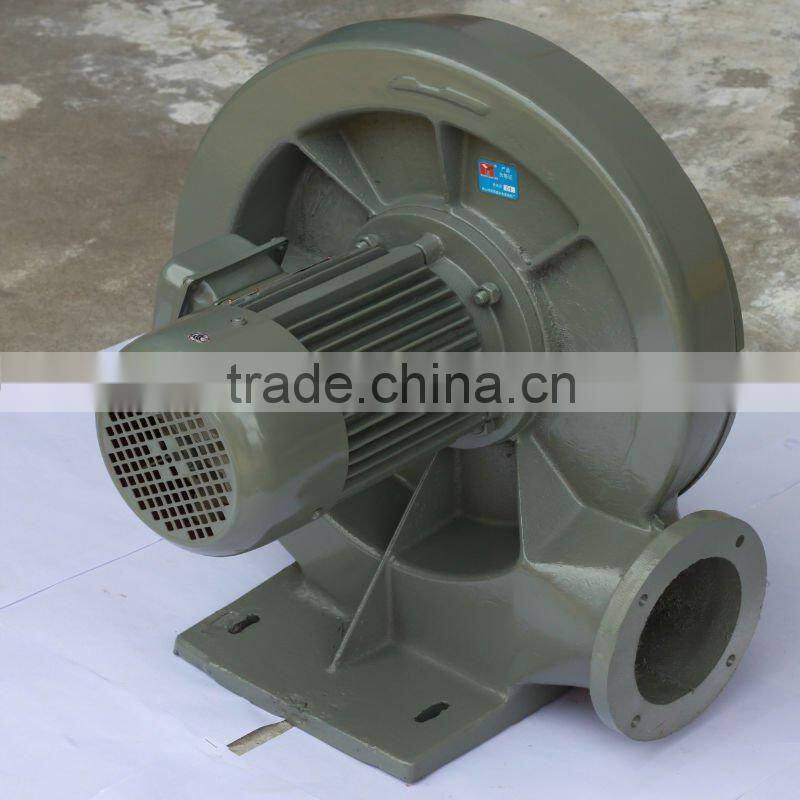

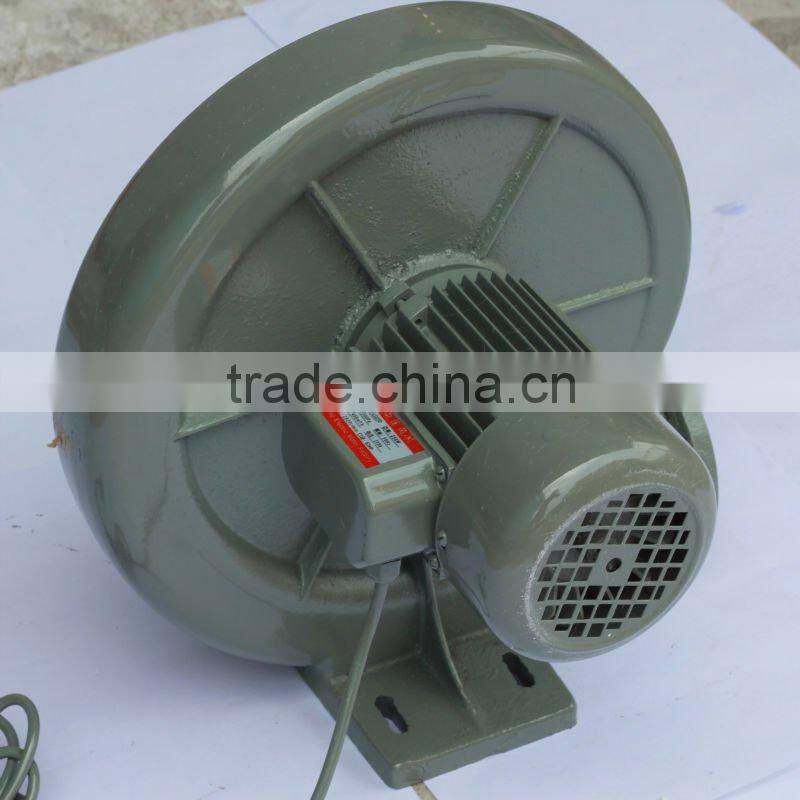

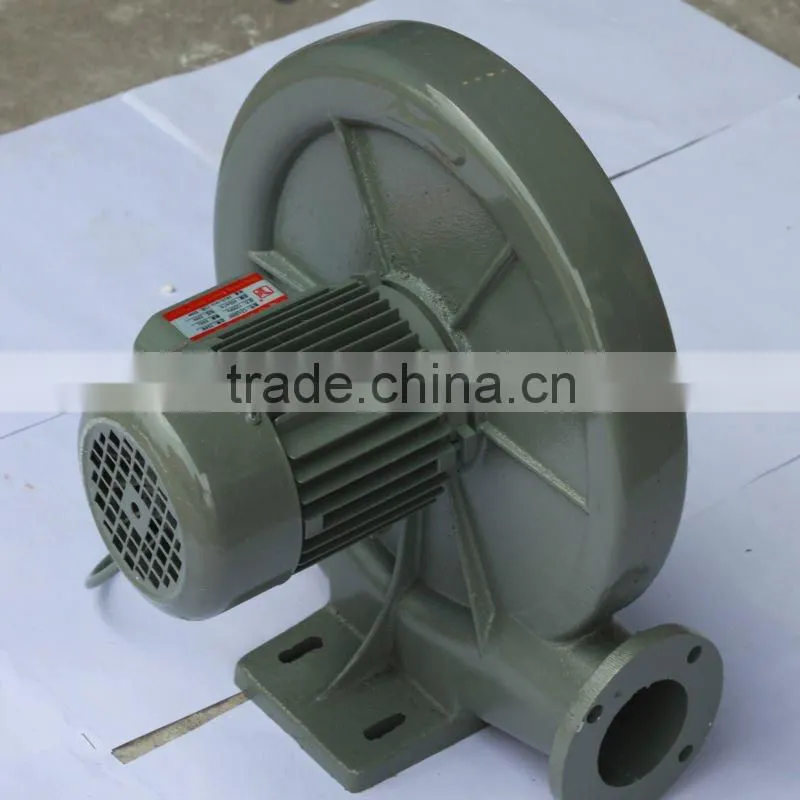

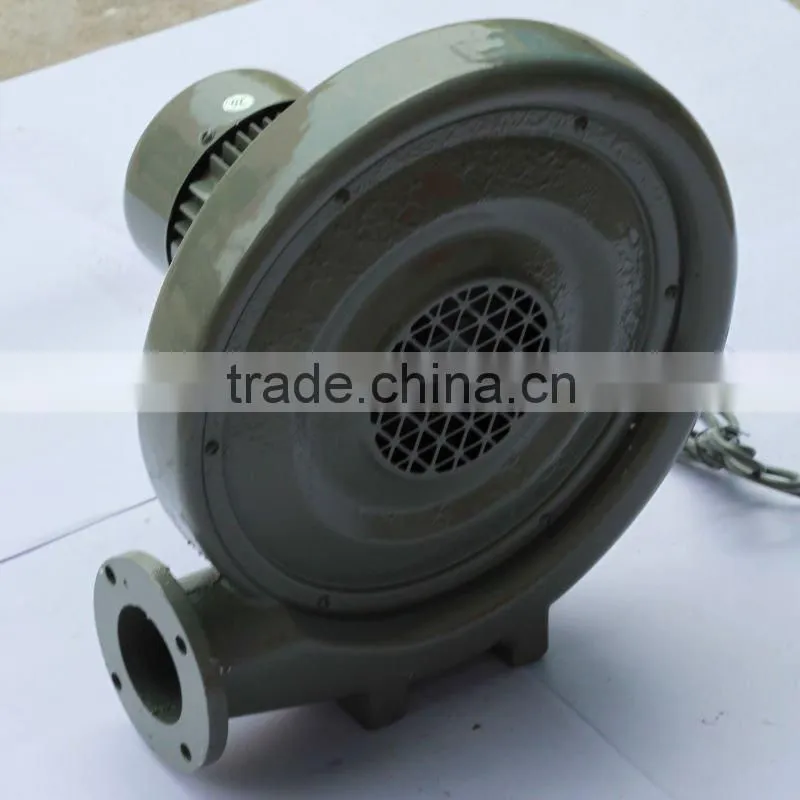

Blower
blower detailed characteristics:
1. Simple structure
2. portable operation
3. good reliability
4. high efficiency
5. convenient maintenance.
Our factory make Mechanical and Electrical Products since 1989. Unlike most factories in China, our technologies are mature, with better materials we used, our machines will last for a long time.
| Characteristic | |||||||
| Power (w) | Diameter of air outlet (mm) | Maximum air flow (m3/min) | Maximum Static Pressure (Pa) | Speed (rmp) | Noise(dB) | ||
| Iron blower series Types | |||||||
| YY6312 | 180 | 60 | 7.85 | 1114 | ≥2800 | ||
| YY6322 | 250 | 60 | 8.7 | 1260 | ≥2800 | ||
| YY7112 | 370 | 70 | 10.65 | 1420 | ≥2800 | ||
| YY7122 | 550 | 70 | 13 | 1680 | ≥2800 | ||
| YY8012 | 750 | 90 | 18.5 | 2100 | ≥2800 | ||
| YY8022 | 900 | 90 | 20.95 | 2350 | ≥2800 | ||
| Aluminium blower series Types | |||||||
| YY6312 | 180 | 65 | 8.26 | 1219 | ≥2800 | ||
| YY6322 | 250 | 65 | 9.57 | 1356 | ≥2800 | ||
| YY7112 | 370 | 75 | 12.35 | 1560 | ≥2800 | ||
| YY7122 | 550 | 75 | 14.56 | 1857 | ≥2800 | ||
| YY8012 | 750 | 95 | 19.8 | 2200 | ≥2800 | ||
| YY8022 | 900 | 95 | 22.15 | 2500 | ≥2800 | ||
| Y90S-2 | 1500 | 120 | 26.8 | 3000 | ≥2800 | ||
| Y90L-2 | 2200 | 120 | 30.2 | 3350 | ≥2800 | ||
| Intermediate pressure blower characteristic | ||||||||
| Diameter of air outlet (mm) | Flange dimensions (mm) | Under-chassis dimensions(mm) | Weight(kg) | |||||
| D1 | D2 | D3 | A | B | C | |||
| Iron blower series | ||||||||
| YY,YS63 | Φ60 | Φ10 | Φ94 | Φ113 | 65 | Φ10 | 6.4 | |
| YY,YS71 | Φ70 | Φ10 | Φ105 | Φ130 | 150 | 120 | Φ12 | 9 |
| YY,YS80 | Φ90 | Φ10 | Φ130 | Φ153 | 215 | 120 | Φ12 | 14 |
| Aluminium blower series | ||||||||
| YY,YS63 | Φ65 | Φ10 | Φ94 | Φ113 | 75 | Φ10 | 7.2 | |
| YY,YS71 | Φ75 | Φ10 | Φ105 | Φ130 | 150 | 120 | Φ12 | 11.4 |
| YY,YS80 | Φ95 | Φ10 | Φ130 | Φ153 | 150 | 140 | Φ12 | 16 |
| YS90 | Φ125 | Φ10 | Φ160 | Φ185 | 215 | 190 | Φ12 | 41 |
Refunds & Returns
We are happy to assist in reporting any damage or filing a claim for damage. If there any questions about damage or an item received, we will be happy to help you out- call us directly at (0086) 13690817141
