Help CenterInflatable Blower
Related Products
Specifications
inflatable blower1.voltage:220V
2.Frequency:50HZ/60HZ
3.Power:550W press:2100Pa
4.CE approved

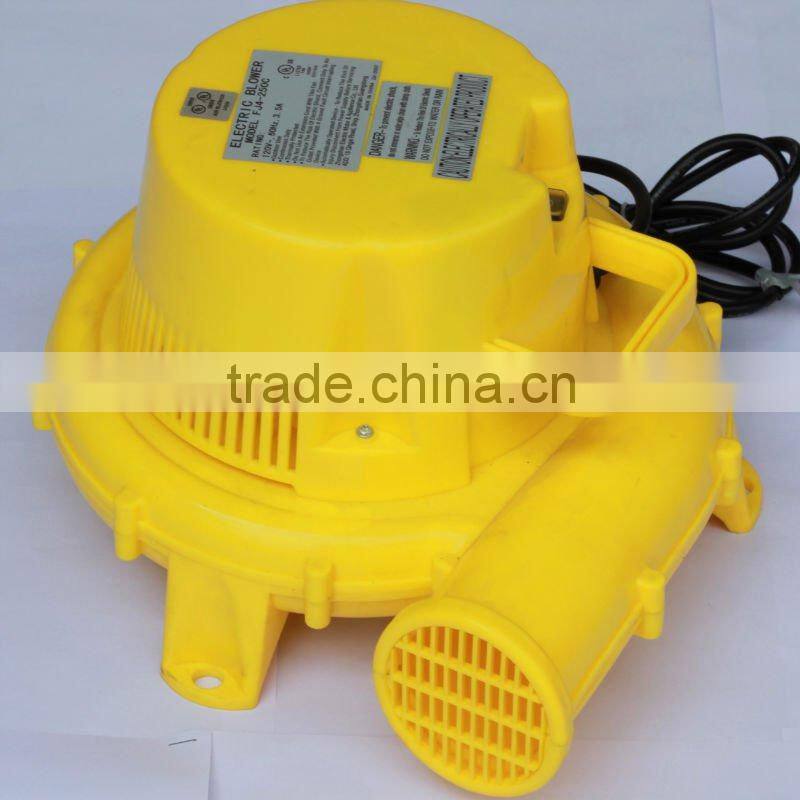

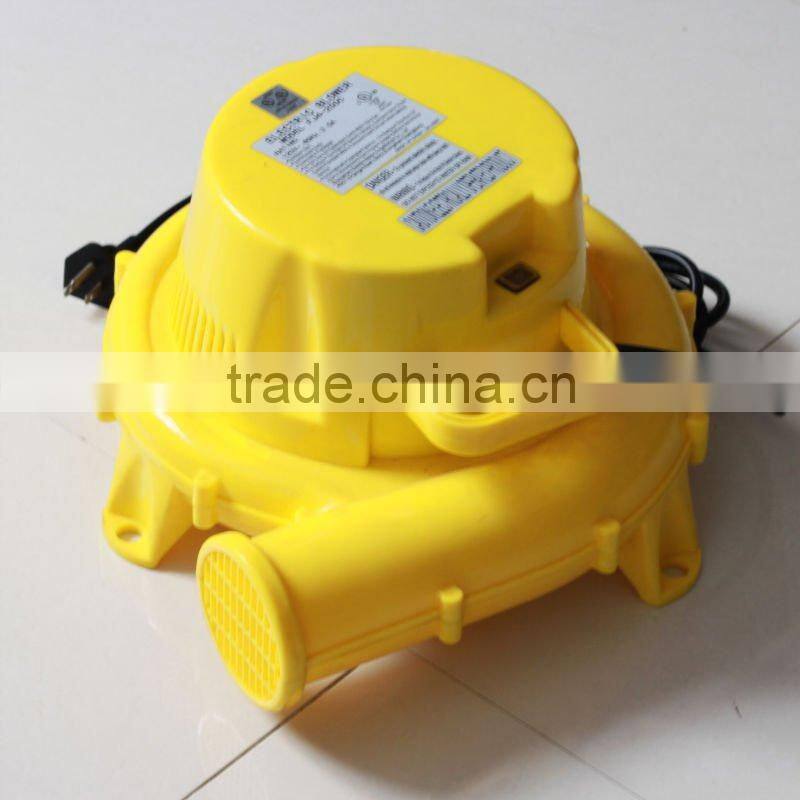

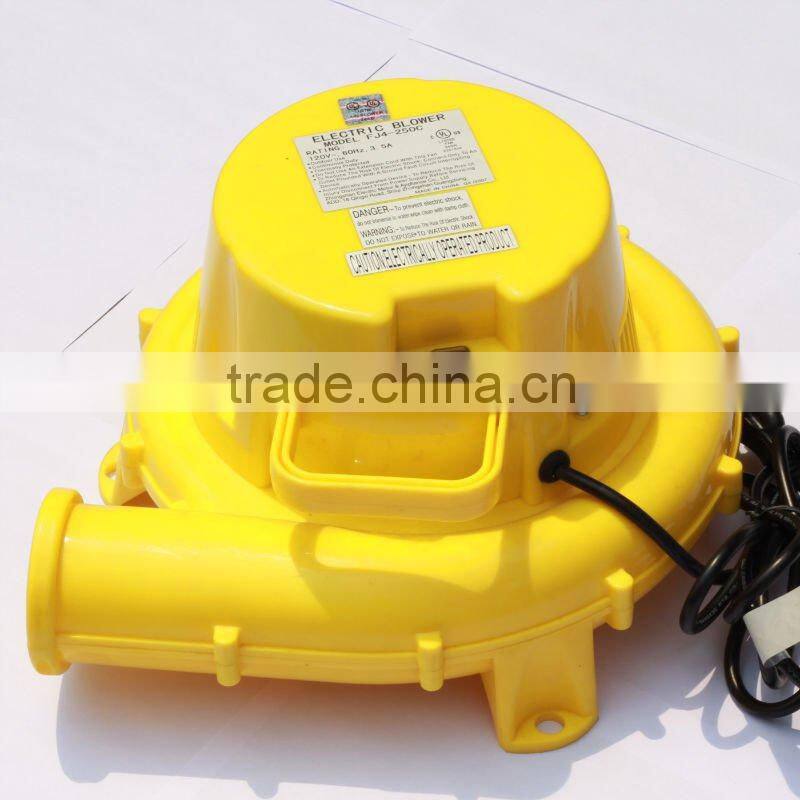

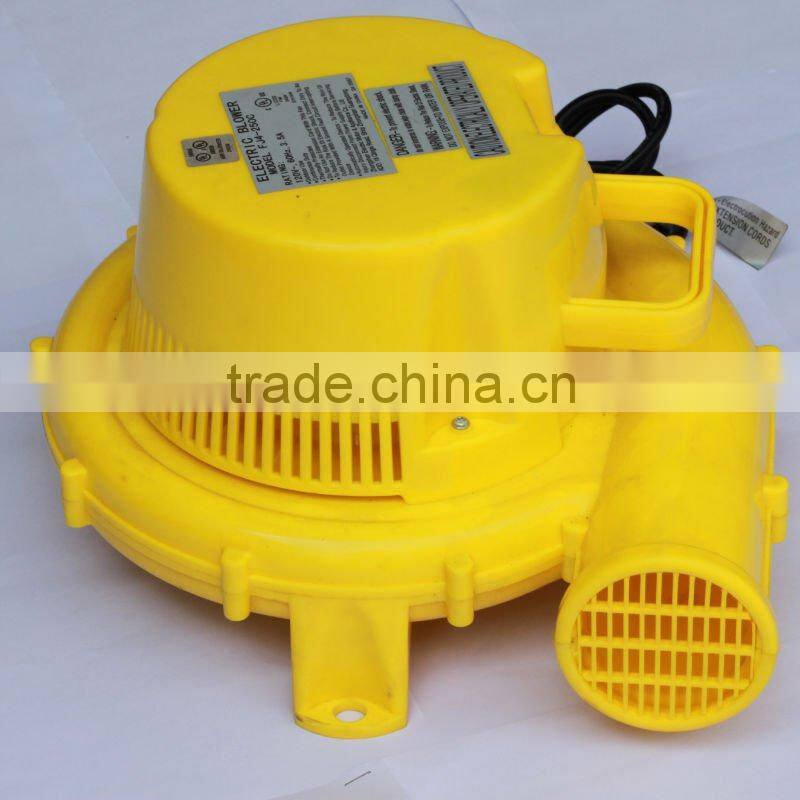

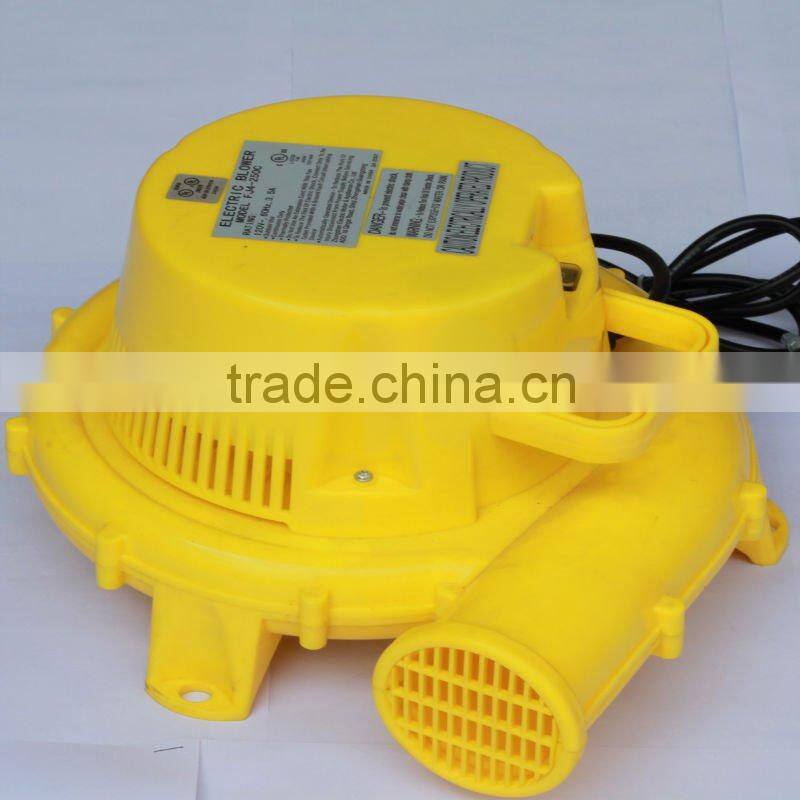

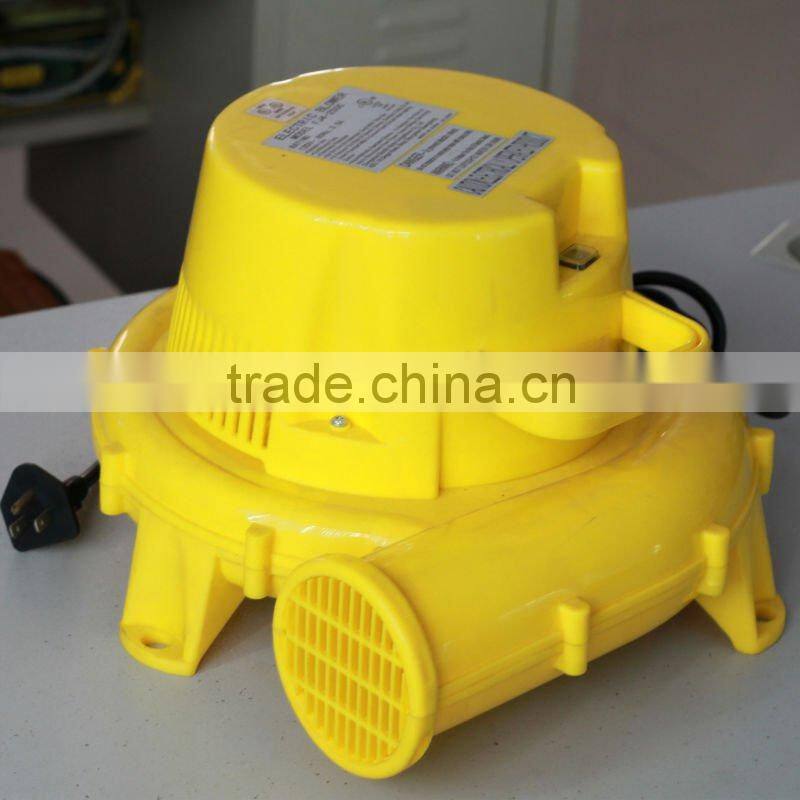

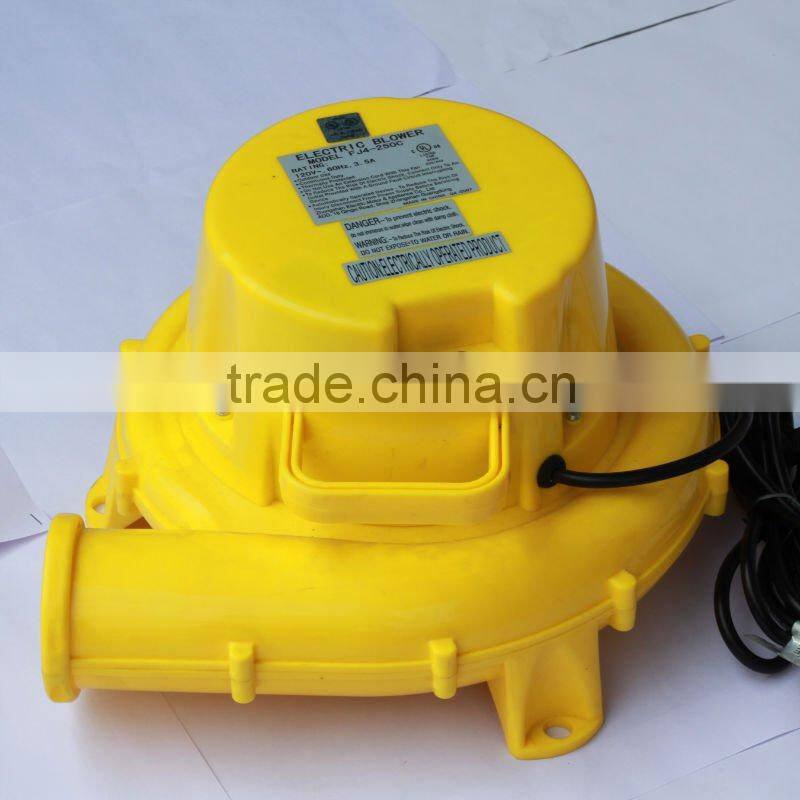

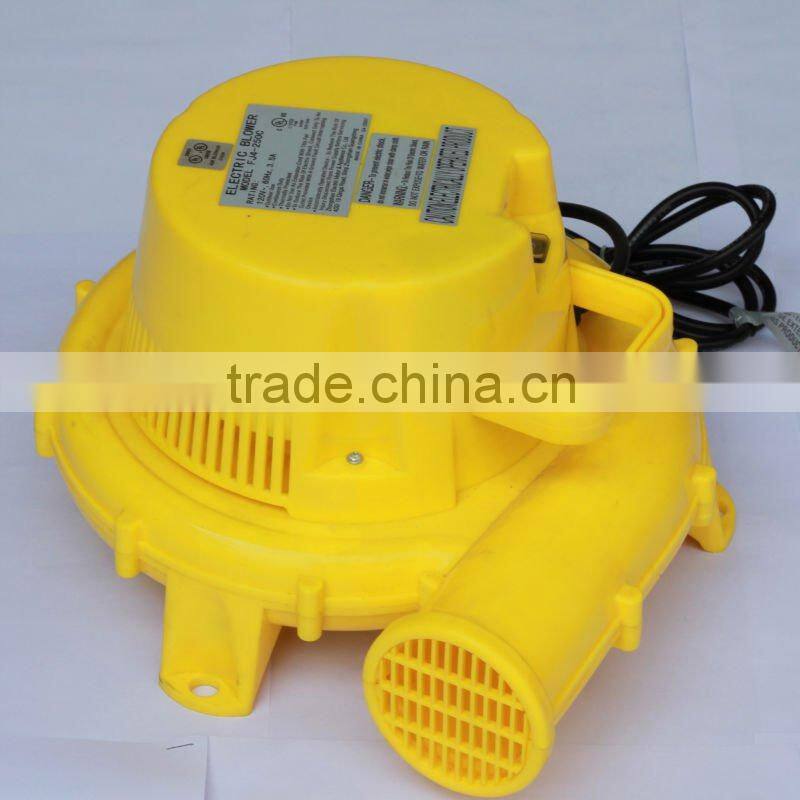

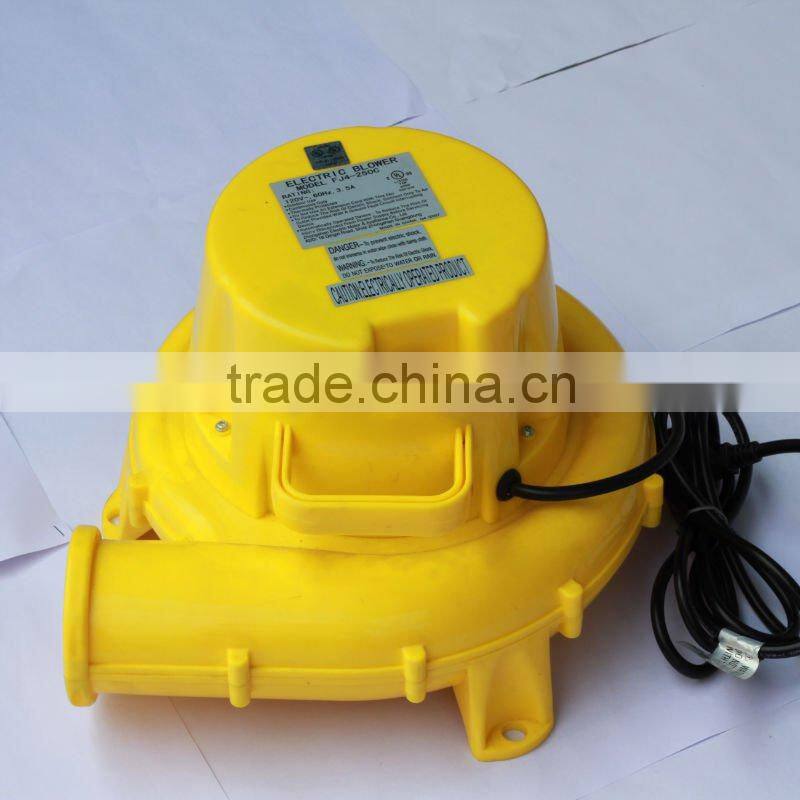

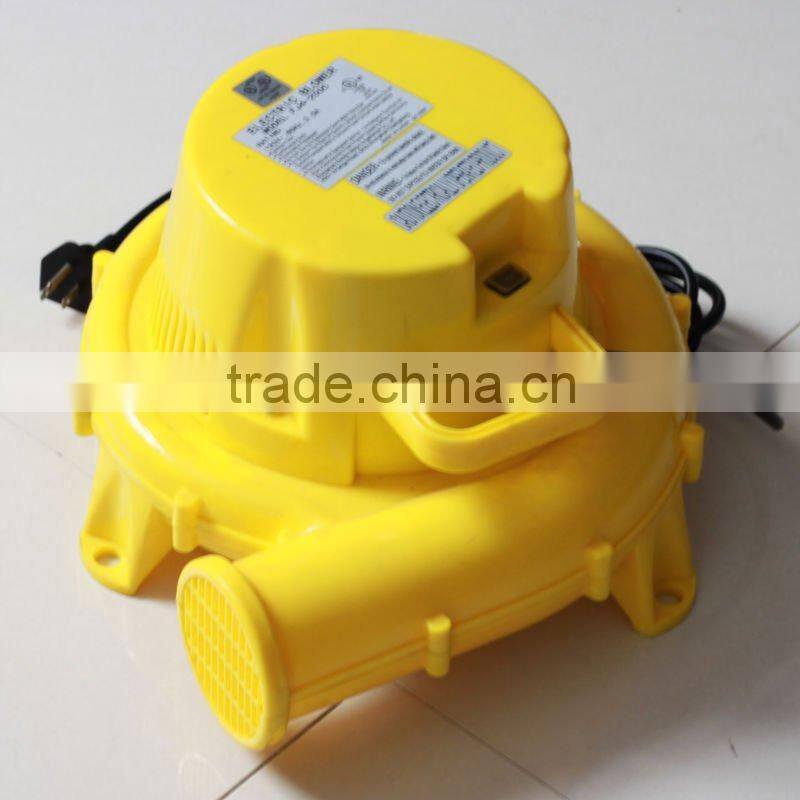

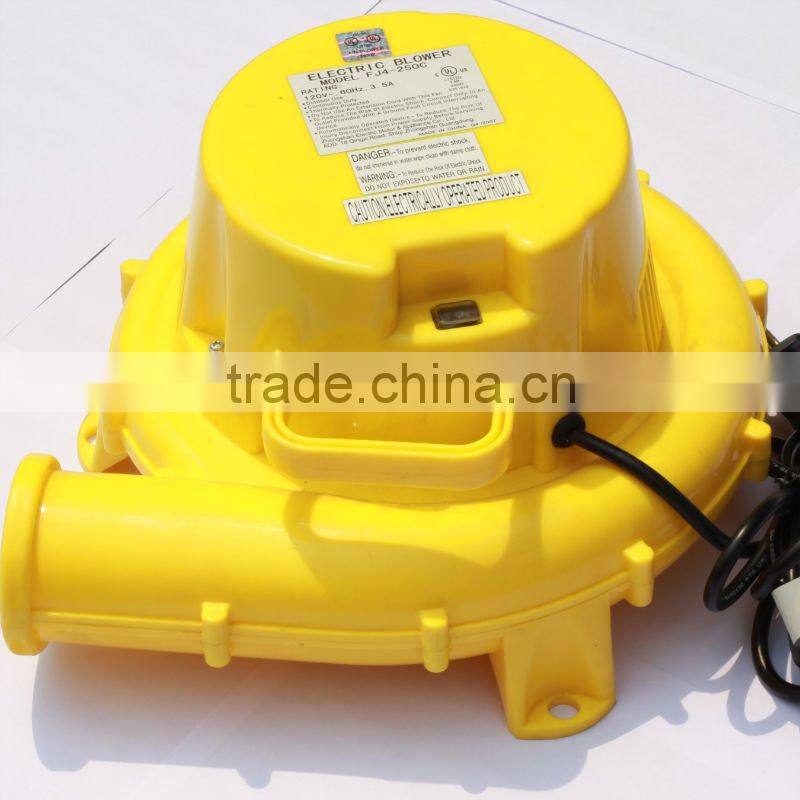

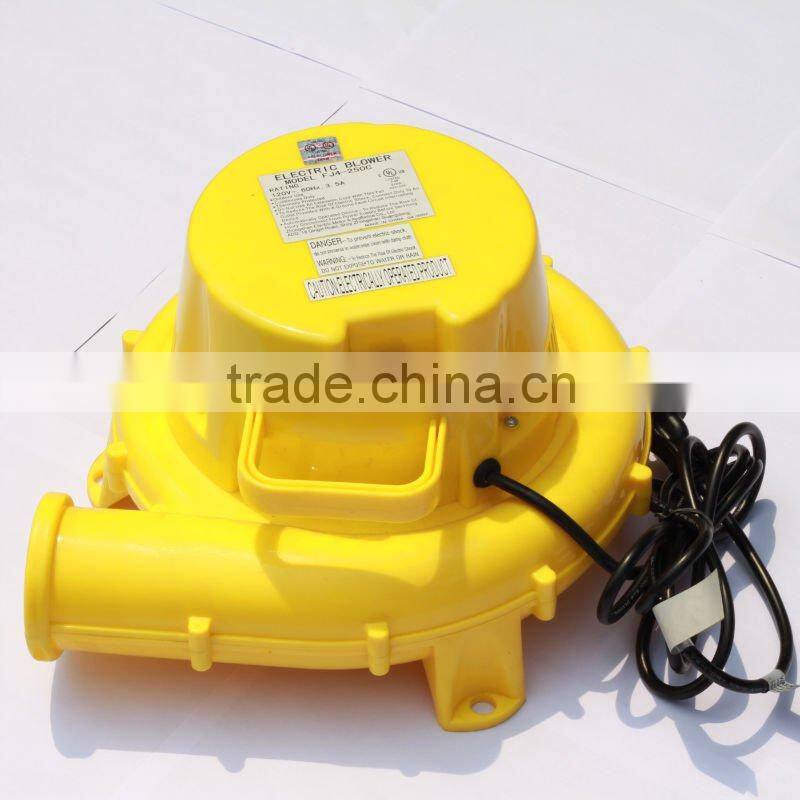

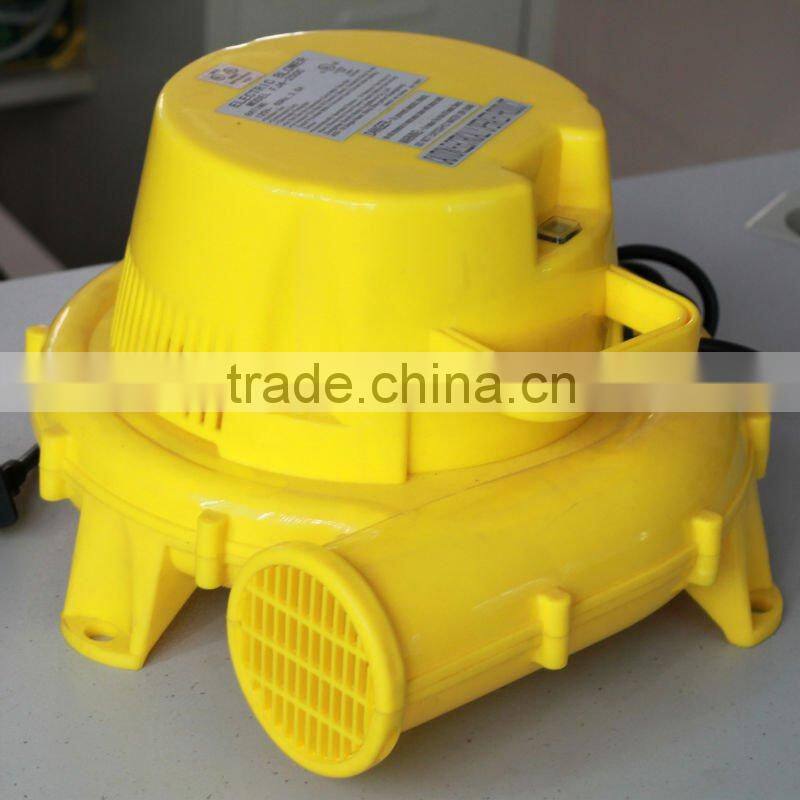

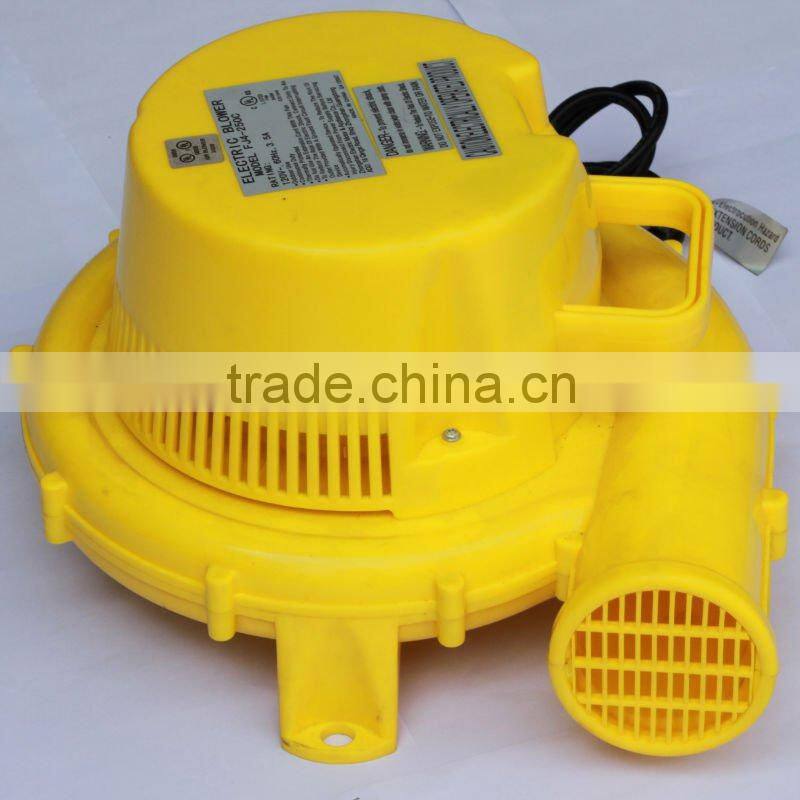

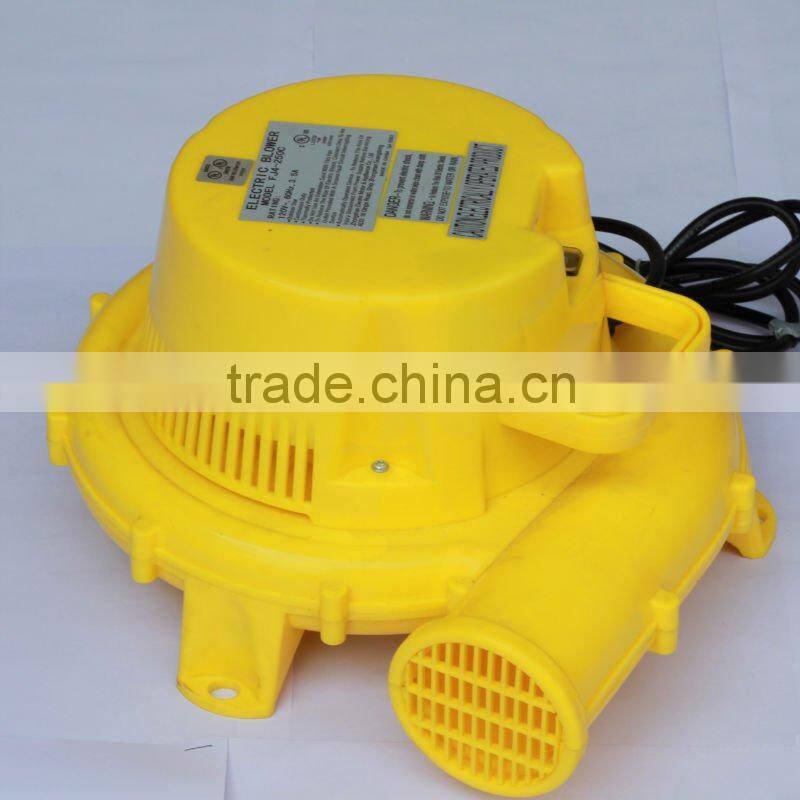

inflatable blower
1. Simple structure
2. portable operation
3. good reliability
4. high efficiency
5. convenient maintenance.
Our factory make Mechanical and Electrical Products since 1989. Unlike most factories in China, our technologies are mature, with better materials we used, our machines will last for a long time.
| Intermediate pressure blower characteristic | ||||||||
| Diameter of air outlet (mm) | Flange dimensions (mm) | Under-chassis dimensions(mm) | Weight(kg) | |||||
| D1 | D2 | D3 | A | B | C | |||
| Iron blower series | ||||||||
| YY,YS63 | Φ60 | Φ10 | Φ94 | Φ113 | 65 | Φ10 | 6.4 | |
| YY,YS71 | Φ70 | Φ10 | Φ105 | Φ130 | 150 | 120 | Φ12 | 9 |
| YY,YS80 | Φ90 | Φ10 | Φ130 | Φ153 | 215 | 120 | Φ12 | 14 |
| Aluminium blower series | ||||||||
| YY,YS63 | Φ65 | Φ10 | Φ94 | Φ113 | 75 | Φ10 | 7.2 | |
| YY,YS71 | Φ75 | Φ10 | Φ105 | Φ130 | 150 | 120 | Φ12 | 11.4 |
| YY,YS80 | Φ95 | Φ10 | Φ130 | Φ153 | 150 | 140 | Φ12 | 16 |
| YS90 | Φ125 | Φ10 | Φ160 | Φ185 | 215 | 190 | Φ12 | 41 |
| Characteristic | ||||||
| Power (w) | Diameter of air outlet (mm) | Maximum air flow (m3/min) | Maximum Static Pressure (Pa) | Speed (rmp) | Noise(dB) | |
| Iron blower series Types | ||||||
| YY6312 | 180 | 60 | 7.85 | 1114 | ≥2800 | <64 |
| YY6322 | 250 | 60 | 8.7 | 1260 | ≥2800 | <65 |
| YY7112 | 370 | 70 | 10.65 | 1420 | ≥2800 | <74 |
| YY7122 | 550 | 70 | 13 | 1680 | ≥2800 | <75 |
| YY8012 | 750 | 90 | 18.5 | 2100 | ≥2800 | <80 |
| YY8022 | 900 | 90 | 20.95 | 2350 | ≥2800 | <85 |
| Aluminium blower series Types | ||||||
| YY6312 | 180 | 65 | 8.26 | 1219 | ≥2800 | <64 |
| YY6322 | 250 | 65 | 9.57 | 1356 | ≥2800 | <65 |
| YY7112 | 370 | 75 | 12.35 | 1560 | ≥2800 | <74 |
| YY7122 | 550 | 75 | 14.56 | 1857 | ≥2800 | <75 |
| YY8012 | 750 | 95 | 19.8 | 2200 | ≥2800 | <80 |
| YY8022 | 900 | 95 | 22.15 | 2500 | ≥2800 | <85 |
| Y90S-2 | 1500 | 120 | 26.8 | 3000 | ≥2800 | <90 |
| Y90L-2 | 2200 | 120 | 30.2 | 3350 | ≥2800 | <95 |
Delivery
WHEN SHIPPED: Many times we can ship the same day we receive payment. To expedite shipping *please include your commercial shipping address with a contact phone number when you submit payment. Once we have confirmed shipping information, we can expedite shipping very quickly. Unless otherwise stated, we can ship within 24 hours of receiving your payment and confirmed shipping information.
Refunds & Returns
ARE RETURNS ALLOWED? All sales are final. Any damage during shipping must be reported at the time of delivery and noted on the bill of lading before signing for delivery. We are happy to assist in reporting any damage or filing a claim for damage. If there any questions about damage or an item received, we will be happy to help you out- call us directly at (0086) 13690817141
