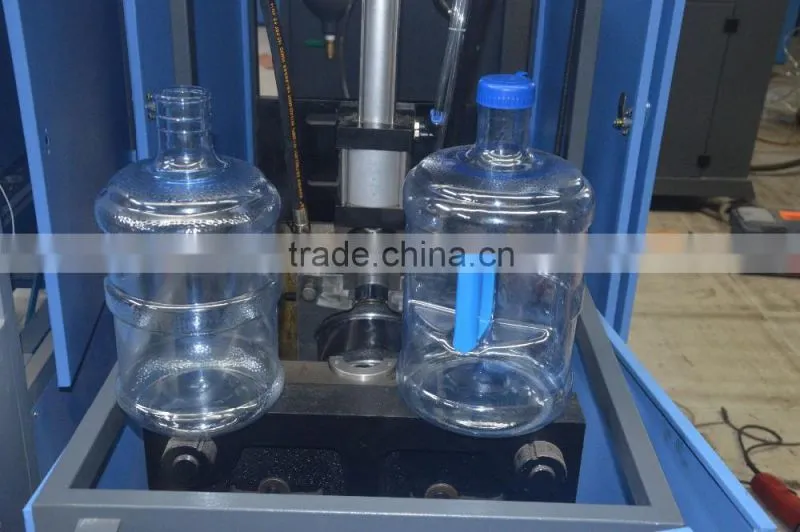

High quality semi automatic 17 liters PET bottle making machine
- 500 Set / Sets per Month
- NINGBO
- T/T
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PET |
Blow Moulding Type: | Stretch Blow Moulding | Automatic: | Other, Semi | Place of Origin: | Zhejiang, China |
Brand Name: | ZHENGGE | Model Number: | ZG-100 | Voltage: | 220V/380V/415V/440V/480V |
Power(W): | 20KW | Dimension(L*W*H): | 2200*700*2250mm | Weight: | 1500kg |
Certification: | CE | Warranty: | Lifetime Warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
20 liter oil bottle blowing machine

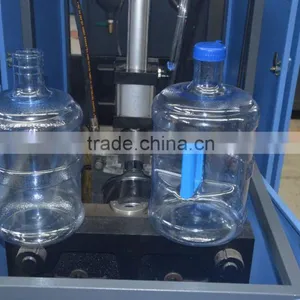

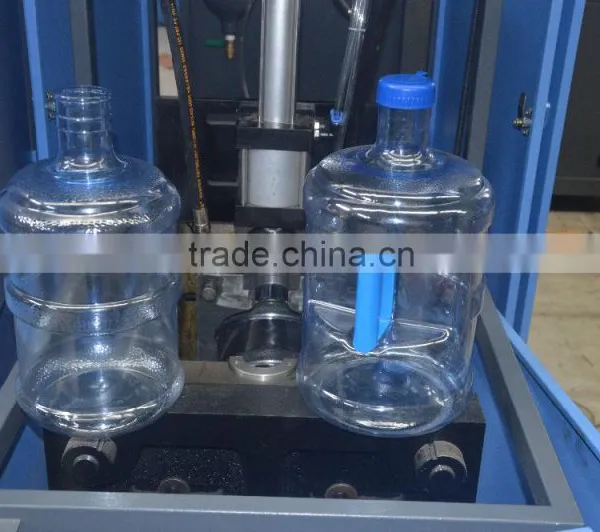

ZG100 PET blow moulding machine for large PET bottles is specially designed to produce 5-gallon PET container and 25L wide mouth jar. Its max output is up to 250 BPH for 5-gallon oil bottle and also could reach 120 bottles per hour for the one way used thick wall 5 gallon bottles.

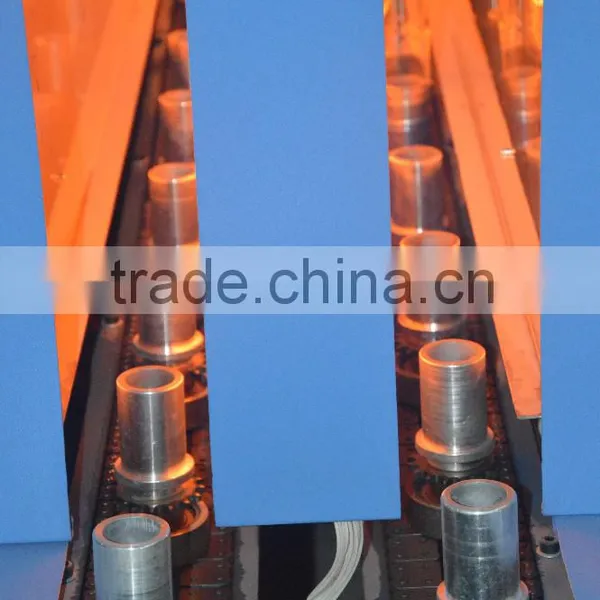

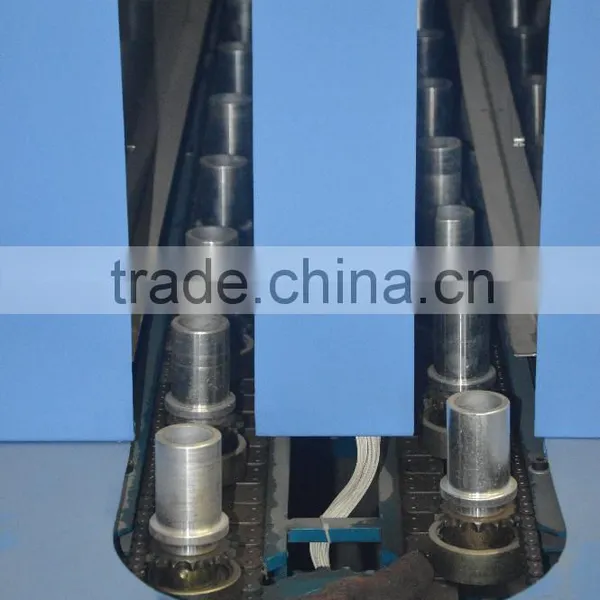

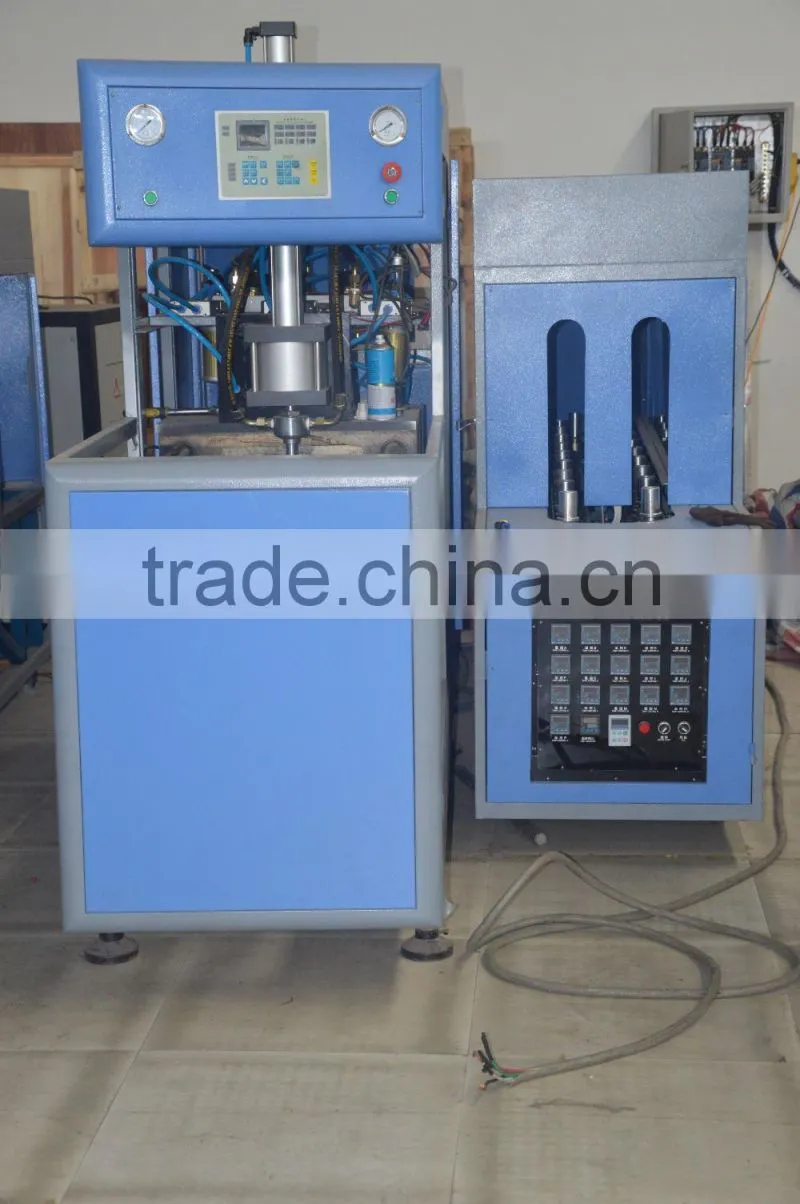

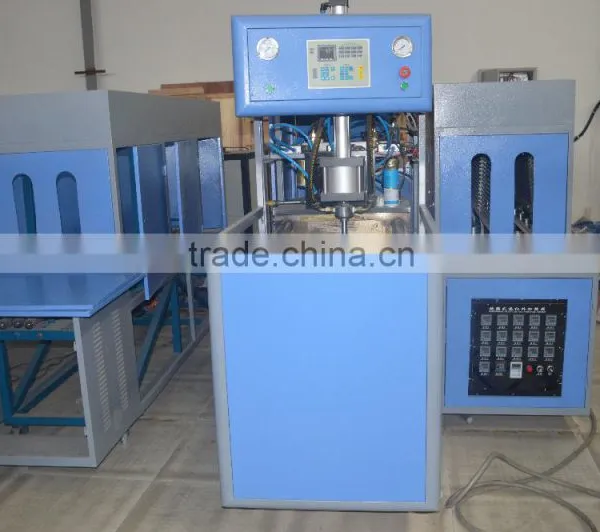

ZG100 PET blow moulding machine consists of main unit and rotary infrared heater. The ordinary quartz lamp cannot heat preform ideally because the preform wall is excessively thick. The infrared heater with high penetrative force can heat the inside and outside of preform simultaneously and keep preform in even heating, therefore high shaping quality.
1. Special design for PET Gallon Bottle up to 6 Gallon
2. Produce wide mouth jar up to 25 liter with neck size up to 200mm.
3. Using Infrared reheat units to achieve uniform heating throughout the wall of preform
4. Adopt special designed preform heating system to ensure the optimal heating effect for 730g thick-wall preform
5. Special designed fan-cooling system in the heating channels to keep the oven with constant temperature and ensure the preform can be heated completely.
6. Water cooling system ensures the quality of preform neck.
7. Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle
8. Use advanced PLC control system with counting function and time-control precision to 0.01second, and a use-friendly panel.
9. Equipped with special designed air storage units
10.Simple installation & startup adjustment
20 liter water bottle machine
General | ZG-100 |
Theoretical Output (pcs/hr) | 90-180pcs/hr |
Installed capacity(kw) | 25kw |
ntainer volume | 30L |
Blow Pressure (Mpa) | ≤3.5Mpa |
Working Pressure (Mpa) | ≤1.0Mpa |
ntainer diameter -height(mm) | Ø 280mmXH450 |
Mould thickness(mm) | 300-400 |
Machine Weight(kg) | 1500 |
Main Machine(mm) | 2200*700*2250 |
Heater(mm) | 2200*700*1750 |
