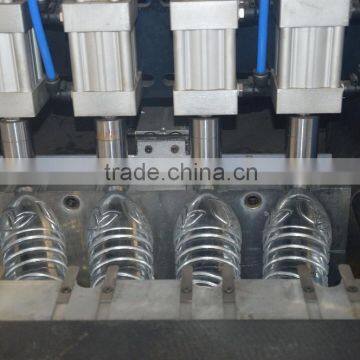

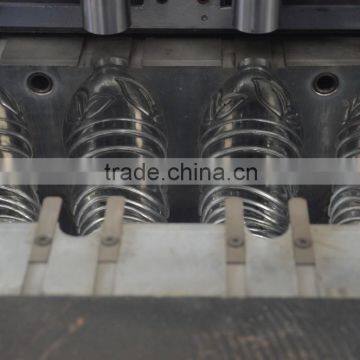

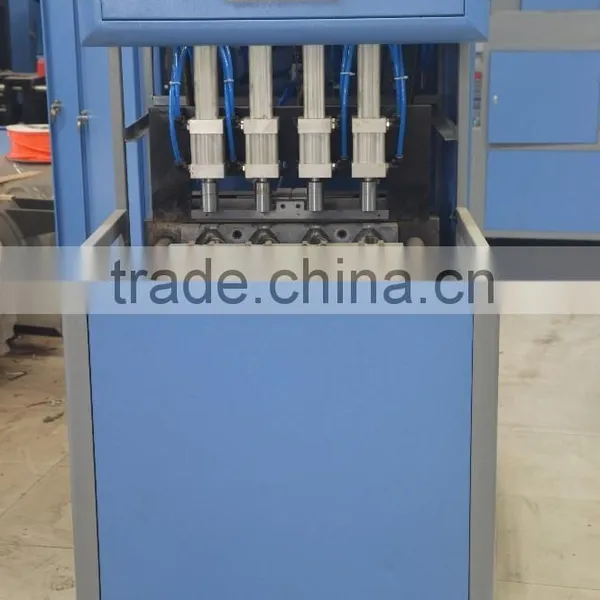

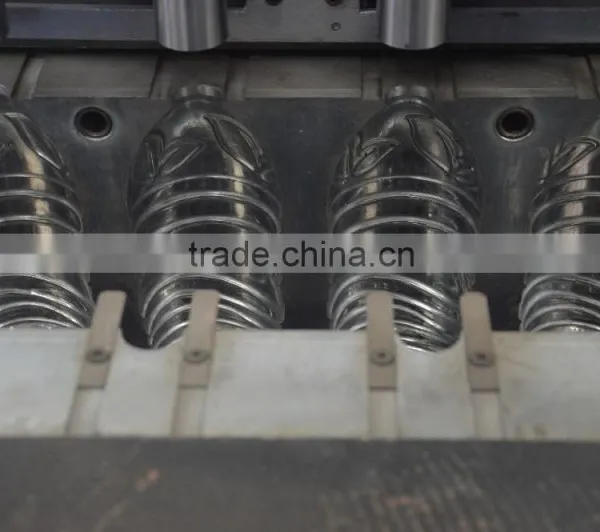

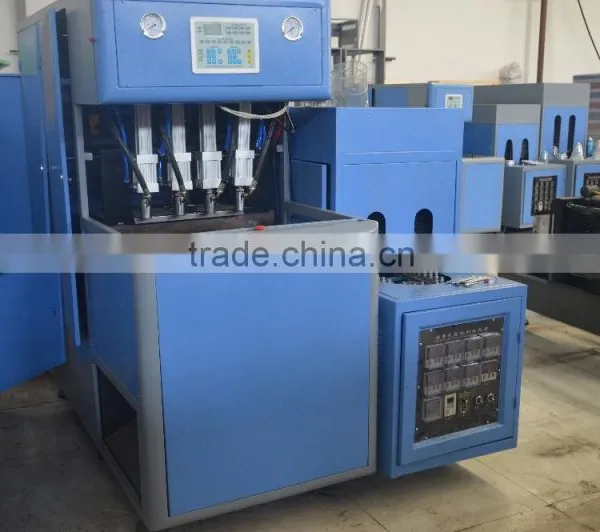

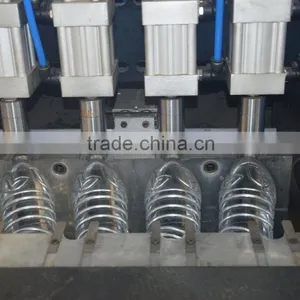

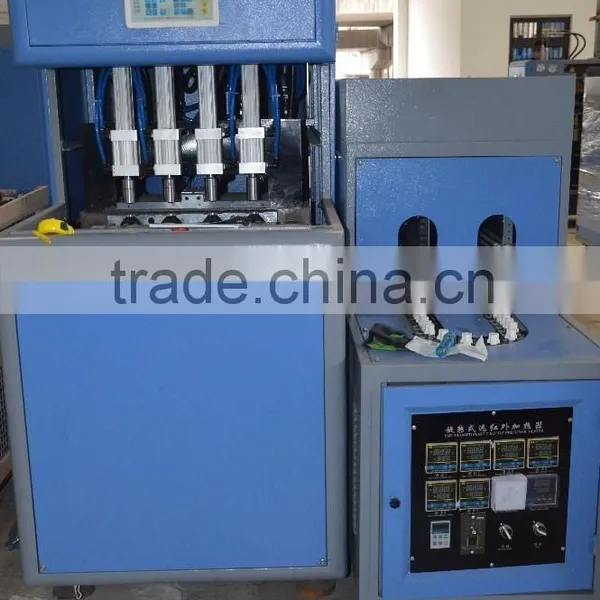

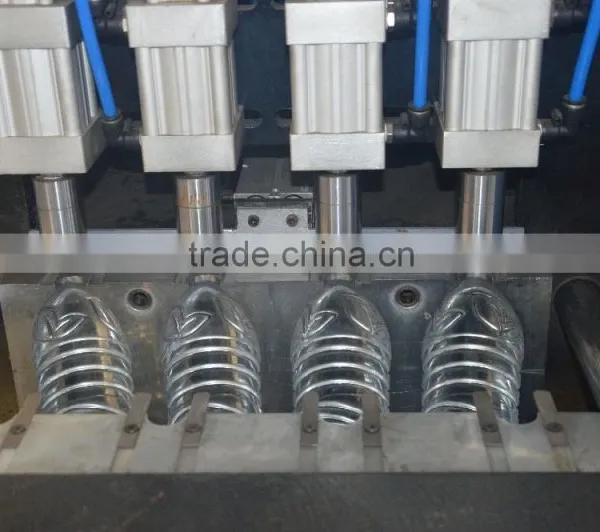

Help CenterHigh Quality Semi Automatic 4 Cavities Drinking Water Bottle Blow Molding Machine
Related Products
-
High Quality Semi Automatic 7 Gallon Jar Blow Molding MachineUS$ 3,000 - 5,800MOQ: 1 Set -
ZG-100 5 Gallon Semi Automatic Pet Blow Moulding Machine/pet Blow Molding MachineUS$ 3,500 - 7,200MOQ: 1 Set
-
ZG-100 5 Gallon Semi Automatic Preform Blow Molding Machine/pet Blow Molding MachineUS$ 3,500 - 7,200MOQ: 1 Set
-
ZG-100 20L Blowing Machine for Pet Preform /pet Blow Molding MachineUS$ 3,500 - 7,200MOQ: 1 Set
-
ZG-100 Pet Bottle Preform Making Machine /pet Blow Molding MachineUS$ 3,500 - 7,200MOQ: 1 Set
ZG-2000A water bottle making machine
Blow Moulding Machine Price --- ---Feature
- Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
- The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
- The Blow Moulding Machine Price is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
- The Blow Moulding Machine Price can be operated in the step-by-step mode and the semi-auto mode.
- The Blow Moulding Machine Price is small with low investment, easy and safe to operate.
ZG-2000A water bottle making machine
Blow Moulding Machine Price ---Technical Parametre
Main parameter: | ||
Model |
ZG-2000A |
|
Container |
Product material |
PET |
Volume |
0.1L-2L |
|
Theoretical output |
1800-2000PCS/H |
|
Preform length |
15mm-400mm |
|
Preform inner diameter |
Φ10mm-160mm |
|
Moulding |
Max.mould Plate Dimenstion(L x W) |
400x460mm |
Max.mould thickness |
300mm |
|
Clamping force |
65KN |
|
Mould opening stroke |
28mm |
|
Machine size and weight |
Main machine (L x W x H) |
175*67*186cm |
Main machine weight |
600Kg |
|
Heater (L x W x H) |
187*63*145cm |
|
Heater weight |
250Kg |
|
Power |
17.5kw |
|
Some Questions You May Want To Know
Q1:How to find our products through Zhengge Machinery Co.,Ltd?
A1:You can find in Google ,Baidu. Bing ,Yahoo, etc.
Q2:How to tell us your enquiry?
A2:Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your enquiry.
Q3:How to confirm you desire product?
A3:1.What kind of products will you produce ?
2.What is the capacity(per hour) you want ?
3.What kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details
4.Sole machine or whole production line
Q4:Are Zhengge service well?
A4:1.Our well-trained & experienced staff will answer all your inquiries in English and Chinese in 24 hours
PET Bottle Blow Moulding Machine
We warmly welcome customer to visit our factory at any time,you will see the machine working and running
condition in our factory!
Please contact us:
Mr. Jason (Sales Manager)
Taizhou Huangyan Zhengge Machinery Factory
Cel.&Phone:0086-18767649655 0086-15221595986 / 0086-576-84202616
E-mail&skype: zgmachinery AT
QQ: 897324062
Website:
