Hot Flow Meter Single Jet Dry Dial

Hot Flow Meter Single Jet Dry Dial photo-1
Hot Flow Meter Single Jet Dry Dial photo-2

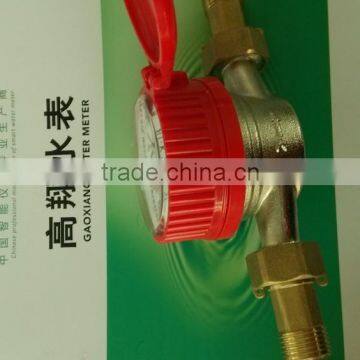

Hot Flow Meter Single Jet Dry Dial photo-3

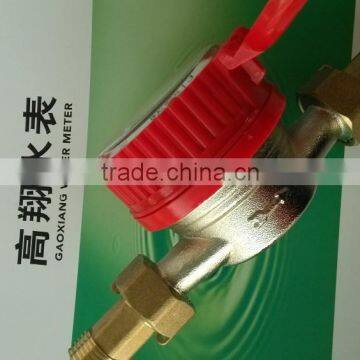

Hot Flow Meter Single Jet Dry Dial photo-4

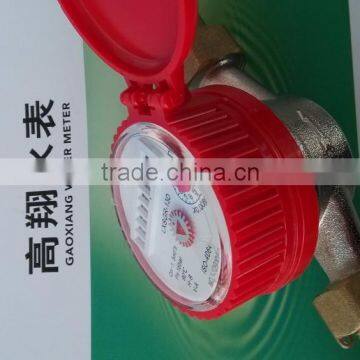

Hot Flow Meter Single Jet Dry Dial photo-5

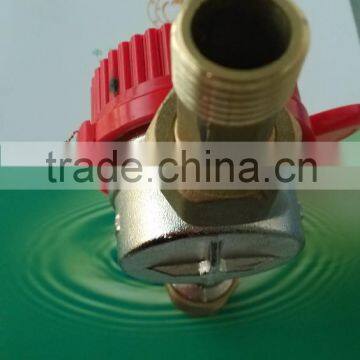

Hot Flow Meter Single Jet Dry Dial photo-6
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Gaoxiang Meter
Model Number:
LXS-MJL-13-40E
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Gaoxiang Meter
Model Number LXS-MJL-13-40E

Specifications

hot flow meter single jet dry dial for hot water meter Best selling water flow meter dry dial vaccum sealed



Details for  hot flow meter single jet dry dial


This range of water meter is used to measure the total quantity of cold/hot potable water consumed in hosehold or in a resident unite ,passing through the pipeline

Features:

1. Dry dial ,magmatic drive , resistance to the exterior magnet interference
2. single jet
3. Selected the high quality materials for steady and reliable characteristic
4. Vacuum seald register ,ensure the dial keep free from fog and keep reading clear for longterm service.
5.Measuring accuracy can conform to ISO 4064 Class B standard
6.inner and outer adjusting for option
7. Small in size ,light in weight



Working condition:
Water temperature 50°c
Water pressure≤1MPa
Accuracy:
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%



Working condition:
Water temperature 50°c
Water pressure≤1MPa
Accuracy:
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%



Main technical data



Meter sizeDia DN (mm) Class Qs Overload Flow Qp Nominal Flow Qt Transitional Flow Qmin Min Flow Min Reading Lectura Max Reading Lectura
m3/h 1/h m3
13 A 3 1.5 150 60 0.0001 99999
B 120 30
20 A 5 2.5 250 100 0.0001 99999
B 200 50
25 A 7 3.5 350 140 0.0001 99999
B 280



Diamention and weight



Meter size DiaDN(mm) Llength BWidth HHeight Connecting ThreadD Weight/kg
mm
15 110 80 80 G3/4"B 0.7
20 130 80 80 G1"B 0.95
25 160 80 93 G13/4"B 1.4

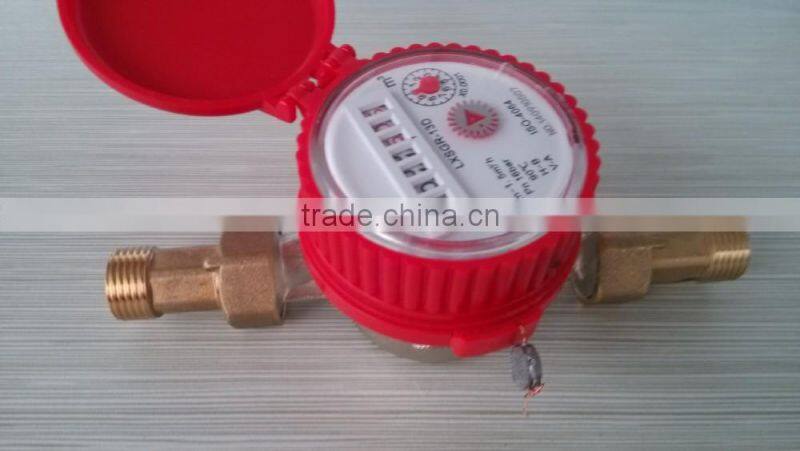

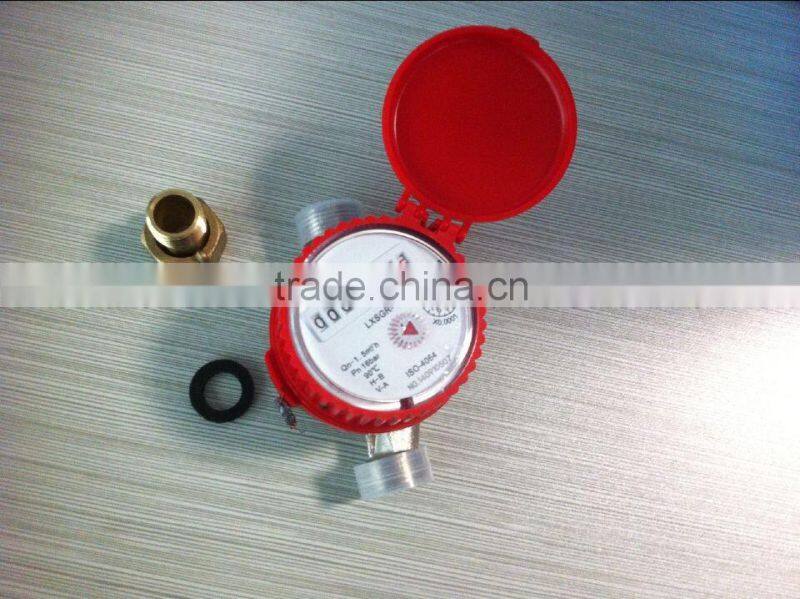

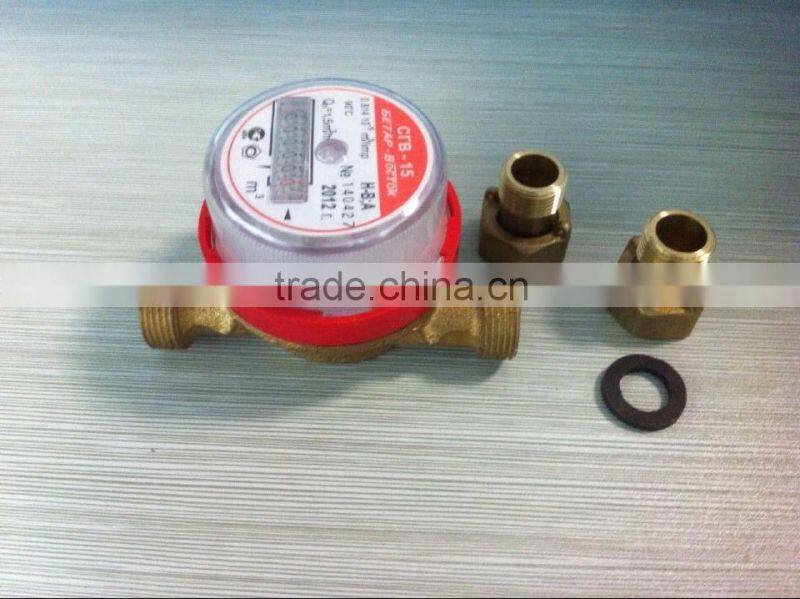

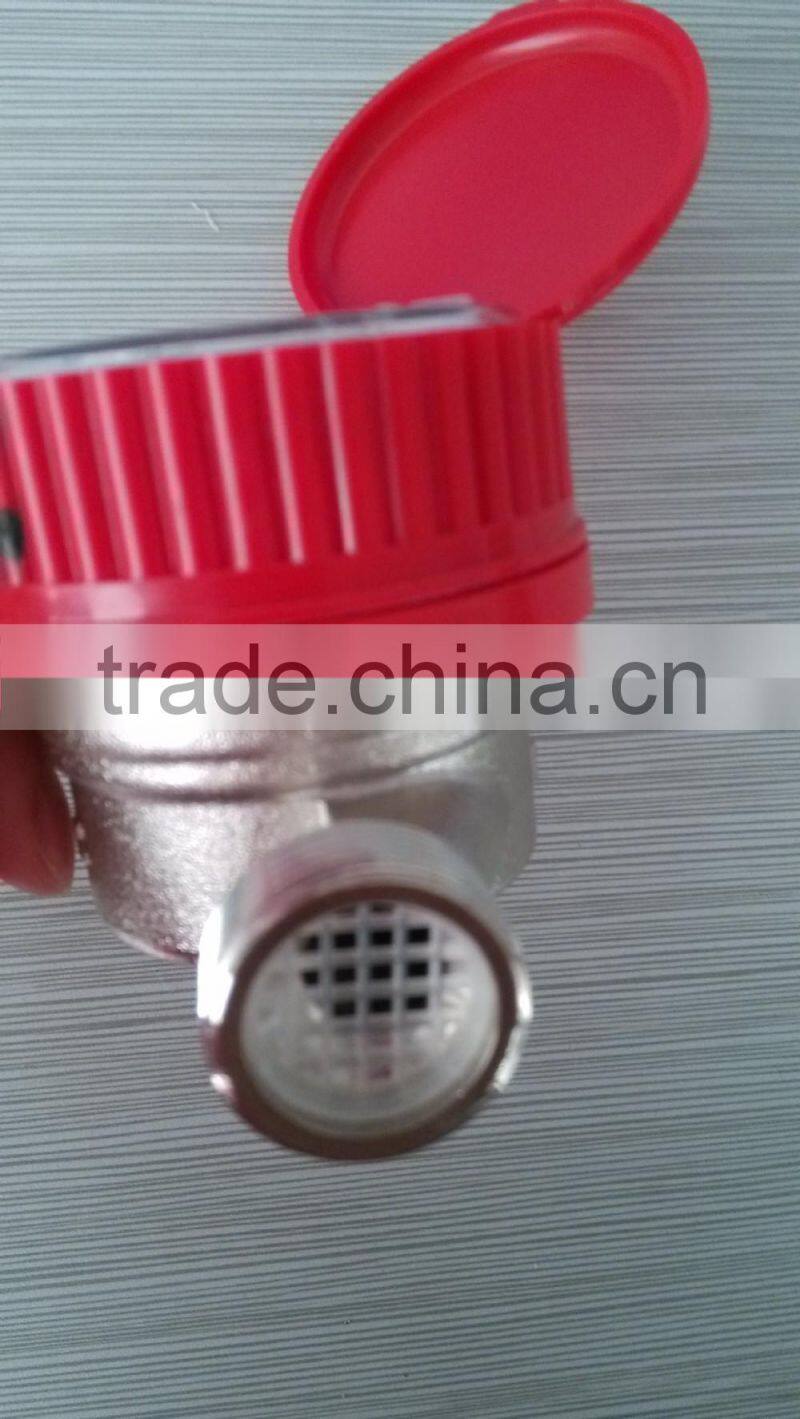

Images for  hot flow meter single jet dry dial
