Specifications
positive displacement water meter Volumetric Rotary Piston Type Water Meter ,brass /cast iron /nylon material for optionWe (Gaoxiang Water Metert )are professional water meter manufacture for 10 years and we can supply high quality positive displacement flow meter Volumetric Rotary Piston Type Water Meter with reasonable price ,any comments or needed ,pls feel free to comtact me:
SPECIFICATION FOR positive displacement water meter Volumetric Rotary Piston Water Meter
Features;
1.the material is Environment Friendly
2..warranty: 2 years
3.Supply ability:100000 pcs per month
4.Free sample one piece is avaible ( but you need pay to us the sample fee and freight charge first to show the sincerity to coopertae with each other and we will return back the sample fee to you when we order to us
Application
Measuring the volume of cold potable
water passing through the pipeline
Work conditions
Water temperature : ≤ 40°C
Water pressure : ≤1.6 Mpa, ≤1.0 Mpa
Features
1. Ensures high sensitivity and accurate registration throughout a wide flow range.
2. Low starting flow rate and excellent metrological performance.
3. Magnetic drive , lower transimission resistance.
4. Sealed dry dial register ensures clear reading.
5. Internal strainer, inlet strainer for selecting.
Compliance with standard
1 Technical data conforms to ISO 4064 Class C
Standard for horizontal installation
Options
1. Several lengths ,different materials of shell and connections available on request.

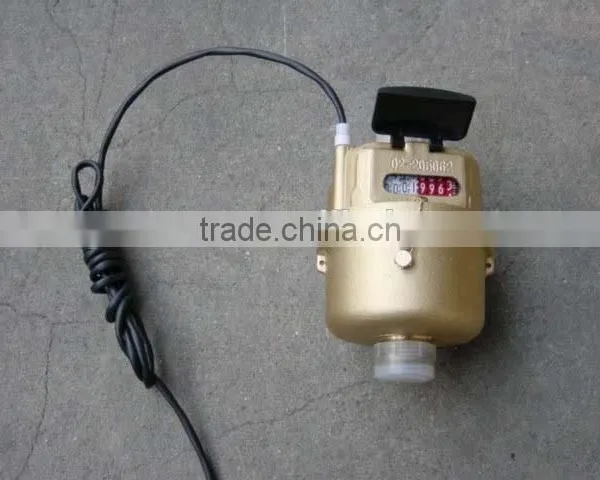

2. Can be equipped with reed switch option.
Installation requirements
1. The meter can be installed in any position.
2. Pipeline must be flushed before installation
3. The meter shoule be constantly full of water during operation.

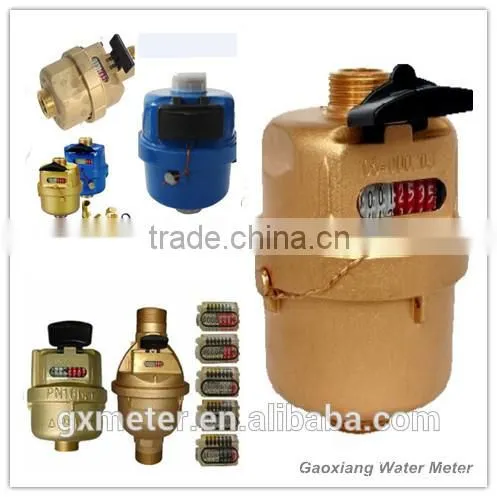

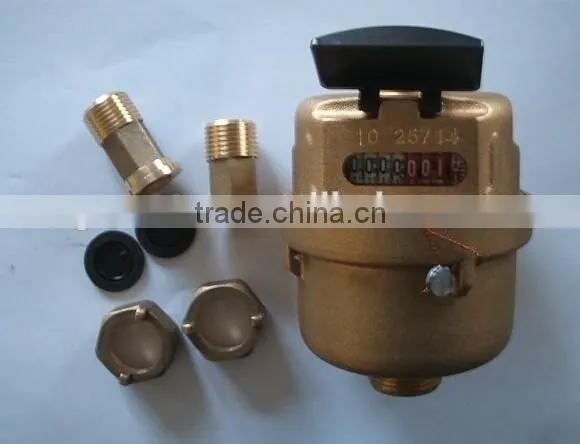

Product Images for positive displacement water meter Volumetric Rotary Piston Water Meter

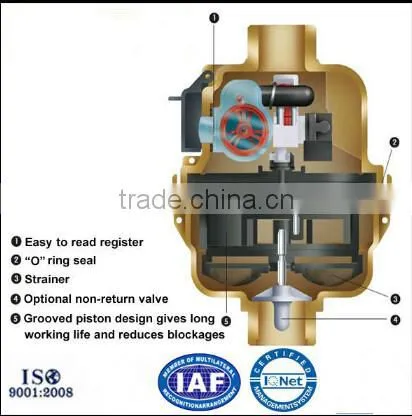

Exploded view

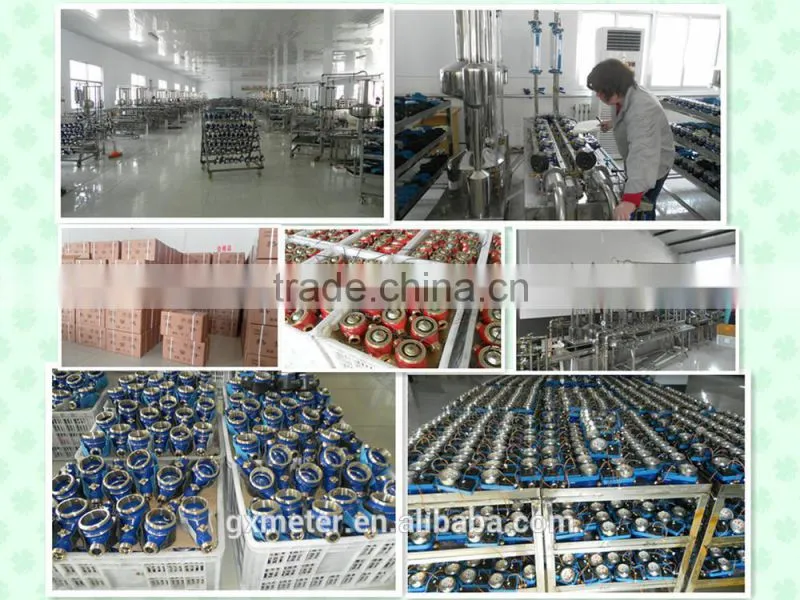

COMPANY IMAGES
CERTIFICATES
LOADING IMAGES
