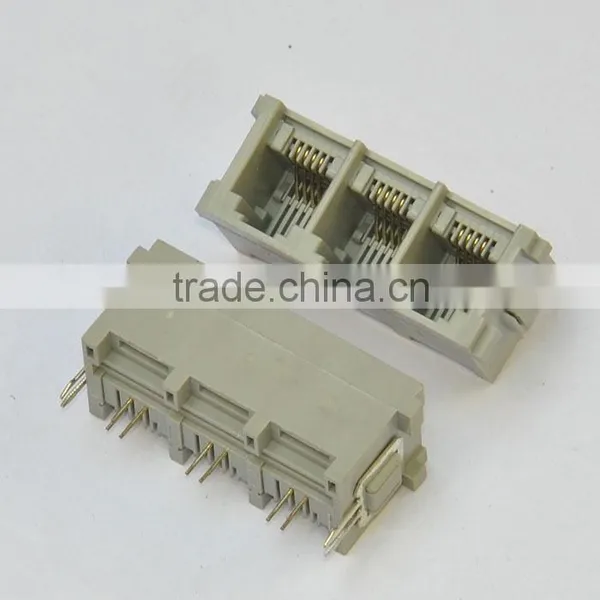

Top Entry RJ11 1*3 port Telephone Modular PCB Jack

Specifications

1.J11/RJ12 Top Entry Telephone Modular PCB Connector/Socket with Round Pin Modular PCB Jack
2.UL,RoHS,ISO9001-2000

Description:
Top entry RJ11 telephone socket with 0.45mm round pin
Without shielding.

Angle:180 Degree

Number of ports: 1*3
Number of position: 6
Number of contacts: 2,4 or 6



Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance:  30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min



Mechanical:
Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum



Materials:

1.Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u" or 50u"
