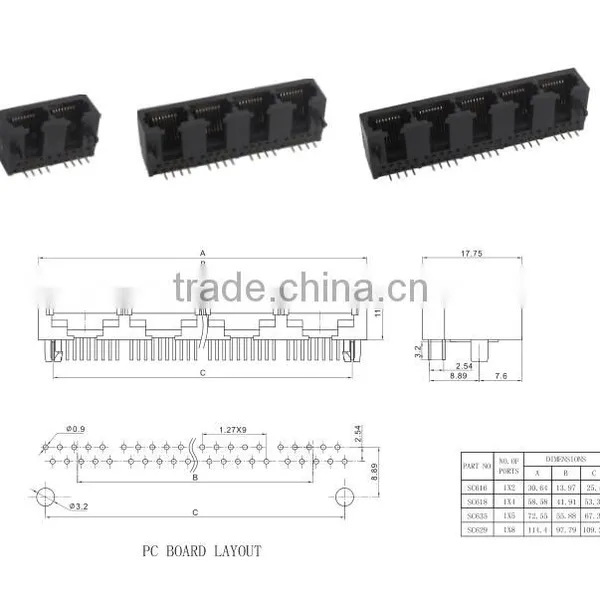

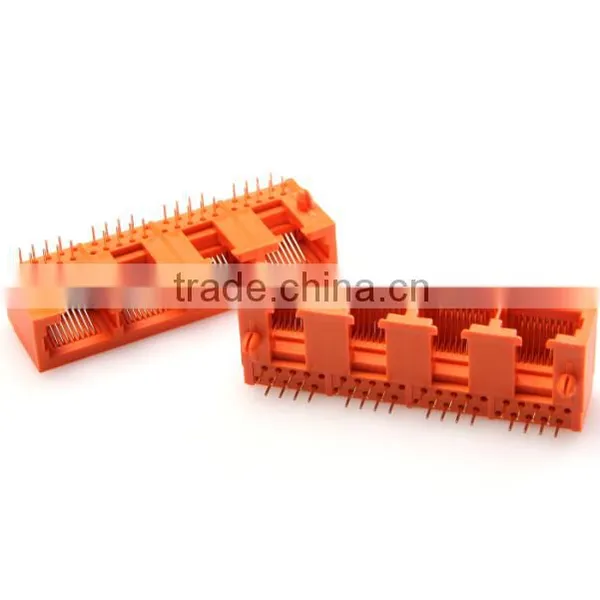

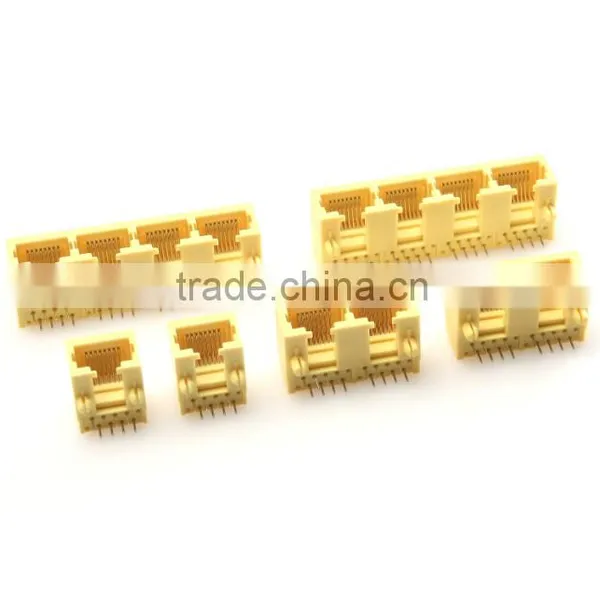

Unshiled RJ45 female connector and modular jack,Side entry 10P RJ45 PCB jack

Description:
Side entry RJ45 PCB connector with unshield,female modular PCB Jack
Unshield,Round PIN

Number of ports: 1X1,1X2,1X4,1X5,1X8

Number of position: 10
Number of contacts: 2,4,6,8 or 10

Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance:  30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:
Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum

Materials:

1. Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",3u",6u",15u",30u",50u"
