Single Port 8P Pcb Jack With LED Top Entry Female RJ45 LED Modular Pcb Connector
US$ 0.10 - 0.11
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CSCE
Model Number:
SC276-5224-LED-8P8C-1X1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SINGLE-PORT RJ45 PCB JACK WITH HALF-SHIELDINGNegotiableMOQ: 1 -
Single-port RJ45 PCB Jack With 10PinNegotiableMOQ: 1
-
Single-port RJ45 PCB Jack/Socket/ConnectorNegotiableMOQ: 1
-
RJ45 PCB JACK /SOCKET/CONNECTOR WITH SINGEL-PORTNegotiableMOQ: 1
-
SHIELDED RJ45 PCB JACK /SOCKET/CONNECTOR WITH SINGEL-PORTNegotiableMOQ: 1
Place of Origin
Zhejiang, China
Brand Name
CSCE
Model Number
SC276-5224-LED-8P8C-1X1
Type
RJ45
Application
PCB
Gender
Female
Product Description
Top Entry RJ45 8P female modular PCB jack with LED
Number of ports: 1X1
Number of position: 8
Number of contacts: 2,4,6 or 8
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
1. Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating:Gold Flash,1u",1.5u",3u",6u",15u",30u",50u"

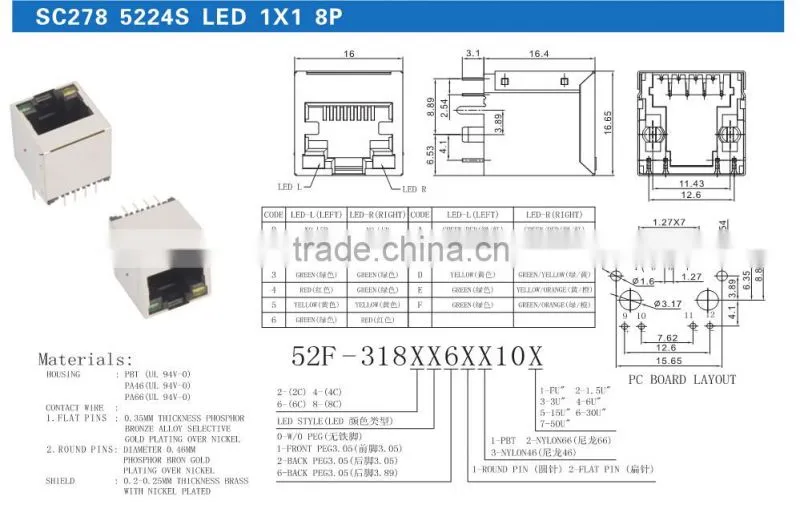

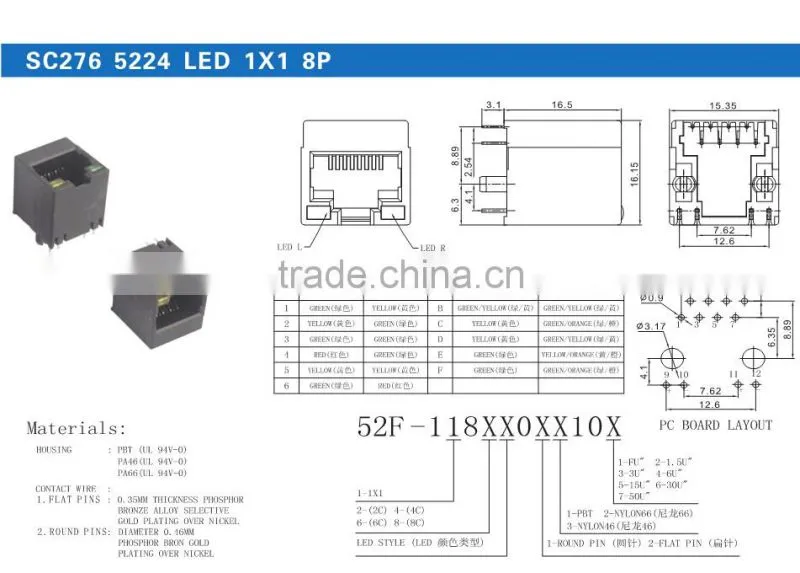

Detailed Images
