Top Entry RJ45 Network Socket
US$ 0.1 - 2
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CSCE
Model Number:
SC257-5224S 8P8C-1X1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top Entry RJ45 Multi-ports PCB JACK With LEDNegotiableMOQ: 1 -
Single Port 8P Pcb Jack With LED Top Entry Female RJ45 LED Modular Pcb ConnectorUS$ 0.10 - 0.11MOQ: 5000 Pieces
-
SINGLE-PORT RJ45 PCB JACK WITH HALF-SHIELDINGNegotiableMOQ: 1
-
Single-port RJ45 PCB Jack With 10PinNegotiableMOQ: 1
-
Single-port RJ45 PCB Jack/Socket/ConnectorNegotiableMOQ: 1
Place of Origin
Zhejiang, China
Brand Name
CSCE
Model Number
SC257-5224S 8P8C-1X1
Type
RJ45
Description:

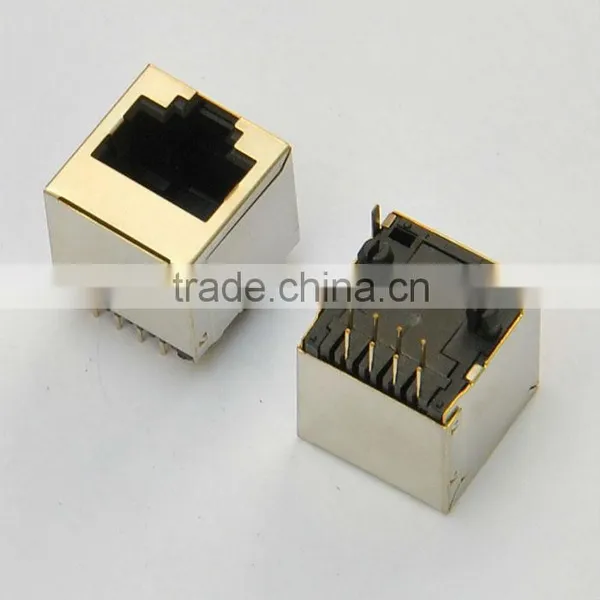

Top entry RJ45 network socket with 0.35mm flat pin
Without shielding.
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
Housing: PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Round pin : Diameter 0.46mm phosphor bronze gold plating over Nickel
3.Flat pin :0.35mm thickness phosphor brass alloy selective gold planting over Nickel
4. Gold Plating: Fu inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
