Specifications

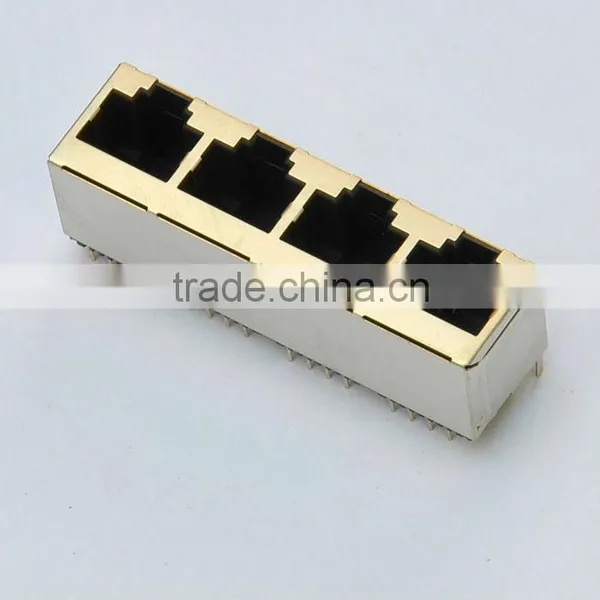

1.Top Entry RJ45 Network connector/Socket/Modular PCB Jack with 1*4 ports and with shield.2.UL,RoHS,ISO9001-2000
Product Name: Network Connector/RJ45 Modular PCB Jack
Item No.: SC218-5224S-8P-1x4
Description:
Top Entry modular pcb jack with shielded, 8p2c, 8p4c 8p6c or 8p8c(number of 8 passing through the golden needles, amount of 2, 4, 6 or 8 needles) with Stamp Pin(Flat Pin)
No.of Ports:1*4 Port
Angle: 180 Degree
Color: Black, also can requested by customers
Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500mΩmin
4. Contact Resistance: 30mΩmax
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)(Common type)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire:0.35mm thickness phosphor bronze alloy selective gold Plating over nickel(Flat pin)
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu", +3u",6u",15u",30u" or 50u"
