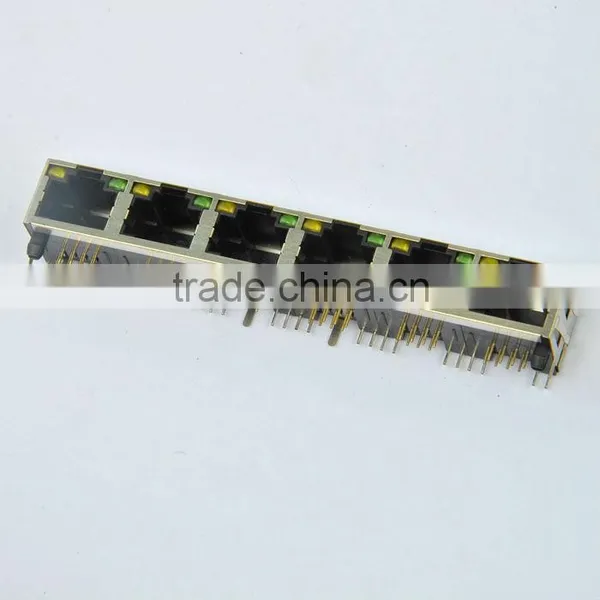

Side Entry 1*6port RJ45 PCB With LED Jack

Side Entry 1*6port RJ45 PCB With LED Jack thumbnail-1
Side Entry 1*6port RJ45 PCB With LED Jack photo-1
US$ 0.5 - 2.9 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CSCE
Model Number:
SC605-56S-LED-8P 1*6
Contact Supplier Request Quote Chat Now
Yueqing Shichuang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CSCE
Model Number SC605-56S-LED-8P 1*6
Type RJ45
Application PCB
Gender Female

Specifications

1.Cat5 RJ45 Side entry PCB Jack with shield and round pin
2.UL,RoHS,ISO9001-2000

Description:
Side entry RJ45 modular PCB jack
Without shielding,Stamp pin
Number of ports: 1
Number of position: 8

Number of contacts: 2,4,6 or 8



Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance:  30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min



Mechanical:
Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum



Materials:

1.Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u"

RJ45/RJ11 Connector specifications:
Application - LAN ETHERNET
Gender Jack
No. of Ports 1X2,1X4
Number of position 10
Number of contacts 2,4,   6,8 or 10
Housing PBT(UL94-V0),PA66(UL94-V0),PA46   (UL94-V0)
Contact Material 0.45mm   phosphor bronze gold plating over nickel
Shielding housing 0.20-025mm   thickness brass with nickel plated
Shield EMI Tabs Option
LED Option
Gold Plating Gold   Flash,3u",6u",15u",30u" or 50u"
PCB Mount Angle Side   entry
Insertion Force 2.2KG.F   max
Retention Strength 7.7KG.F   min between jack and plug
Durability 750   mating cycles min
Working Temperature -40°C~+70°C
Storage Temperature -10°C~+40°C   Relative Humidity
RoHS Compliant Yes
Electrical:
Current Rating 1.5   Amps
Voltage Rating 125VAC
Insulation Resistance 500   MΩmin
Contact Resistance 30   mΩmax
Withstanding Voltage AC   1000V RMS 50Hz or 60Hz 1 min
RJ45   connector Application:
Laptop Telephone
Hub Router
Printer Broadband   Switche
Server Fitness   Equipment
LCD and TV panel Point   of Sales Terminal
Set Top Box Vending   Machines
Surge protector Television
Telecom box ATM Machine Home   Security
Security System Copier
Video DVD product
