Home > Products > Single Jet Meter > Plastic Body Single Jet Wet/cold Water Meter ( 1/2" to 1")

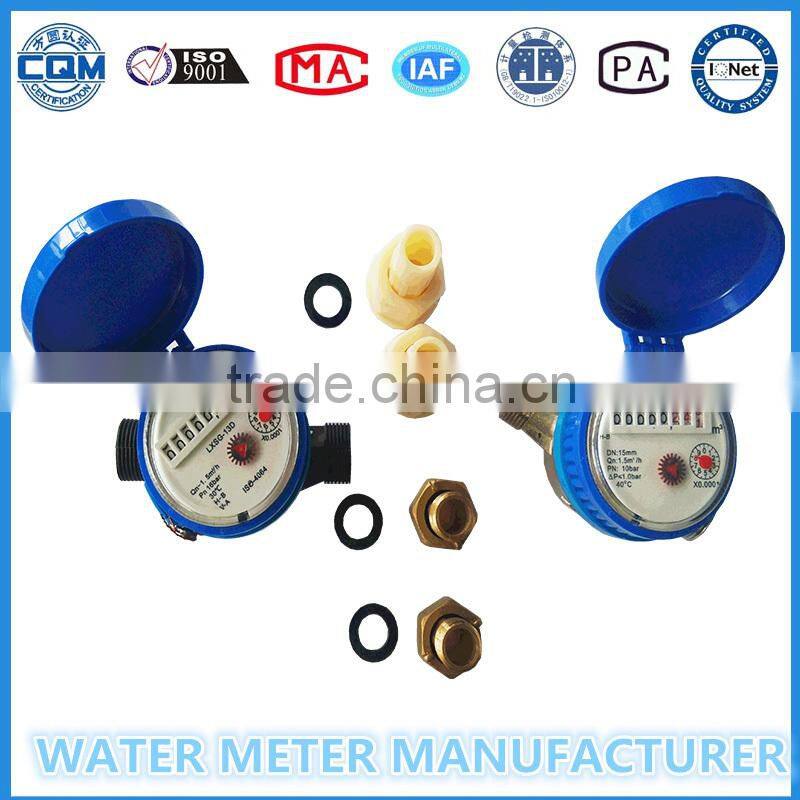

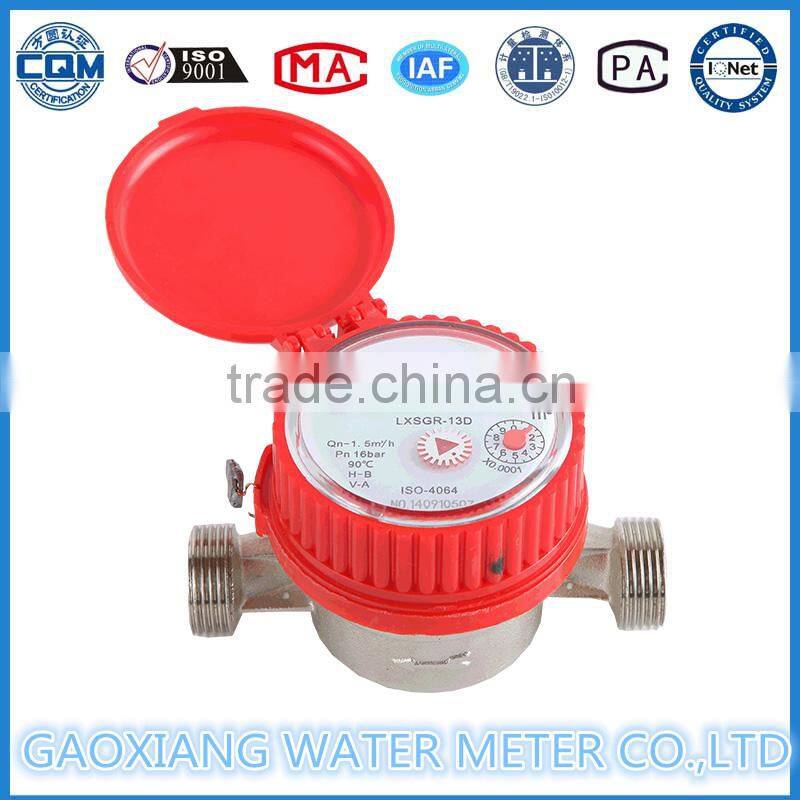

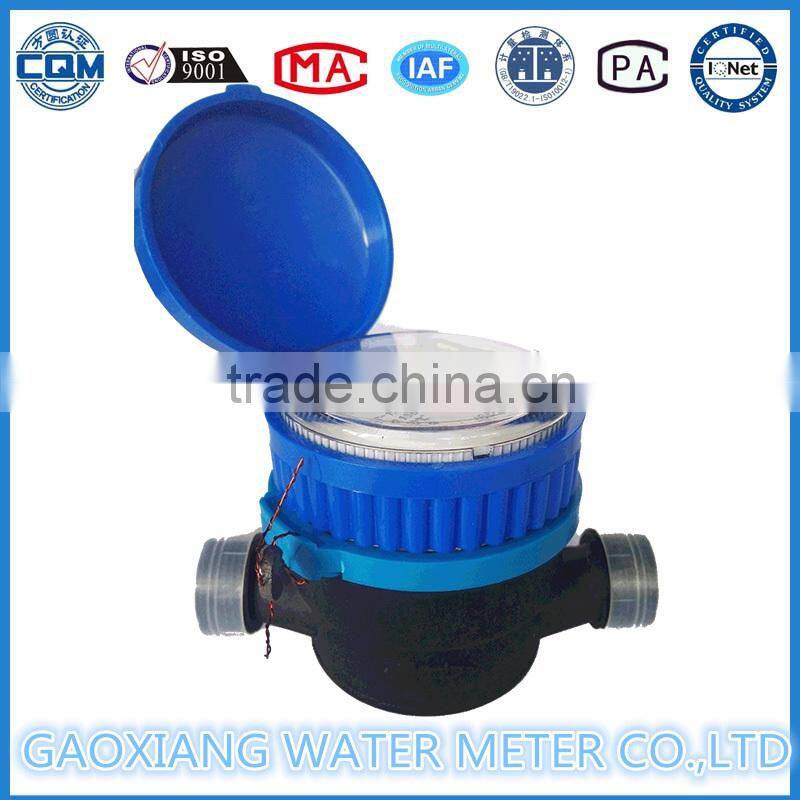

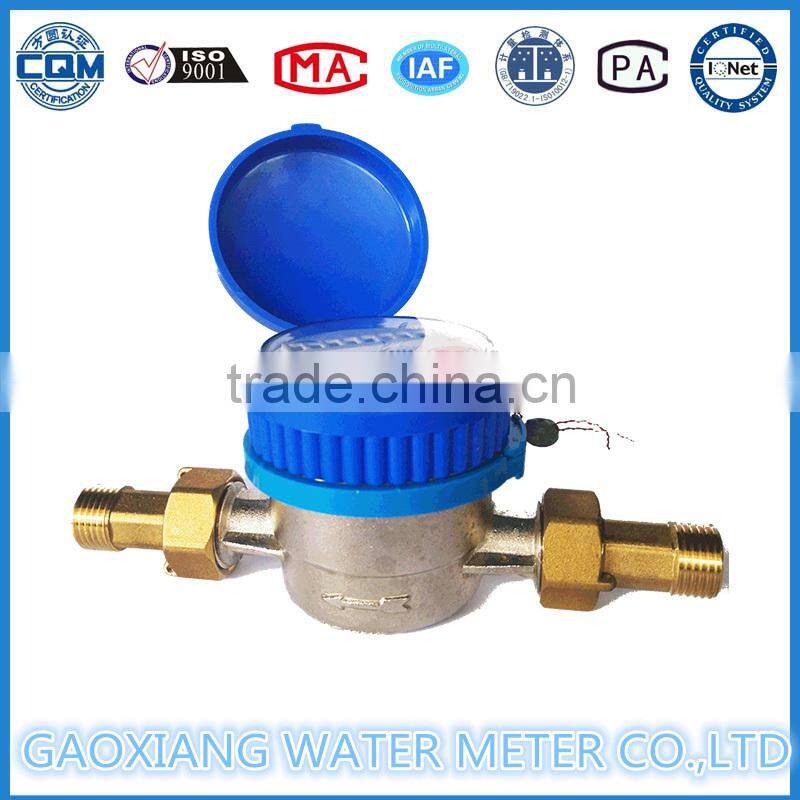

Plastic Body Single Jet Wet/cold Water Meter ( 1/2" to 1")
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Single Jet Dry Dial Brass Body Class B Cold Water Meter LXSC-13D3-50D3
-
Single Jet Water Meter From China Water Meter Manufacturer
-
Brass Adapters and Nuts for Single Jet Water Meter
-
DN15 Single Jet Water Meter With Fitting Plastic Adapters and Nuts
-
Dn15mm Dry Type of Single Jet Water Meter Pulse Output Keep a Stock
-
Russia Market Single Jet Pulse Water Meter
Product Details
| Place of Origin | Shandong, China | Brand Name | gaoxiang | |
| Model Number | LXSG-13D-25D-12 |
Product Description
MAIN TECHNICAL DATA
Meter size | Class | Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
m3/h | 1/h | m3 | |||||
13 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
B | 120 | 30 | |||||
20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
B | 200 | 50 | |||||
25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
B | 280 | 70 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to
DIMENSIONS AND WEIGHT
Meter size | L | B | H | Connecting Thread | Weight |
mm | |||||
13 | 110 | 80 | 80 | G3/4"B | 0.7 |
20 | 130 | 80 | 80 | G1"B | 0.95 |
25 | 160 | 80 | 93 | G13/4"B | 1.4 |
Working condition
Water temperature:≤50°C for cold water meter
Water temperature:≤90°C for hot water meter
Working pressure:≤1.6Mpa
