5.9kw Centrifugal Water Pump

Name: 5.9kw Centrifugal Water Pump
Brand: Huitian
SKU: 104837063
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

Huitian

Model Number:

HTQG80-90

Chongqing Huitian Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name Huitian

Model Number HTQG80-90

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Gasoline

Pressure Low Pressure

Application Other, draw water,irrigation,and so on

Specifications

1)4 stroke gasoline engine as the power for water pump
2)Small size,compact structure is easy to operate

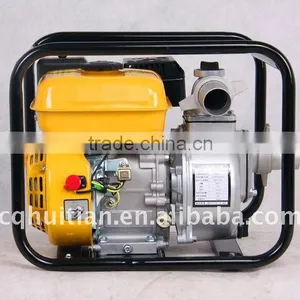

5.9kw centrifugal water pump

Feature:

1.4stroke gasoline engine as the power for water pump.

2.Easy installation,little vibration.

3.Low noise

Application:

a.draw water,irrigation.

b.fire-fighting

c.water treatment engineering

d.industrial architecture

e.municipal engineering

Specification:

Water pump	Model	HTQG80-90
	Type	Gentrifugal
	Outlet size(mm)	65(2.5")
	Inlet size(mm)	80(3")
	Rated speed(rpm)	3600
	Throughput(m/h)	96
	Lift(m)	90
	Suction(m)	7
Engine	Engine model	173F
	Displacement(cc)	242
	Maximum output(hp/kw)/rpm	(8.0/5.9)/3600
	BorexStoke(mm)	73x58
	Compression ration	8.2:1
	Engine stype	OHV250 Tilt single cylinder,forced air-cooling,4stroke gasoline engine
	Starting system	Recoil start
	Ignition system	Transistor magneto
	Oil capacity(L)	6
	Engine oil capacity(L)	1.1
SIZE	Dimension(mm)	620x450x570
	Packing	Carton
	NW/GW	48/50
	20GP/40HQ(set)	194/477
