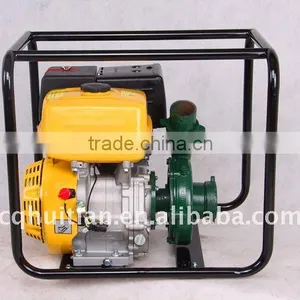

3inch High Pressure Water Pump

Name: 3inch High Pressure Water Pump
Brand: Huitian
SKU: 104837109
Availability: InStock

US$ 1 - 100 MOQ: 1 Set

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

Huitian

Model Number:

HTQG80-90

Chongqing Huitian Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name Huitian

Model Number HTQG80-90

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Gasoline

Pressure Low Pressure

Application Other, draw water,irrigation,and so on

Specifications

3inch high pressure water pump:
1)188f engine,gasoline water pump
2)lift is 55m
3)Be used in farm,garden,municipal

3inch high pressure water pump :

Feature:

1.4stroke gasoline engine as the power for water pump.

2.Easy installation,little vibration.

3.Low noise

Application:

a.draw water,irrigation.

b.fire-fighting

c.water treatment engineering

d.industrial architecture

e.municipal engineering

Specification:

Water pump	Model	HTQG80-90
	Type	High lift Centrifugal
	Outlet size(mm)	65(2.5")
	Inlet size(mm)	80(3")
	Rated speed(rpm)	3600
	Throughput(m/h)	48
	Lift(m)	90
	Suction(m)	7
Engine	Engine model	188F
	Displacement(cc)	389
	Maximum output(hp/kw)/rpm	(13/5.9)/3600
	BorexStoke(mm)	88x64
	Compression ration	8.0:1
	Engine stype	OHV250 Tilt single cylinder,forced air-cooling,4stroke gasoline engine
	Starting system	Recoil start
	Ignition system	Transistor magneto
	Oil capacity(L)	6.5
	Engine oil capacity(L)	1.1
SIZE	Dimension(mm)	620x480x570
	Packing	Carton
	NW/GW	48/50
