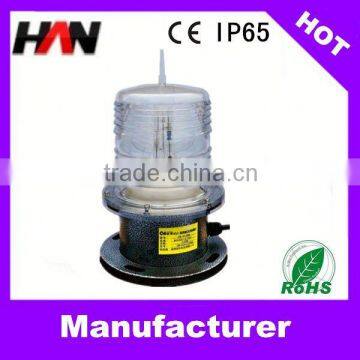

White Medium intensity Type A airport aviation obstruction lights
1.airport aviation obstruction lights
2.High intensity
3.Xenon tubes
4.warranty:5 years
5.IP65
airport aviation obstruction lights
Specifications
Item |
Medium intensity aviation obstruction light Type A |
Model |
HAN-012MW |
Operating voltage |
AC220V |
Power consumption |
≤30W |
Flashing frequency |
20-60 times/min |
Light source |
Xenon tubes |
Peak light intensity |
2000-20000cd(±25%) |
Beam angle |
360° horizontal beam angle |
>3° vertical beam spread | |
Lifespan |
>100,000,00 times |
Emitting color |
White |
Method of synchronization |
Same power supply voltage signal mode |
Overall size |
180*278 mm |
Installation size |
153*4*M10 mm |
Ingress protection |
IP65 |
Lighting Protection level |
10KA |
Operating temperature |
-55°C-55°C |
Net Weight |
2.2KG |
Wind load |
80m/sec |
warranty |
5 years |
airport aviation obstruction lights
Main Features
1. Integral structure, protection lever of IP 65.
2.GPS synchronizing function is available.
3.SUS304 stainless steel, lens of tempered glass;resistance to corrosion.
4.Light source adopts high quality xenon tubes
5.Automatic identification sync signal
6.Suitable to harsh environment.
7.Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
Application
Widely used in various fields of the Air Force, civil airports and obstacle free airspace, helipads ,iron tower,
chimney ,ports, wind power plants, bridge and city high-rise buildings where require aviation warning .
airport aviation obstruction lights
About us
Han Industrial Group Limited is an integrated high-tech enterprise with solar and LED technology. Xi' An Greenwood New Energy Technology Co., Ltd. is the subsidiary of Han Industrial Group Limited.
We are specialized in the research, development and manufacture of Led lights, solar lights and solar generating systems and so on. Our products are widely applied to lighting, sea navigation, solar road stud , solar warning light , coal mine, gas station and other professional industrial fields.
