High Technology Gaoxiang Cheap and Best Ultrasonic Heat Meter

Name: High Technology Gaoxiang Cheap and Best Ultrasonic Heat Meter
Brand: Gaoxiang water meter
SKU: 104823091
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Gaoxiang water meter

Gaoxiang Water Meter Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Gaoxiang water meter

Specifications

Installed in horizontal or vertical or any direction ,Low cost in using, no mechanical wear and maintenance-free .High ~````````

Our Services

skype:gxmeter777
QQ:2914794261

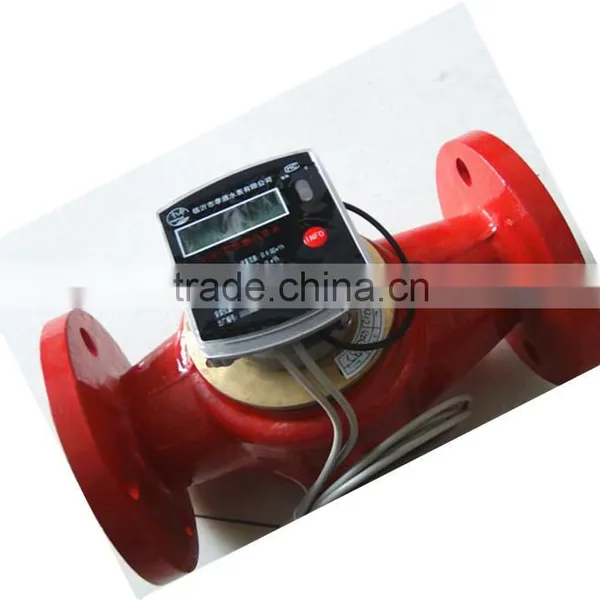

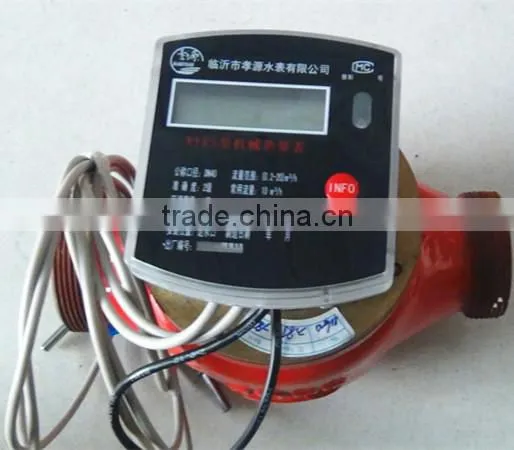

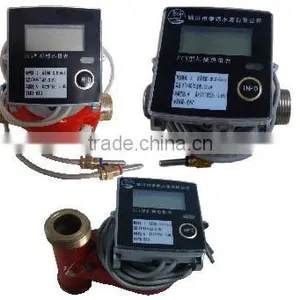

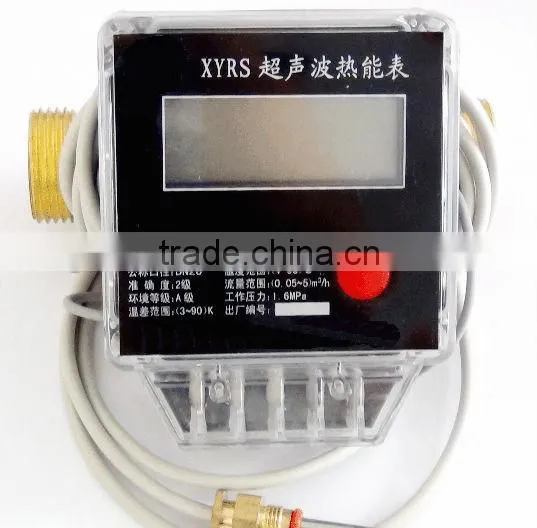

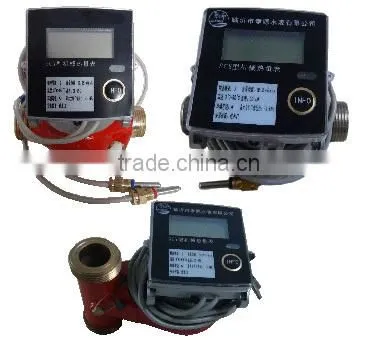

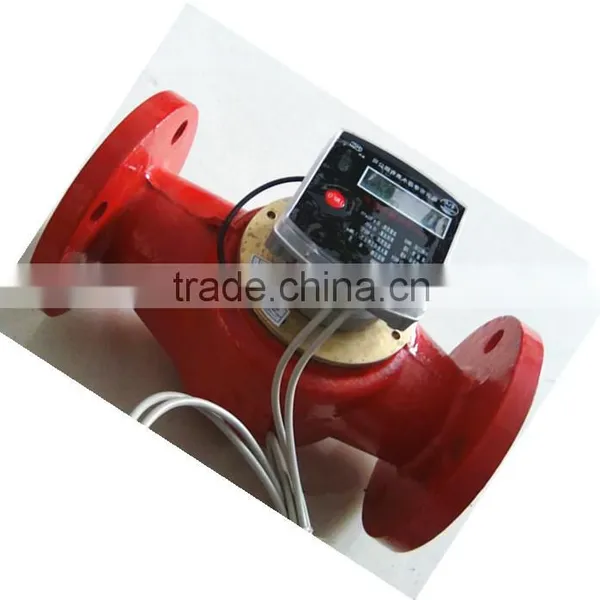

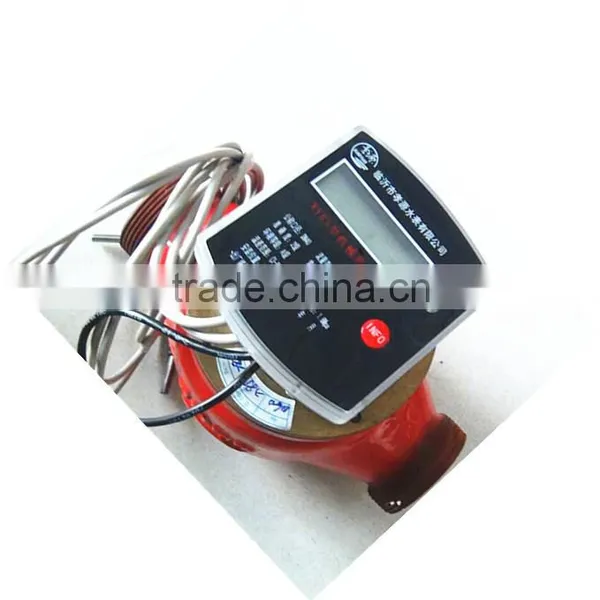

Ultrasonic Heat Meter

Specification:

Features:

1. Measured by the time difference theory of ultrasonic

2. High precision in measuring heat

3. Display the temperature and quantity of heat in screen directly

4. Measurable with either hot water or cold water

5. Brass body and a long service life by 6 years

Advantages:

1. Installed in horizontal or vertical or any direction

2. Low cost in using, no mechanical wear and maintenance-free

3. High measurement precision, accuracy is not affected by impurities or magnetism

4. Reliably performance, very little pressure loss

5. The certification of ISO9001

Technical data:

DN	mm	15	20	25	32	40
power supply		3.6V/2.4Ah Lithium battery
quiescent current	μ A	≤10
operating current	μ A	≤40
battery life		≥8 years
accuracy grade		Grade Ⅱ
loss of pressure		≤0.025MPa(Qn)
working pressure		≤1.6 MPa
available scope		cold water, hot water
protection level		IP65
Qmax	m3/h	3.0	5.0	7.0	12.0	20.0
Qn	m3/h	1.5	2.5	3.5	6.0	10.0
Qmin	m3/h	0.03	0.05	0.07	0.12	0.2
allowed temperature range	°C	4~95°C
allowed temperature difference range	°C	3~70°C
ambient temperature	°C	-25°C~+55°C
environmental exposure class		Class B
mounting position		water inlet, water outlet
