Specifications
one kind of pure physical processnon-phase change, energy-saving, small volume, easy to disassembly

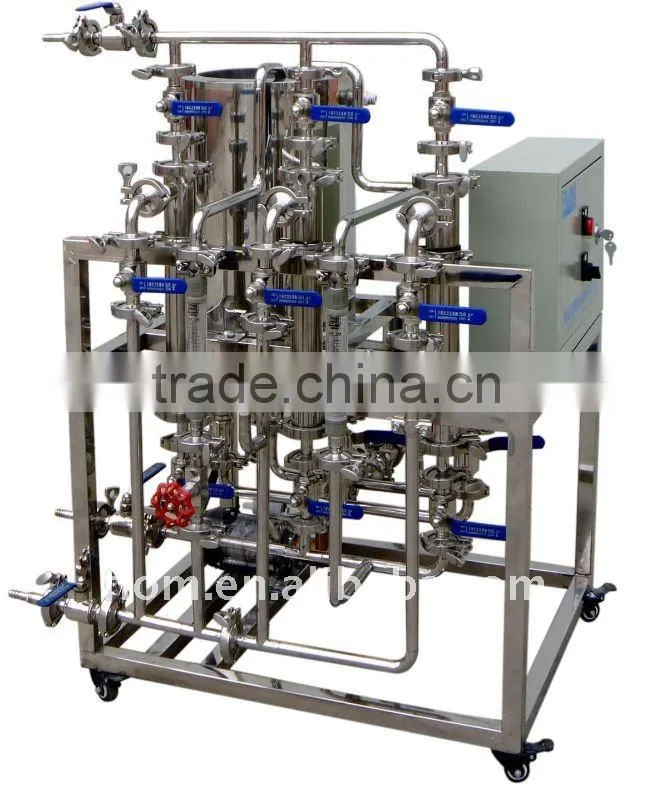

Lab RO/UF/NF Roll Type Membrane Separation System
The system introduction
Laboratory multifunctional membrane separation system is mainly used to do UF/NF/RO purification and separation, can filter, decolor, desalination, purify, concentrate liquid with water as solvent.
Choose the right membrane according to size of the molecular weight of the matter to be separated, every kind of membrane can be used separately, of course users can choose to install 2 kinds of same membrane; can separate the matter from 0.03μm to 100 Dalton.
Technical Parameters
Model |
FUNR10 |
Operating Pressure |
0-1.6Mpa |
Treatment capacity |
3-20L/H |
Operating temperature and PH |
Temperature 0-45°C, PH 0-14 |
Membrane component selection |
|
Retain precision |
>95%(matched matter to test)MWCO 200 KD, 100 KD, 10 KD,5 KD,360D,160D,100D, RO |
Effective membrane floor area |
0.26 M2 |
Standard membrane component length |
298.5, 304stainless membrane casing, special guard staple interface, healthy class |
Pump |
Using imported famous brand centrifugal pump, diaphragm pump, peristaltic pump, frequency conversion, stable performance |
Electrical control cabinet |
Temperature, pressure, cross-flow rate(tangential flow rate)can all be tested online |
High temperature automatic power-off setting |
0-100°C High pressure automatic Power-off setting:0-16 Mpa |
Material cycle tank |
304 stainless material, healthy internal and external polishing, double layer material cooling function, volume: 20 |
Pipeline, valves |
304 stainless material, healthy internal and external polishing; with stainless steel pipe heat exchanger. |
Power supply |
220±10V |
Measurement |
750*730*1100mm |
Net weight |
50KG |
Application
1 Decolor, desalination, purification, concentration of Biology fermentation liquid (like: antibiotics, lactic acid,1/3 propylene glycol, Vc, etc)
2 Decolor, desalination, purification, concentration of Chinese medicine, plants extraction leaching solution ( like: tea, stevia sugar, inulin, grosvener siraitia, etc)
3 Decolor, desalination, purification, concentration of amino acid(like:arginine, tryptophan, threonine, phenylalanine, etc)
4 Decolor, desalination, purification, concentration of fermentation or enzymolysis oligosaccharide(like: xylo-oligosaccharide,fructo oligosaccharide, etc)
5 Desalination, purification, concentration of milk products.
6 Decolor, desalination, purification, concentration of fruit juice.
7 Desalination, purification, separation, etc of condiment(like: soy sauce, vinegar, etc)
