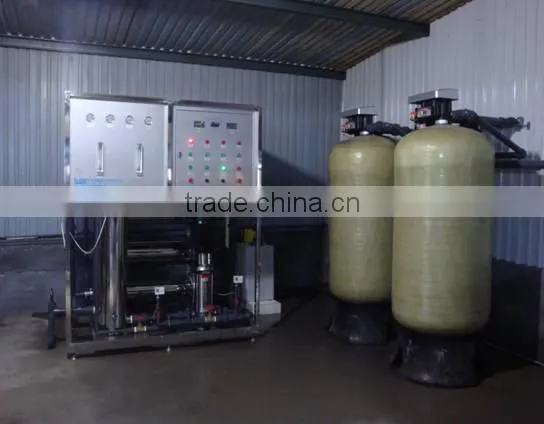

electronic water softener
Water softener (water softening system)
Equipment Description:
Full automatic water softeners(full automatic sodium ion exchanger) we develop and produce, mainly take full automatic softening water control valve from USA or domestic famous brands as dominant.
Except from requiring labor to supply salinity, other procedures of the equipment operate automatically.
Configuration mode like these: single tanktwo-tankmulti-tank, Control mode can be devided into time control type and flow control type (user can choose domestic manual, semi-automatic control plant), unit production ranges from 0.05T/H to 500T/H
Characteristics and advantages:
1,High degree of automation, stable conditions of supplying water, long servicelife, automatic in whole course, only needs labor to add salt in regular.
2, High effeciency,low energy-consumption,economic operating cost. as whole design is reasonable, It makes exchange ability of resin put into great play. various energy index of the equipment itself is significantly lower than ordinary softener, self-control equipment does not need special operator, all these bring plenty of convenience to users, and make good economic benefit.
Water consumption: < 2% of water production
Salt consumption: regenerate one litre resin need about 160-240g salt, concrete salt consumption need to be determined according to user’s raw water quality index.
Electronic consumption: 3W-40W, electronic consumption only comes up to 1% of general water softening plant because it does not need salt pump and use 220V general lighting power supply
3, Equipments structure is compact, occupy less foot-print, it need no special equipment basis, can be placed directly on flat floor.
4, User-friendly. it’s simple and easy to installdebugoperate, with its control components stable function, allows users not to have worries later on. corrosion-resistant, anti-pollution, lead-free brass control valves. It is held internally non-poisonous PE plastic exchange tank of carbon steel corrosion,stainless steel pot or winded fiber-glass exchanging pot, PE plastic or fiber-glass salt box, all these is enough to guarantee the equipment corrosion,anti-pollution,non-toxic,tasteless and superior function of non-harm.
Application
Like boiler water, cycle cooling water, and preparation of air conditioning water, heat exchanger, Hotels and restaurants, foods and Chemical industry, Laundry and dyeing, Medical and health, etc
Equipments type selection
Model |
Rating flow(T/h) |
Resin container (DXH,mm) |
Resin ammunition(L) |
Salt dissolver (DXH) |
Connecting Caliber (inch) |
Size (mm) |
FRH-0.1Z |
0.05-0.3 |
Φ205X445 |
8 |
25 |
0.6 |
Φ205X605 |
FRH-0.5Z |
0.1-0.5 |
Φ200X1100 |
25 |
25 |
0.75 |
Φ205X1400 |
FRH-1.5Z |
0.5-1.5 |
Φ250X1350 |
50 |
200 |
0.75 |
Φ255x1600 |
FRH-2.0Z |
1-2 |
Φ300X1650 |
75 |
200 |
1 |
Φ300x2200 |
FRH-3.0Z |
2-3 |
Φ350X160 |
100 |
200 |
1 |
Φ355x2200 |
FRH-4.0Z |
3-4 |
Φ400X1650 |
125 |
300 |
1 |
Φ640x2200 |
FRH-6.0Z |
4-6 |
Φ500X1800 |
225 |
300 |
1 |
Φ600x2300 |
FRH-8.0Z |
6-8 |
Φ600X1800 |
300 |
500 |
1.5 |
Φ600x2300 |
FRH-12Z |
8-12 |
Φ750X1800 |
550 |
500 |
2 |
Φ750x2300 |
FRH-18Z |
12-18 |
Φ900X1800 |
700 |
500 |
2 |
Φ900x2300 |
FRH-22Z |
18-22 |
Φ1000X1800 |
850 |
1000 |
2 |
Φ1000x2300 |
FRH-30Z |
22-30 |
Φ1200X1800 |
1350 |
2000 |
3 |
Φ1200x2300 |
FRH-40Z |
30-40 |
Φ1400X2400 |
2000 |
2000 |
3 |
Φ1000x2900 |
FRH-50Z |
40-50 |
Φ1500X2400 |
2300 |
2000 |
3 |
Φ1500x2900 |
Remarks(Φ means diameter)
1,Design condition: inlet water hardness<8mmol/L; Producing water hardness<0.03mmol/L;exchanging speed:20-30m/h
2,The system is matched with USA Fleck time type controller and multiway valve, also can install flow type controller and multiway valve or USA Autotrol controller and multiway valve.
3,The system can be used integrated with Multi Media Filteractive carbon filter to adapt much worse raw water quality.
