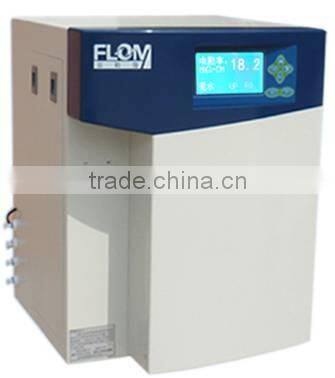

Help CenterEDI Series Lab RO Water System
Related Products
Specifications
Bottom fitted with wheelsWithout chemical reagent regeneration
Stable and reliable operation
Small floor coverage
Lab Standard Reagent Type Ultrapure Water Purifier(single stage RO)
FDY0502-E-UV FDY1002-E-UV FDY1502-E-UV FDY2002-E-UV
FDY3002-E-UV FDY4002-E-UV FDY5002-E-UV FDY6002-E-UV
FDY8002-E-UV
Characteristics
Known as a continuous electro-deionization technique,EDI is producing ultra-pure water with the combination of technologies of ion exchange, ion-exchange membrane and ion electromigration together, which is the world's most advanced water treatment technology at present, with merits of continuous water, dispenses with acid and alkali regeneration and unattended operation.
Flom EDI series ultra- pure water machines, with integrated use of RO and EDI technologies, produce continuous pure water and ultra-pure water with tap water as inlet water.Its water yield is up to 20L per hour,with its modular design, operation and management easier. Due to good economic returns, low running costs, our products represent the developing direction of energy-saving and low consumption in water treatment industry.
Bottom fitted with wheels, easy moved and placed.
A clean, non-polluted production processing is featured, and dispenses with chemical reagent regeneration.
Continuous high ultra- pure water of stable quality is acquired,without machine halt for regeneration.
Stable and reliable operation, easy to maintain.
Small floor coverage can save sit construciton expenses.
Techinical parameters
| Spec | FDY(05-80)02-E-UV |
Inlet water(feed water) |
general municipal tap water |
Water production |
5-80L/h |
Water flow rate |
1-2.0L/min |
Working conditions |
1.Inlet water pressure: 0.15-0.5Mpa 2.Water temperature: 5-40°C 3.Voltage: 220VAC/50HZ |
Producing water quality |
Resistivity/Conductivity:
≥18.2MΩ.cm /≤0.055μS/cm |
Total Organic Carbon(TOC) |
≤ 1-2 |
Microbe(bacteria) |
< 1 |
Pyrogen(Endotoxin) |
- |
Particle(>0.22 μm) |
<1/ml |
Metal cation |
Fe,Al,Cr,Ni,Cu<0.005ppb Zn,K<0.02ppb, Na<0.01ppb |
Anion |
Cl-,SO42-<0.01ppb,NO2-,NO3-<0.02ppb |
Reactive Silica(SiO2) |
<0.01 |
Absorbancy(254nm,1cm optical length) |
<0.001 |
Dimension |
430*500*560mm(Length*Width*Height) |
Net weight |
40KG |
Application
FDY-E( Low Organic Type):Applied in ion chromatography, analysis of trace metals, atomic emission spectrometry, preparation of buffer solution, high-purity standard solution, quantitative analysis of microelements , (HPLC) high performance liquid chromatography, toxicity test, analysis of trace organic substance, TOC analysis, IC, GC/MS, or ICP/MS analysis.
Shippping: by air or sea
Packing: Wooden case
We are a OEM producer and are able to customize products as per client's need.
As a high-tech enterprise, Qingdao FLOM Technology Co., Ltd is engaged in lab equipments R & D, production, sale, and service.
Controlling technology, over technology! FLOM has introduced internationally advanced water purification technology and been being specialized in R&D of lab pure water machines, ultrapure water machines, lab glassware washing machines, tangential flow membrane separation systems, snow refrigeration machines, EDI and other experimental analytical instruments.
Our company has leading management modes, extensive researching experiences, strong technical support and perfect after-sale service systems, paying consistent attentions to development and innovation, as well as putting quality and services in the first place all along.
"High efficiency, energy saving, environmental" is the constant product concepts of FLOM. Our products are widely used in daily life, environmental protection, research and education, medical disease controlling, petrochemicals, beverages and foods, agriculture and breeding industries.
From the beginning, FLOM has been standing on solid ground and continuing to move forward. By now, FLOM has achieved good market performance, with products exported to South Korea, Japan, Sultan and other countries and regions.
As a well-known brand of the lab instruments, with the unique patented technology, reliable product quality and attentive services, FLOM has won widely recognition and good reputation and become one of the best lab instrument manufacturers and suppliers.
L/C or T/T can be accepted.
