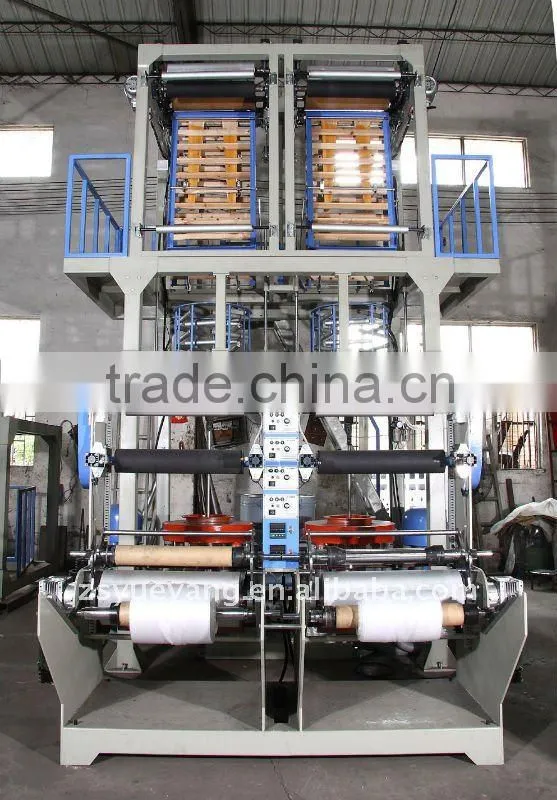

Double Head Film Blowing Machine

Name: Double Head Film Blowing Machine
Brand: OVERSEA
SKU: 104813239
Availability: InStock

US$ 16,000 - 26,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Film

Plastic Processed:

Zhongshan Oversea Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shunde

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Film

Plastic Processed PE

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Guangdong, China

Brand Name OVERSEA

Model Number SJ

Specifications

1)User Friendly
2)High efficiency
3)Low price
4)1 year warranty
5)widly use in producing film ,and save material

Features :Reasonable design ,beautiful shape,and equipped with advanced and reliable accessory equipment .

Double Head Film Blowing Machine

Model	Units	SJ55-2-600	SJ60-2-800	SJ65-2-1000
Suitable Material		HDPE-LDPE	HDPE-LDPE	HDPE-LDPE
Max.Film Width	mm	580	780	980
Film Thickness	mm	0.008-0.08	0.008-0.08	0.008-0.08
Screw Diameter	mm	55	60	65
Screw L/D Ratio	L/D	32:1	32:1	32:1
Screw &Barrel Material		38CrMOALA	38CrMOALA	38CrMOALA

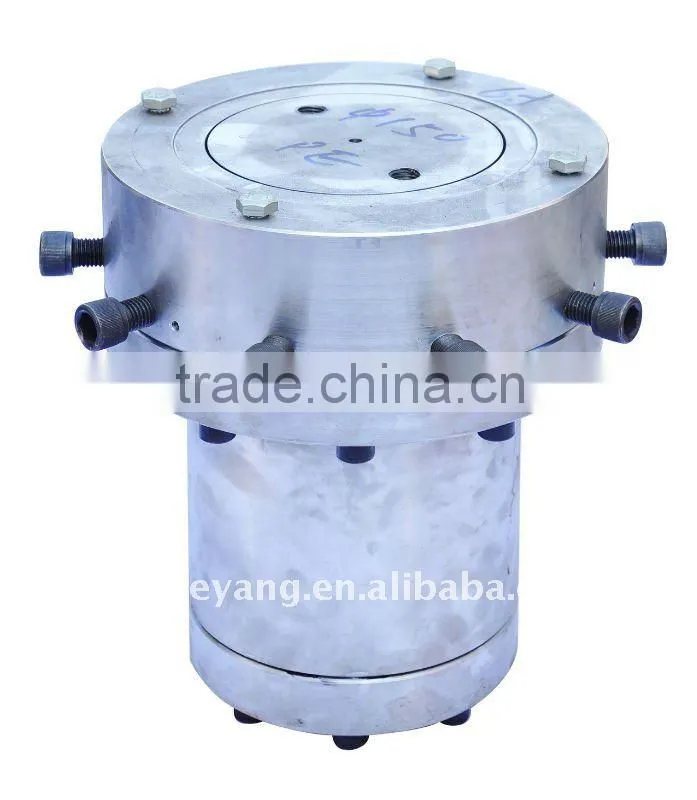

Die Diameter	mm	HDPE φ50 LDPE φ150	HDPE φ80 LDPE φ150	HDPE φ100 LDPE φ180
Temperature Control Point	zone	8	8	8
Temperature Control Of Barrel	°C	3	3	3
Temperature Control Of Nose	°C	2	2	2
Main Motor Power	KW	22	30	37
Heating Capacity	KW	22	25	28
Barrel Cooling Fan	KW	0.12*2	0.12*2	0.12*2
Cooling Fan Power	KW	1.1*2	1.1*2	1.1*2
Air-ring Diameter	mm	HDPE φ110 LDPE φ300	HDPE φ120 LDPE φ300	HDPE φ150 LDPE φ350
Max. Output	kg/h	HDPE 60 LDPE 120	HDPE 80 LDPE 160	HDPE 100 LDPE 120
Take-off Roll Length	mm	600	800	1000
Take-off Motor Power	KW	1.1*2	1.1*2	1.1*2
Take-off Speed	m/min	8-80	8-80	8-80
Take-up Roller Width	mm	600	800	1000
Max. Winding Diameter	mm	650	650	650
Take up Motor Moment	kgf.cm	50	50	100
Machine Dimensions (LMH)	cm	400200400	450250420	350500460
Packing Dimensions (LMH)	cm	180210240	200210240	200210250
Net Weight /Gross Weight	kg	3000	3500	3800
