Specifications
screw air compressor1.Power:AC Power
2.Air Capacity:23.5-21.5M3/min
3.Air pressure:0.7-1.3Mpa

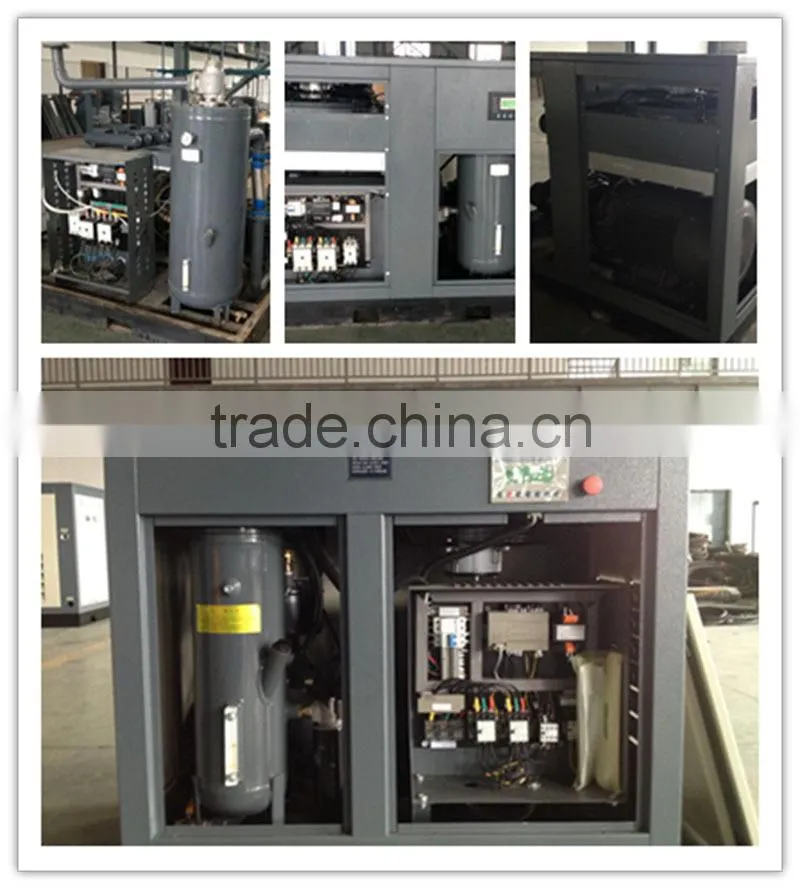

Statinary configuration and Ac power power source 330hp screw air compressor
Specifications
Qiankun screw air compressor
Power:4kw -250kw
capacity:0.6m3/min - 43m3/min
pressure: 7-17bar
CE,ISO9001 approved
Total auto-control system
Data protected function
Real-time running display
Setting popedom function
Germany airend
Color: Any color in Pantone color is available
Brand: OEM or Qiankun
Delivery time: 15 days
Price term: Fob Ningbo
Payment terms: 30% TT deposit in advance payment and 70% TT before shipment
Basic Info.
Configuration: | Stationary |
Power Source: | AC Power |
Type: | Screw |
Export Markets: | Southeast Asia, Africa, Mid East |
Additional Info.
HS Code: | 8414809090 |
Production Capacity: | 50sets/Month |
Product Description
Stationery rotary screw air compressor DC100A(air-cooled air compressor)
1. Reliable quality, competitive price
2. German Air end, approved ISO9001 manufacturer
3. Perfect service network
4. Easy to install, operate and maintain.
5. Low noise, Low energy consumption, Low running, Low maintenance cost.
6. Aptitude and intelligent Control, PLC control, LCD displayer.
Model | Air pressure | Air capacity | Noise | Exit temperature | Oil content | Cooled by | Motor power | Weight | Dimension(mm) |
QK22 | 0.7-1.3Mpa | 3.8-2.33M3 | 70DB | ≤ ambient+8 ° | ≤ 2 PPM | air cooling | 20KW(30HP) | 630kg | 1000*1050*1400 |
QK37 | 0.7-1.3Mpa | 6.62-4.8M3 | 70DB | ≤ ambient+8 ° | ≤ 2 PPM | air cooling | 37KW(50HP) | 860kg | 1560*950*1480 |
QK45 | 0.7-1.3Mpa | 7.3-5.2M3 | 70DB | ≤ ambient+8 ° | ≤ 2 PPM | air cooling | 45KW(60HP) | 900kg | 2004*804*1636 |
QK55 | 0.7-1.3Mpa | 10.53-7.5M3 | 71DB | ≤ ambient+8 ° | ≤ 2 PPM | air cooling | 55KW(75HP) | 1100kg | 2004*804*1636 |
QK75 | 0.7-1.3Mpa | 13.6-9.8M3 | 73DB | ≤ ambient+8 ° | ≤ 2 PPM | air cooling | 75KW(100HP) | 2300kg | 1965*1320*1655 |
QK90 | 0.7-1.3Mpa | 17.8-12.7M3 | 75DB | ≤ ambient+8 ° | ≤ 2 PPM | air cooling | 90KW(125HP) | 2800kg | 1965*1320*1655 |
QK110 | 0.7-1.3Mpa | 20.9-14.0M3 | 75DB | ≤ ambient+8 ° | ≤ 2 PPM | air cooling | 110KW(150HP) | 3100kg | 1965*1320*1655 |
QK132 | 0.7-1.3Mpa | 23.5-21.5M3 | 74DB | ≤ ambient+8 ° | ≤ 2 PPM | air cooling | 132KW(180HP) | 3000kg | 1965*1320*165 |
Qiankun Machinery are one of the most professional manufacturers of Air Compressor in China, supplying Piston Compressors (including Direct-driven and Belt-driven series), Screw Compressors , Air Dryers, Quiet Cabinets (Silent Compressors), Air Tanks, Precise Filters, and relevant spare parts. We keep the Quality First principle in our manufacturing under ISO9001 systerm. With many years experience, we are now exporting to countries all over the world

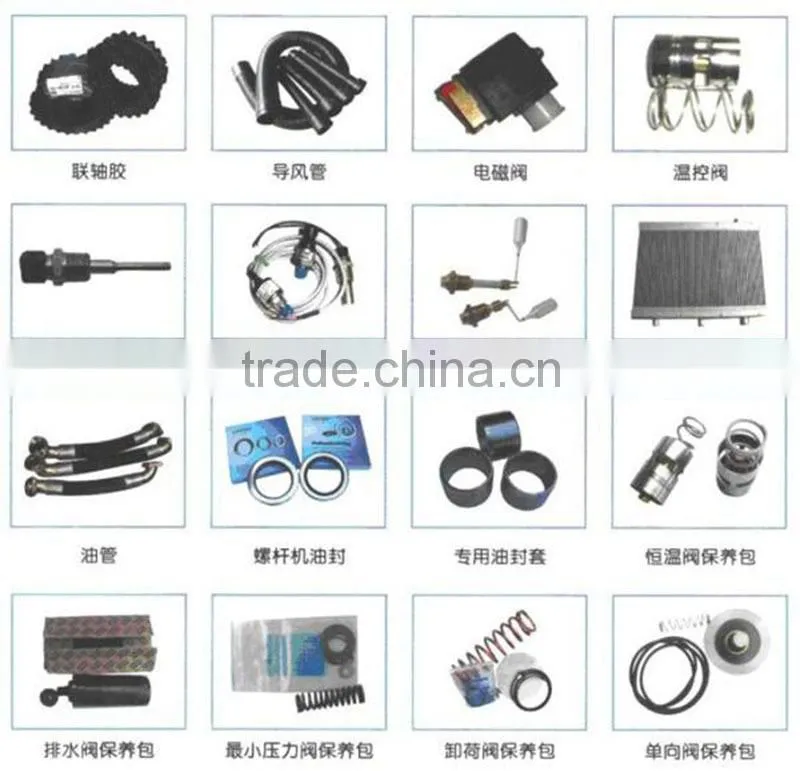

We have our own spare parts department
certificates
