Lubricated Lubrication Style and Yes Mute screw electric air compressor

Specifications

electric air compressor
1.Power:AC Power
2.Air Capacity:23.5-21.5M3/min
3.Air pressure:0.7-1.3Mpa



  chinese high quality competitive price of electric screw compressor

Specifications

Qiankun screw air compressor
Power:4kw -250kw
capacity:0.6m3/min - 43m3/min
pressure: 7-17bar
CE,ISO9001 approved

Total auto-control system

Data protected function

Real-time running display

Setting popedom function

Germany airend



Color: Any color in Pantone color is available

Brand: OEM or Qiankun

Delivery time: 15 days

Price term: Fob Ningbo

Payment terms: 30% TT deposit in advance payment and 70% TT before shipment







Basic Info.

Configuration:	Stationary
Power Source:	AC Power
Type:	Screw
Export Markets:	Southeast Asia, Africa, Mid East

Additional Info.

HS Code:	8414809090
Production Capacity:	50sets/Month

Product Description

Stationery rotary screw air compressor DC100A(air-cooled air compressor)
1. Reliable quality, competitive price
2. German Air end, approved ISO9001 manufacturer
3. Perfect service network
4. Easy to install, operate and maintain.
5. Low noise, Low energy consumption, Low running, Low maintenance cost.
6. Aptitude and intelligent Control, PLC control, LCD displayer.



Model	Air pressure	Air capacity	Noise	Exit temperature	Oil content	Cooled by	Motor power	Weight	Dimension(mm)
QK22	0.7-1.3Mpa	3.8-2.33M3	70DB	≤ ambient+8 °	≤ 2 PPM	air cooling	20KW(30HP)	630kg	1000*1050*1400
QK37	0.7-1.3Mpa	6.62-4.8M3	70DB	≤ ambient+8 °	≤ 2 PPM	air cooling	37KW(50HP)	860kg	1560*950*1480
QK45	0.7-1.3Mpa	7.3-5.2M3	70DB	≤ ambient+8 °	≤ 2 PPM	air cooling	45KW(60HP)	900kg	2004*804*1636
QK55	0.7-1.3Mpa	10.53-7.5M3	71DB	≤ ambient+8 °	≤ 2 PPM	air cooling	55KW(75HP)	1100kg	2004*804*1636
QK75	0.7-1.3Mpa	13.6-9.8M3	73DB	≤ ambient+8 °	≤ 2 PPM	air cooling	75KW(100HP)	2300kg	1965*1320*1655
QK90	0.7-1.3Mpa	17.8-12.7M3	75DB	≤ ambient+8 °	≤ 2 PPM	air cooling	90KW(125HP)	2800kg	1965*1320*1655
QK110	0.7-1.3Mpa	20.9-14.0M3	75DB	≤ ambient+8 °	≤ 2 PPM	air cooling	110KW(150HP)	3100kg	1965*1320*1655
QK132	0.7-1.3Mpa	23.5-21.5M3	74DB	≤ ambient+8 °	≤ 2 PPM	air cooling	132KW(180HP)	3000kg	1965*1320*165



Qiankun Machinery are one of the most professional manufacturers of Air Compressor in China, supplying Piston Compressors (including Direct-driven and Belt-driven series), Screw Compressors , Air Dryers, Quiet Cabinets (Silent Compressors), Air Tanks, Precise Filters, and relevant spare parts. We keep the Quality First principle in our manufacturing under ISO9001 systerm. With many years experience, we are now exporting to countries all over the world

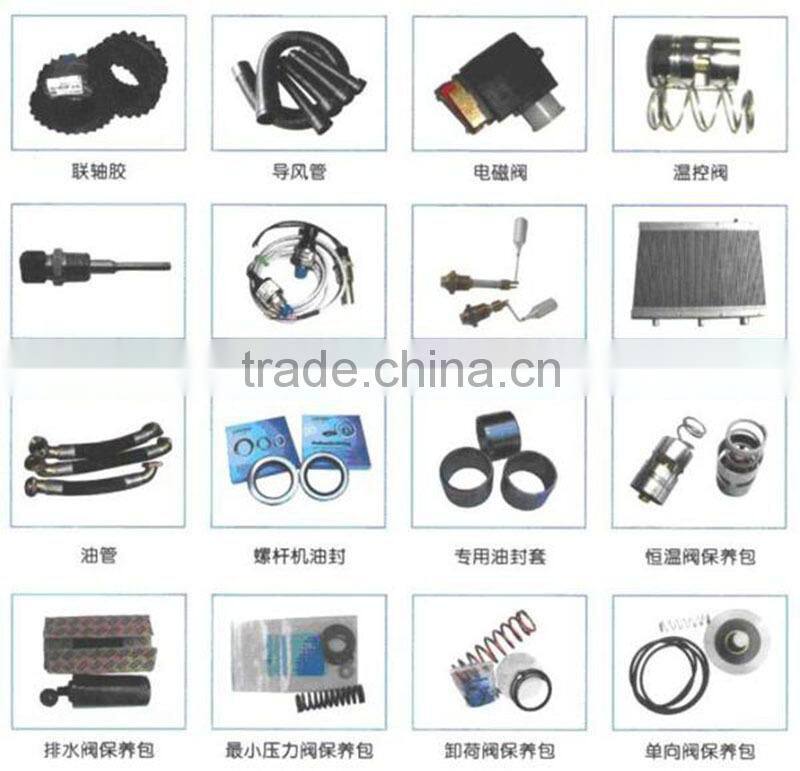

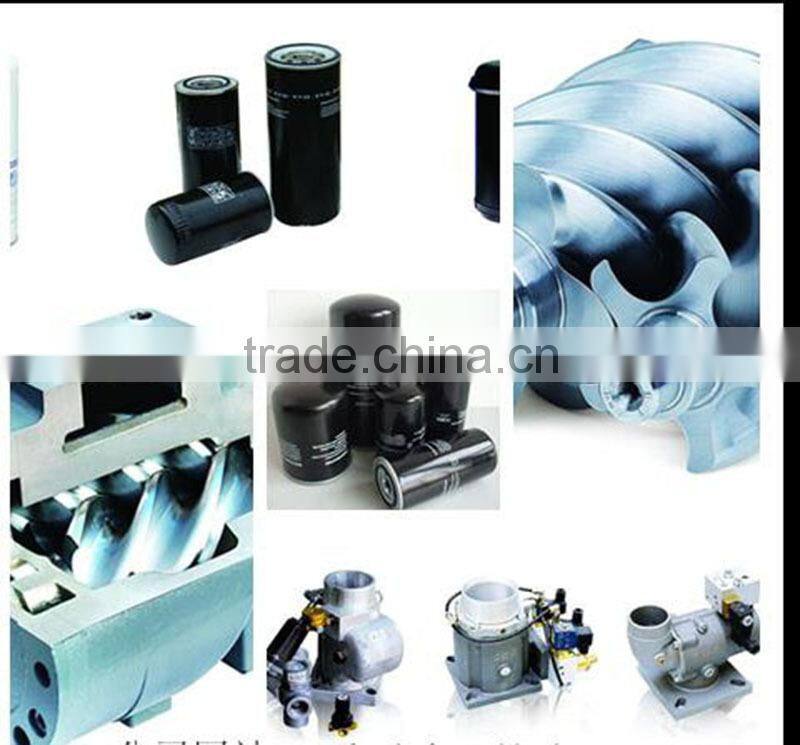

We have our own spare parts department
