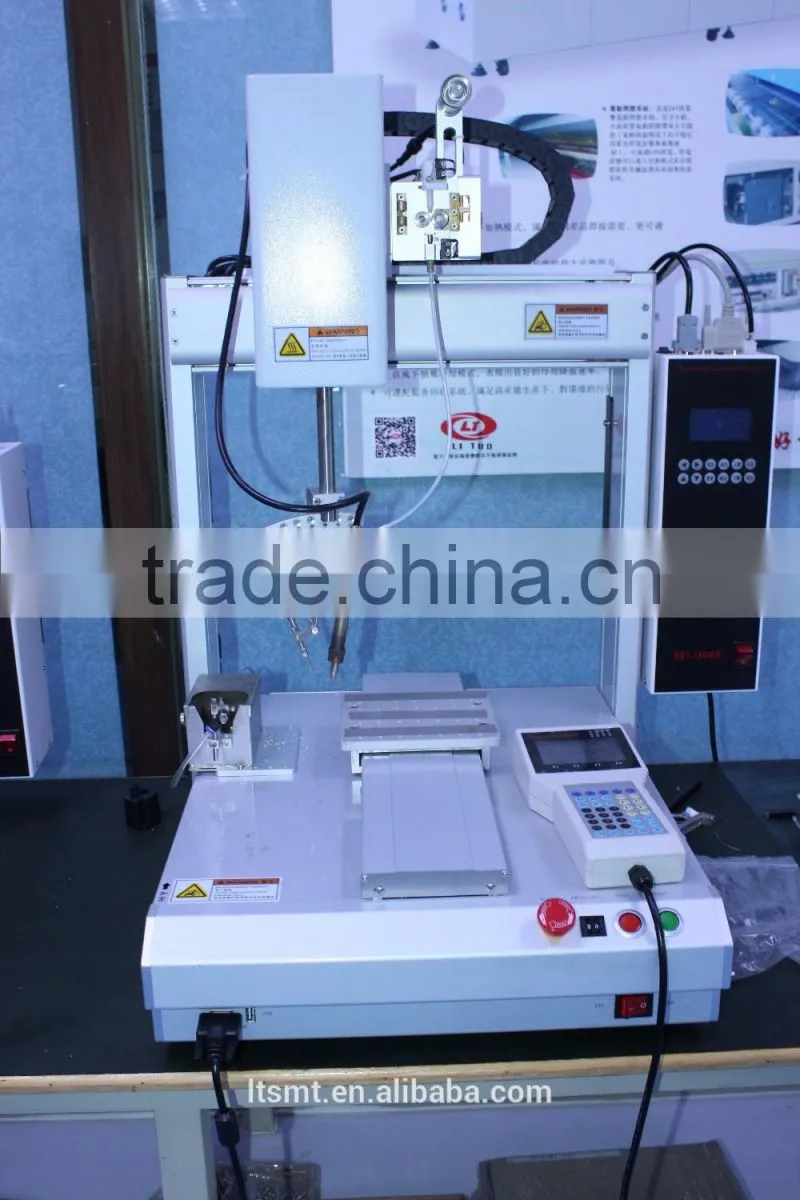

Help CenterASR-3320 3 Axis Automatic Desktop Soldering Robot
Related Products
-
Computer Lead-free Dual Wave Soldering Machine(Medium Wave)US$ 1.00 - 1.00MOQ: 1 Set -
Lead Free Wave Soldering Machine DW300B/T/PCUS$ 16000.00 - 20000.00MOQ: 1 Set
-
Mini Type Energy Saving Hot Air Wave Soldering Machine (touch Screen)US$ 1.00 - 1.00MOQ: 1 Set
-
Mini Wave Soldering Machine DS250B/T/PCUS$ 1.00 - 13000.00MOQ: 1 Set
-
MiNi Lead Free Wave Soldering MachineUS$ 1.00 - 13000.00MOQ: 1 Set

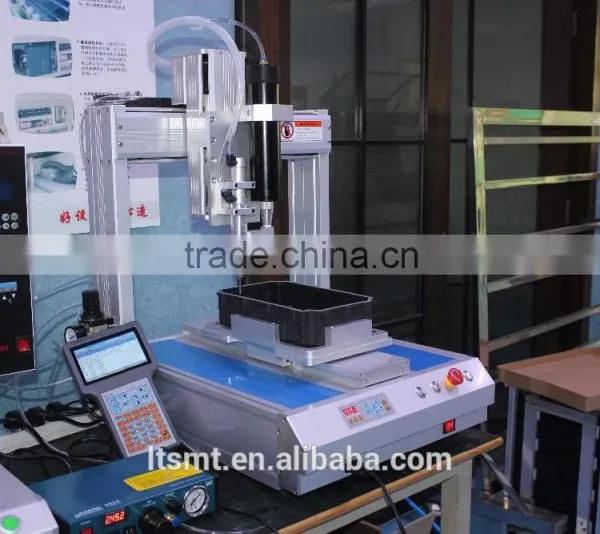

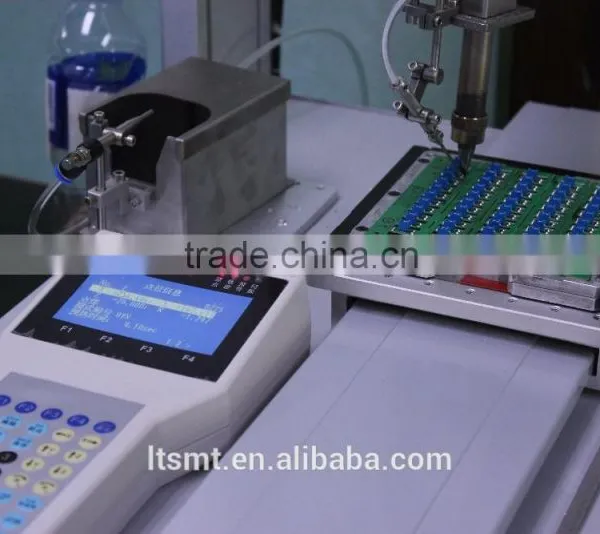

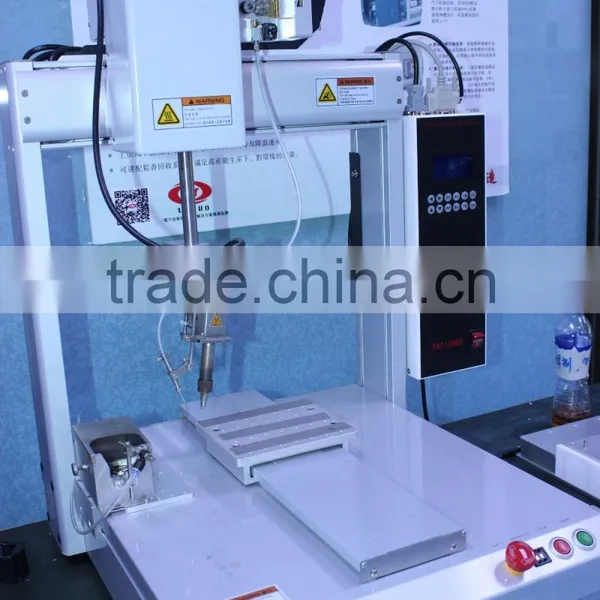

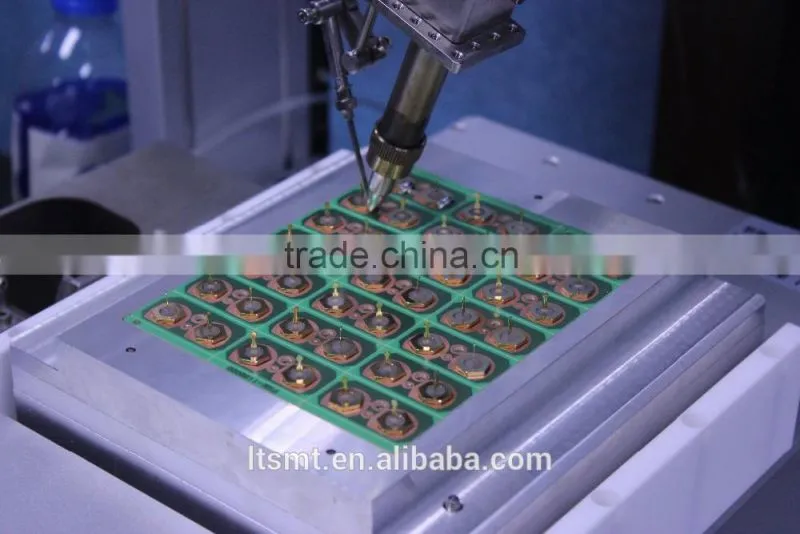

Mainly used in electronics manufacturing, mainly for manually and other production equipment difficult to achieve solder process technology and processing, especially suitable for mixed circuit boards, heat sensitive components, SMT-stage process sensitive devices welding, widely used in PCB wire, charger plug welding, wire connectors, DC terminals Makassar, LED lamp with connection and other fields. Automatic soldering robots instead of manual welding, improve work efficiency and improve the quality of welding.
ASR Series Desktop Soldering Robot is to meet the wave and reflow and wave solder dipping system and choose the job can not be welded over welding equipment.
ASR Series four-axis automatic soldering machine automatic soldering machine on the basis of three-axis on the increase in the heating module rotation axis shaft [R] section, can be achieved basically no dead ends welding, spot welding and suitable for drag soldering the same plane, such as PCB , dividers, etc.
The main technical parameters:
Travel: X 300mm Y 300mm Z 100mm R ± 360 °
Speed: X 5-800mm / sec Y Z R ± 360 ° / sec
Repeatability: X ± 0.02mm YZR ± 0.02 °
Load workload load 3kg 5kg tool
Dimensions 660 * 610 * 880mm
Weight: 52kg
Body forms: whole aluminum alloy, surface electrophoresis
Drive: belt + screw
Motor Type / power: two-phase stepper / 3A
Drive: Stepper Drives
Power: 240V / 50Hz
Rated power: Max.300W
Drive power: voltage 24VDC
Current: Max.3.5A / Axis

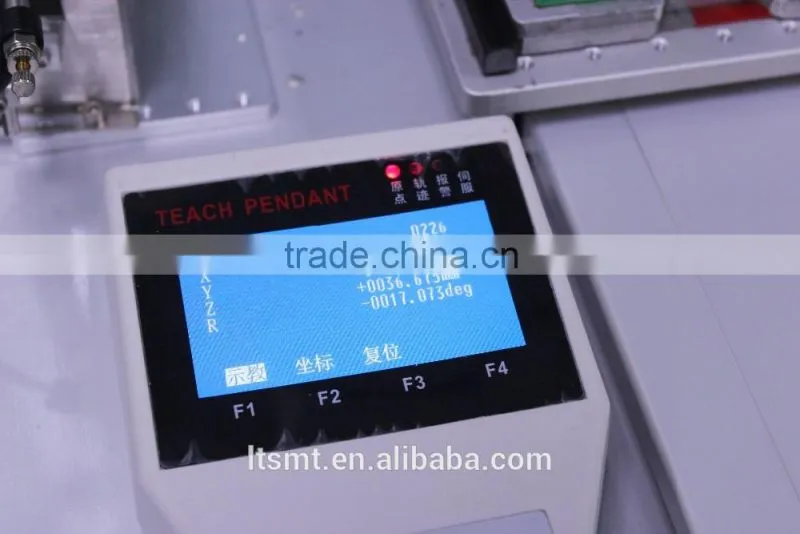

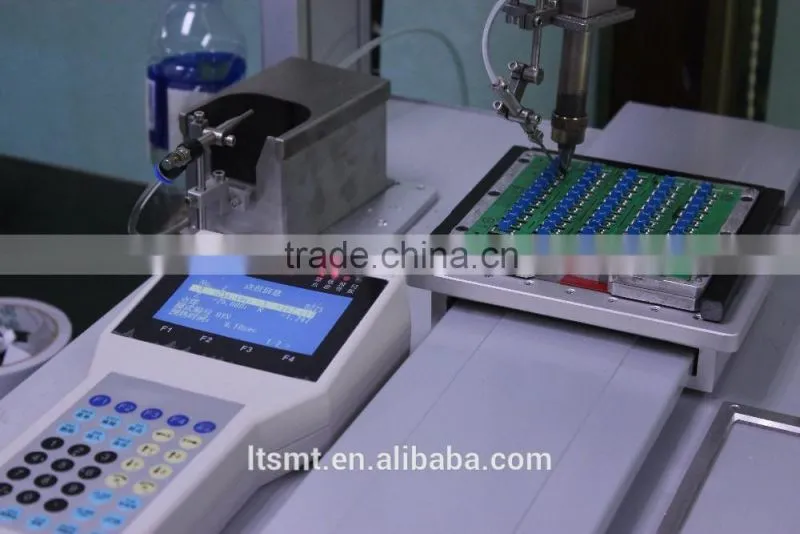

Programming mode: Direct Inward / Teach
Sport mode: PTP, Line, Arc
Program capacity: points file ≤64
Point ≤999
Communication: RS-232 / USB
I / O Output: 8 in 16 out

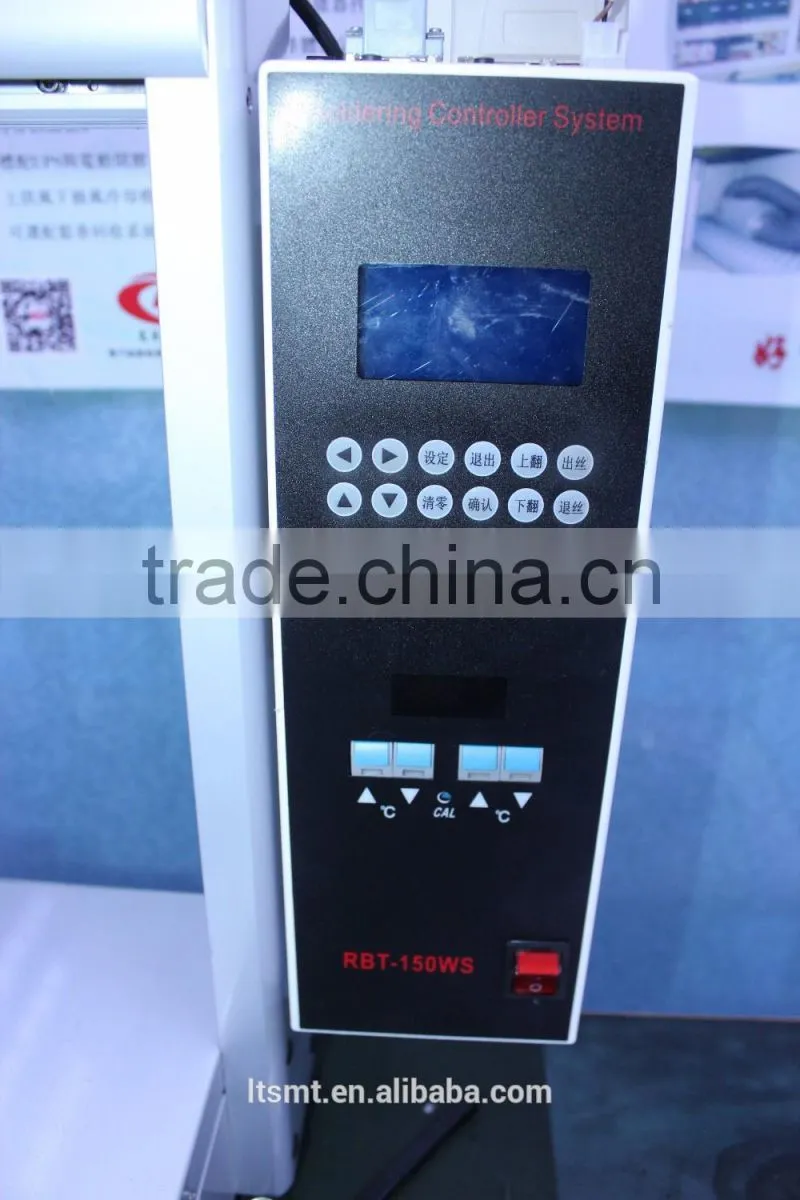

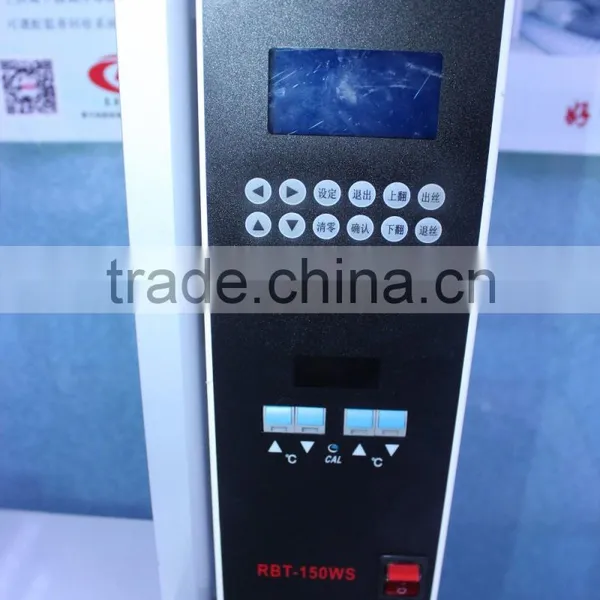

Thermostat Type: 50-500 ℃ [150W]
Heater: direct thermal 150W
For wire mode: 0.3-0.5mm, 0.5-1.0mm, 1.0-1.6mm
Storage expansion: support Flash
