SMT chip mounter/smt placement machine/led pick&place machine

 Multifunctional Mounter from China, with accurate, stable, efficient, convenient and prominent features, leading the Chinese domestic market SMT placement machine, the first choice of Chinese Multifunctional Mounter, rival Samsung SM Series Mounter , but also a cost-effective.

Main function configuration:

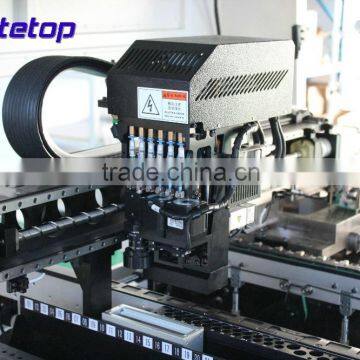

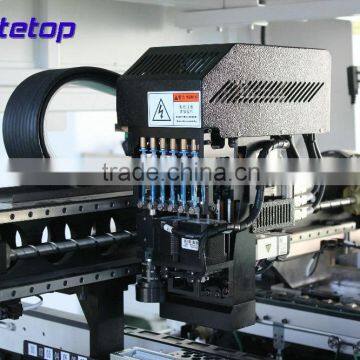

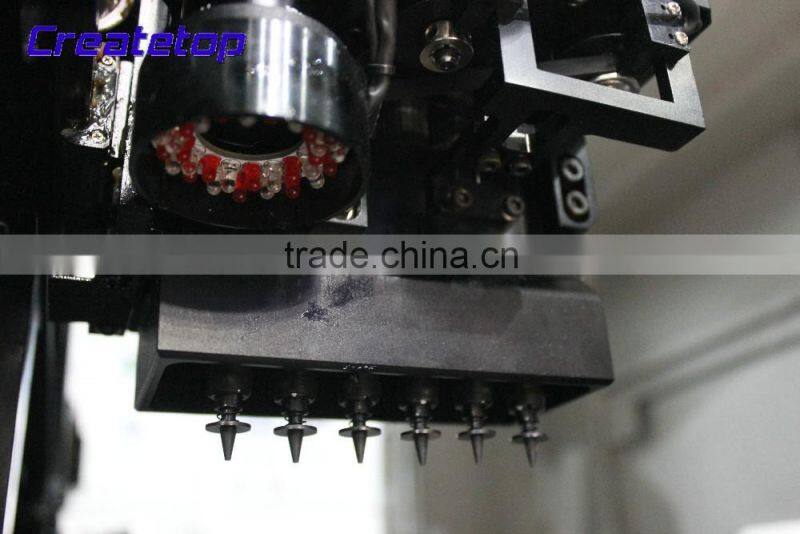

1:One high speed head, six suction nozzle at the same time, the use of flight to identify the way, so that the speed of the paste up to maximize;

2: High precision image recognition system, configuration of large imported camera, precision mount 0.3mm pin spacing QFP, BGA etc.;

3: Minimum mount 0402CHIP, Max IC password 32*25mm;

4: Intelligent automatic replacement of suction nozzle, to meet the fast stickers installed a variety of materials;

5: High precision vision recognition system, ensure the accuracy of the paste is up to ± 0.03mm;

6: High precision stick head adopt integrated structure, Z axis using single slide design principle, reduce the component combination, ensure the assembly accuracy, greatly improve the accuracy of the patch;

7: Combined with overseas original suction nozzle design, improve the rate of sorption of placement machine, greatly reducing because the absorption of bad mouth leads to the bias, will be posted on the loading rate increased to 99.9%;

8:The use of Japan imported servo motion control system, the speed is greatly improved, the performance is more stable;

9: Imported ball screw rod and precision linear guide, high quality matching, greatly improving the accuracy and stability of the equipment, and reduce the noise of the machine, the outer layer of the wire rod with high strength and high wear and wear rare metal as the external coating, effective guarantee its durability;

10:Servo motor with 10000 pulses/RPM control system, the minimum moving distance of 0.004 mm, effectively ensure the placement accuracy;

  One high speed head, six suction nozzle at the same time

Precision Mounting System

 High-end Visual Identiification System

Mounting system for advanced and durable automatic loading and unloading nozzle

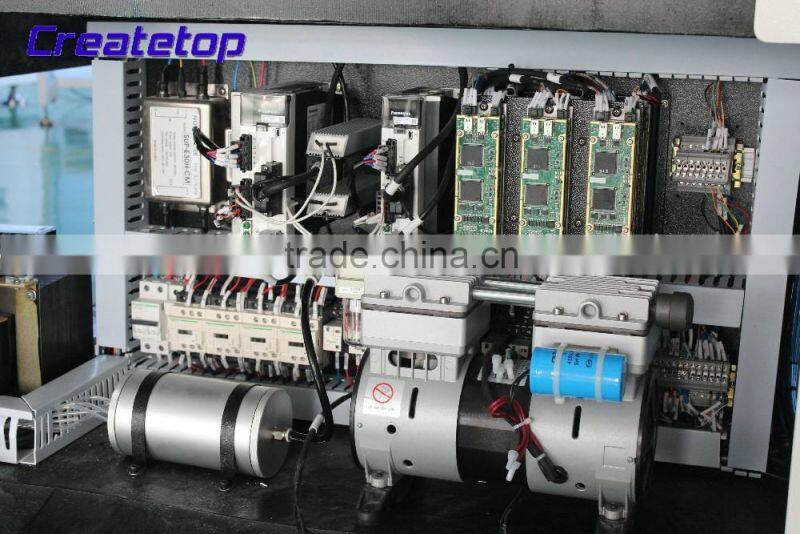

Panasonic servo system + imported vacuum pump + negative pressure storage

Transmission system of "four - stage transmission + two - segment clamping device"
High precision NSK wire rod + guide rail system

Main technical parameters:

1 Machine size: L1372mm*W1284mm*H1452mm

2 Rated power: 1.58KW

3 Shaft number: 1 cantilever *6 shaft

4.PCB: multi point blessing splint

5 Track transmission system: four section type transmission, two segment type clamp

6 Fastest speed: 28000CPH

7.PCB size: 600mm (L) *300mm (W) 1200mm (L) *300mm (W) (optional)

8 Element size: 0402 and above, 0.3mm pin spacing CSP, QFP, PLCC, BGA, etc. (40*40mm)

9 Mount accuracy: + 0.03mm

10.X/Y axis transmission mode: the use of AC servo motor, imported precision ball screw and linear guide

11 - Mount: mount up with matrix function

12 Air pressure: 0.7-1.0MPA

13 Power supply: AC220V/50Hz

14 Weight: 1500KG

Concentrated ,Attentive ,Professional

Accurate ,Precision ,Exact

Quality,Efficient,Advanced

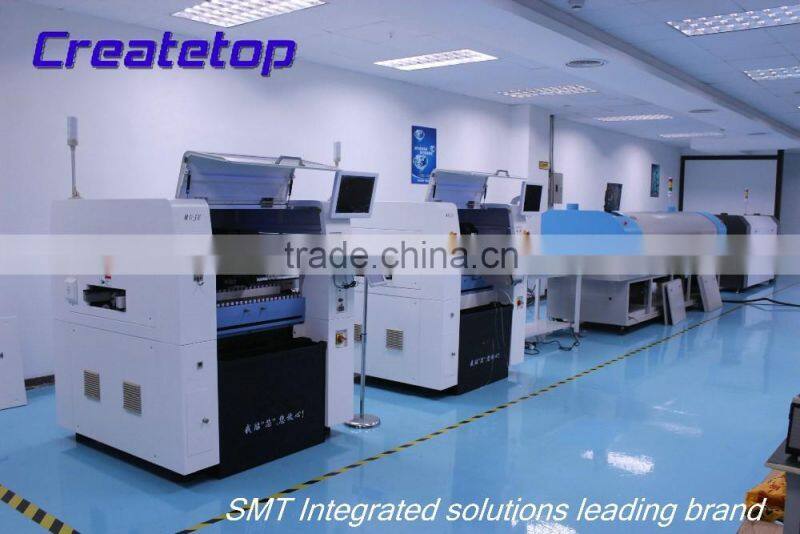

The company has set up the equipment exhibition hall in Shenzhen,
