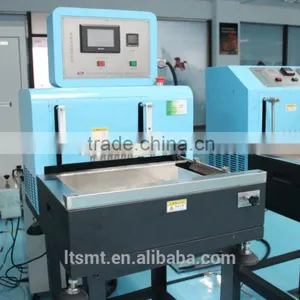

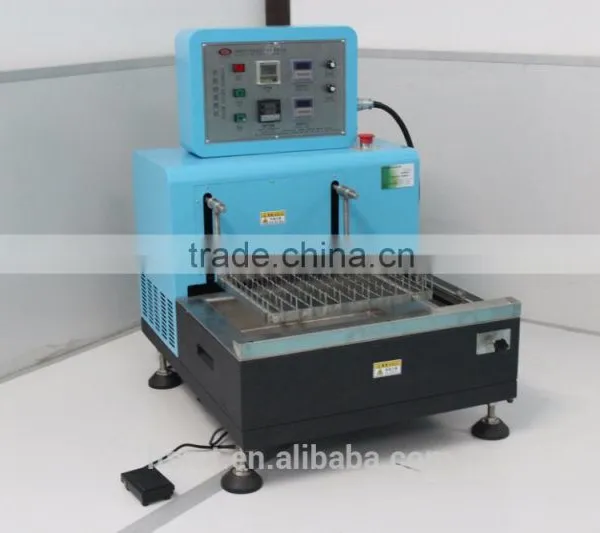

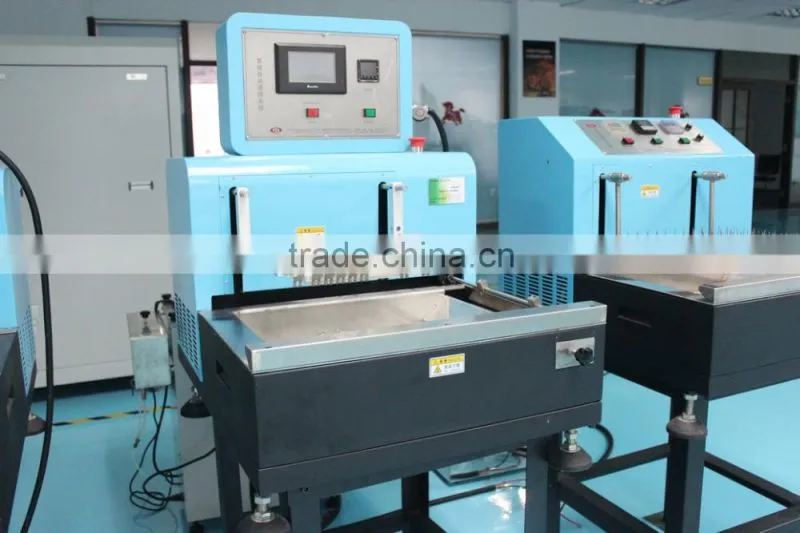

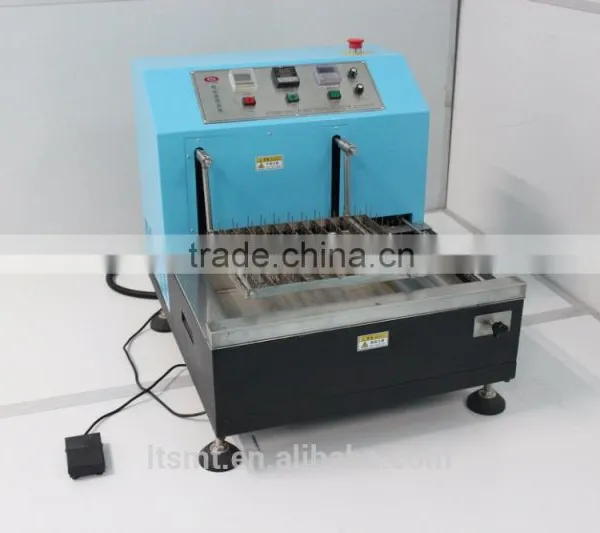

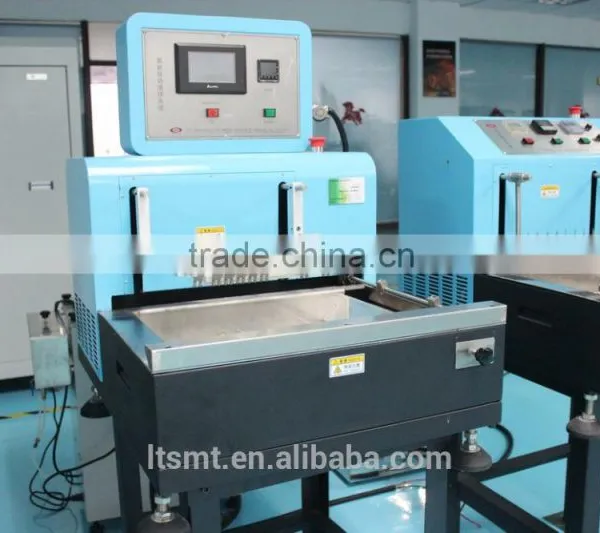

Help CenterAutomatic Dip Welding Machine
Related Products
-
High Precision Screen Printing Machine(1.2 m Lamp With 5050/3528 Strip Lamp)US$ 5300.00 - 5500.00MOQ: 1 Set -
CM Series Intelligent Strip Cutting MachineUS$ 2600.00 - 3200.00MOQ: 1 Set
-
MC61S Advanced Flexible Multifunctional SMT Chip MounterUS$ 1.00 - 1.00MOQ: 1 Set
-
SMT Lean Management Scrap Tape CutterUS$ 2200.00 - 3200.00MOQ: 1 Set
-
Scrap/Reel Tape Cutter CM680 CM480AUS$ 2500.00 - 3200.00MOQ: 1 Set
Main Features
1:Intelligent PLC control, The whole of the welding parameters can be set;
2:Three suit of high-performance motor system, the interlock control fully imitate manual welding operation mode;
3:Meet 20X20MM to 350 * 300MM PCB soldering
4:The fastest speed is10 seconds to dip soldering process completely (which can not have professional and technical personnel to operate)
5:400 degree heat design, meet different soldering materials (can reduce solder inputs effective);
6:Double temperature protection (over temperature protection);
7:Crash protection, the protection status indicator light tips (three sets of motor systems are provided with time protection, will not be blocked due to overheating damage);
8:Slag-cleaning times can set (state tips);
9:Add the functions of preheating and have the freedom choosing whether open the preheating function
10:Ductile iron heating body, the maximum temperature up to 600 degrees without burning plate (longevity Design)
11:Lead-free special steel furnace (high temperature, corrosion control materials, and Switzerland 316L high nickel stainless steel)
12:Optional dip soldering temperature curve test system, all kinds of devices with temperature sensitive devices test for welding and testing
13:Capacity design(80KG-100KG);
14::For 2-45MM device can be welded (or flat tinned)
15:Switcher function, switch-free waiting function (switches program saving function can be set eight times a week)
16:KRC intelligent instrument control + Korea Ivory SSR solid state heating control
17:Enhance productivity and can weld volume products simultaneously; Improve about 5 times compared with manual welding;

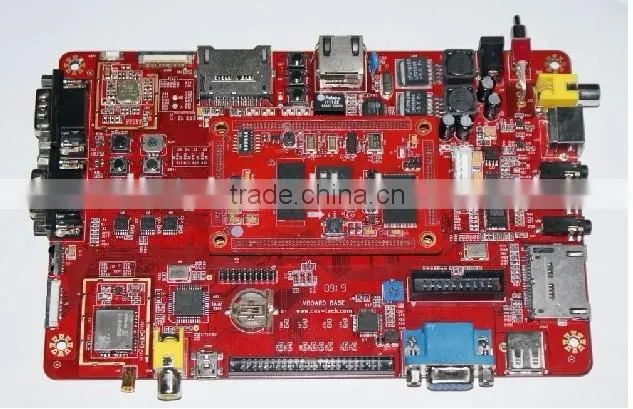

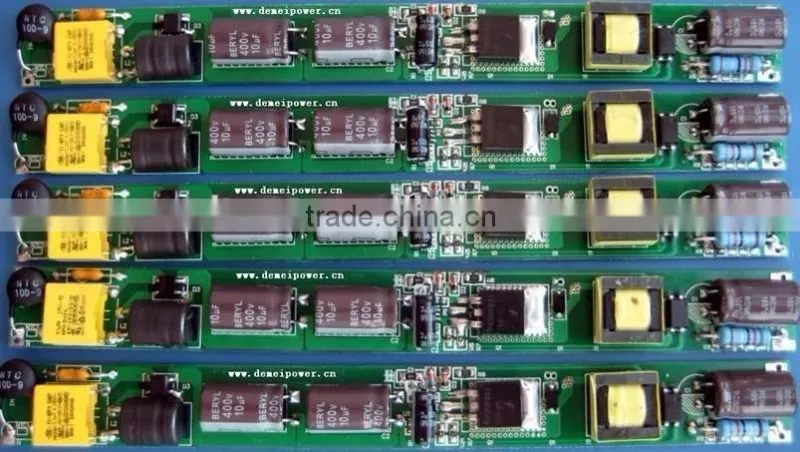

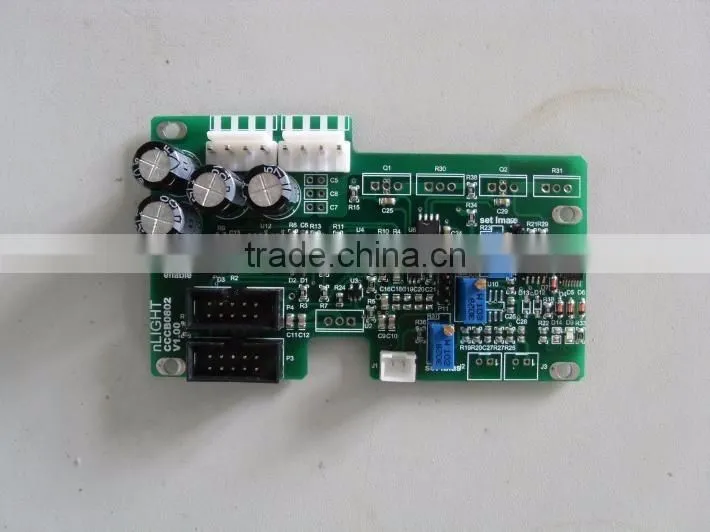

18:Suitable for PCB ,LED,PCB for toy ,transformer and common soldering products with suitable jigs;
Certifications
Detailed Images
Machine Parts
Name: Intelligent PLC control system
Through intelligent PLC centralized control, the program can be optimized to the most advanced dip soldering processes, multi-stage temperature protection and motor over-travel protection, improve the stability of the equipment in the long-term .
Main Features

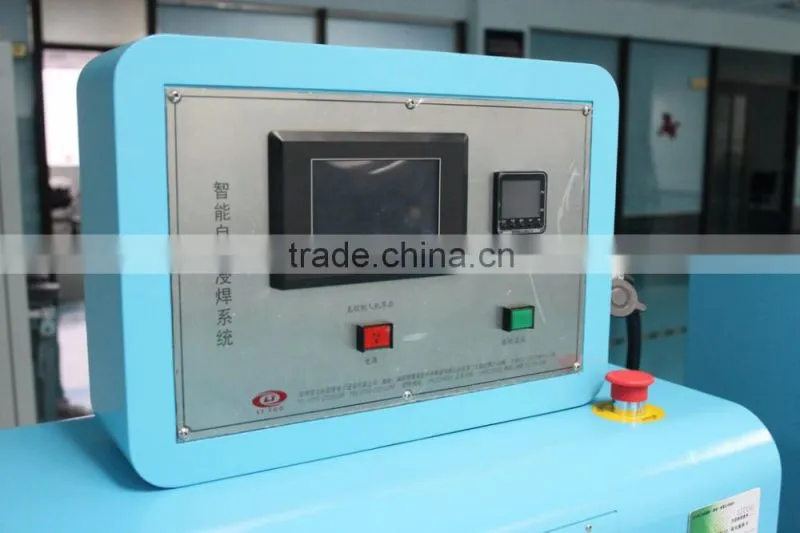

Name: Separate control instrument box design
Control interface design, which can isolate heat source and avoid the influence of smoke and temperature on the accuracy and life of the controller.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
