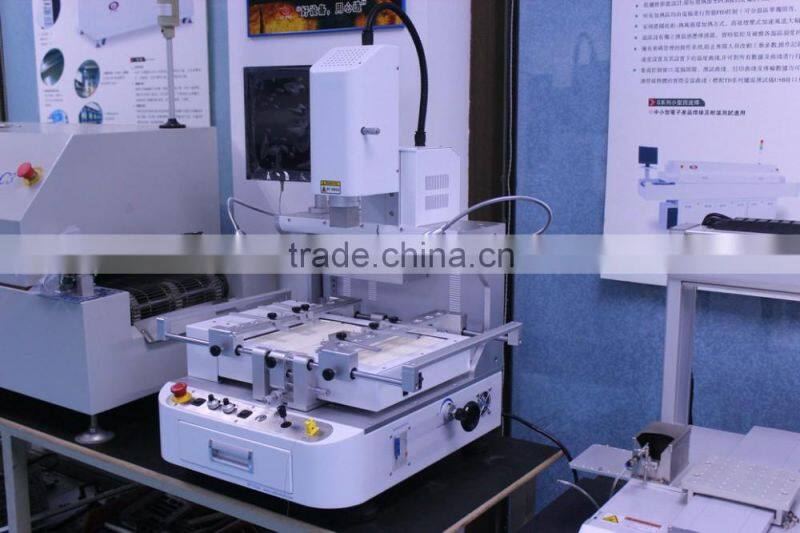

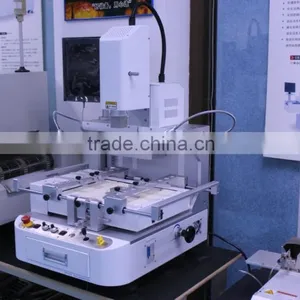

Help CenterSemi-automatic CCD Camera Optical Alignment BGA Rework Station
Related Products
-
Economy and Easy Operate BGA Rework StationUS$ 1.00 - 1000.00MOQ: 1 Set -
LED, SMD Rework Station IC, LED Light Bead Welding Station LED Aluminum Plate Heated Warm-up Platform SMT Chip Rework Heating stUS$ 150.00 - 280.00MOQ: 1 Set
-
SMT Repair Rework Station Digital Constant Temperature Heating PlatformUS$ 150.00 - 250.00MOQ: 1 Set
-
High Quality SMT AOI Machine LT-V610NegotiableMOQ: 1 Set
-
Semi-Automatic BGA Rework Station TG-730A(HD)US$ 1.00 - 10000.00MOQ: 1 Set
Separate three-zone temperature control system
1: 4700W total power
2: 1000W upper heating power (first temperature zone)
3: lower heating power 1000W (second temperature zone)
4: 2700W (about third temperature zone infrared heating plate can be controlled independently)
5: power AC 220V + 10 50/60Hz
6: temperature control system of Dalian electric material
7: dimensions 600 x 640 x 850mm
8: temperature control K type thermocouple closed loop control
9: positioning mode V card slot, with universal fixture
10:PCB Max 430 inch ruler Min50 * 50mm * 400mm;
Application of 11: chip 1 * 1 ~ 80 * 80mm
12: port 1 external temperature
13: machine net weight 65kg
TG-730A can be from the top and bottom of the PCB components locally heated hot air circulation at the same time, supplemented by a large area of infrared heating, can be completely avoided in the process of PCB rework upturned sink through software alone freedom of choice or the upper or lower the heating element, and a combination of upper and lower heat generator free energy, making the double BGA, CCGA, QFN, CSP, LGA, SMD rework and other devices easier. At the same time the external temperature measurement interface to achieve precise detection of temperature at any time of actual collection BGA temperature curve analysis and proofreading.

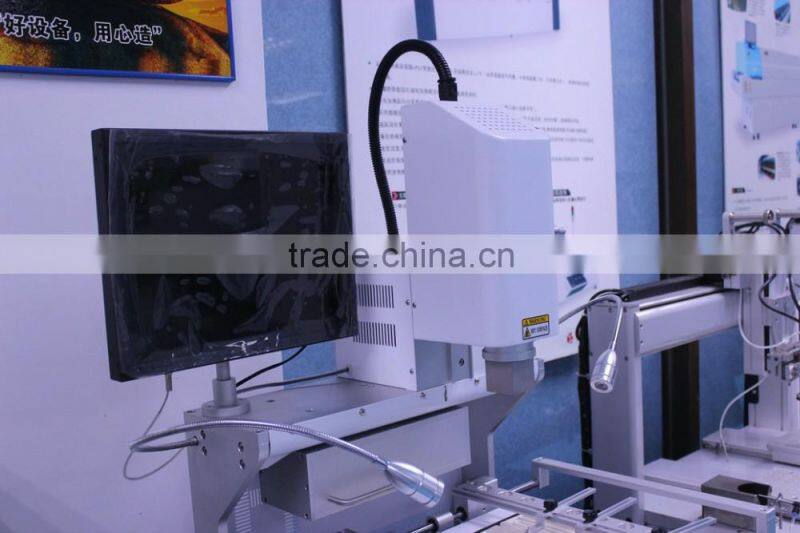

precise optical alignment system
TG-730A optical alignment system image is clear (1080P), up to 200 times the maximum zoom components, precision-mount up to +/- 0.01mm. And has a spectral color, zoom and fine-tuning features, configuration 15 "HD 1080p LCD.

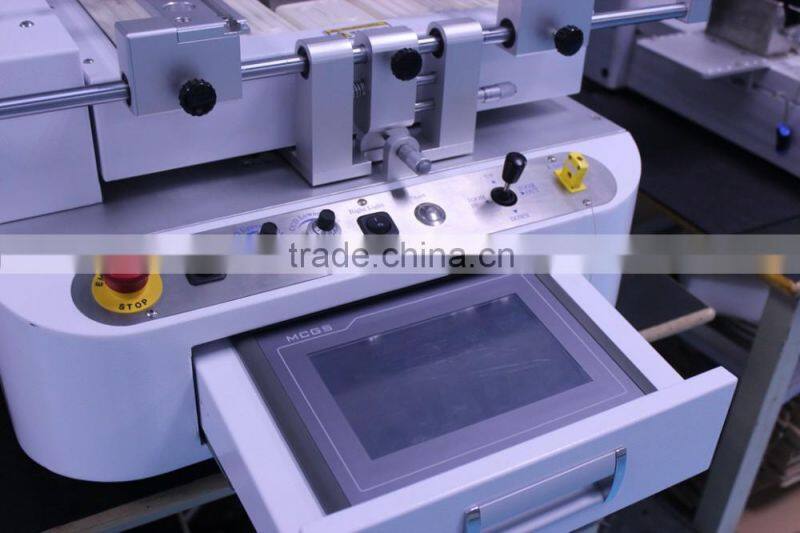

versatile user-friendly operating system
TG-730A uses a touch-screen interface, K-type thermocouple closed loop control and intelligent automatic temperature compensation system. The upper heat limelight and mounting head integration design, with soldering and desoldering functions. While the temperature can be set to 10 of thermostatically controlled heating and 10, and store N groups temperature setting parameters can be called at any time according to different BGA.
superior security features
TG-730A is designed after soldering or desoldering finished with alarm functions, in the case of temperature abuse, the circuit can automatically power, with dual over-temperature protection. Temperature parameters with password protection to prevent arbitrary changes and foolproof security and many other functions, with superior security features to ensure that PCB and components to avoid damage and repair the machine under any abnormal condition itself damaged.
Machine features:
1, embedded industrial computers, high-definition touch screen interface, PLC control, and have instant curve analysis. Real-time display the set and actual temperature curve, and the curve analysis corrected.
2, high-precision K-type thermocouple closed loop control and automatic temperature compensation system, combined PLC and temperature module for the precise control of temperature, maintaining the temperature deviation of ± 2 degrees, while the external temperature measurement interface to achieve precise detection of the temperature, and to achieve accurate analysis of the measured temperature curve and proofreading.

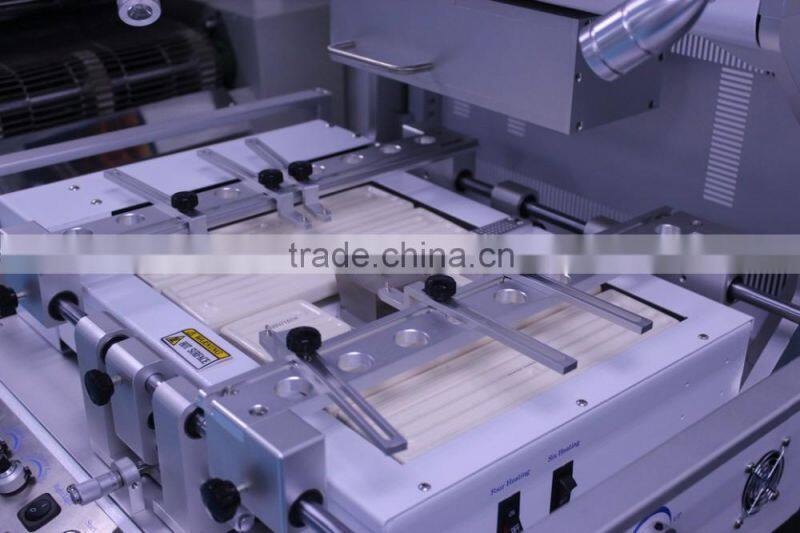

3, using stepper motion control system: stable, reliable, secure and efficient; digital video using high-precision alignment system, PCB board positioning using V-shaped grooves, linear slide, so that X, Y, Z-axis are It can be used for fine tuning or rapid positioning, convenience, accuracy and the PCB layout to meet the different ways and different sizes of PCB positioning.
4, flexible and convenient movable universal fixture has protective effects on the PCB, PCB edge of the device to prevent damage and deformation of PCB, and can adapt to all kinds of BGA package size rework.
5, with a variety of standard alloy nozzle, the nozzle can be rotated 360 degrees positioning, easy installation and replacement;
6, down a total of three independent heating temperature, three temperature zones can be multiple sets of multi-stage temperature control, while ensuring synchronization of different temperature zones to achieve optimal welding results. Heating temperature, time, slope, cooling, vacuum can be set up to work on the man-machine interface.
7, the upper and lower temperature zone temperature control can be set to 10 segments can be mass storage temperature profile can be called at any time according to different BGA, on the touch screen is also available for curve analysis, setting and correction; three heating zones using independent PID algorithm control of the heating process
8, a more uniform heating, the temperature is more accurate;
9, using high-power cross-flow fan rapidly cool the PCB board, prevent deformation of PCB board, mounting, welding, demolition process intelligent automatic control;
10, can be moved up and down joystick control head and zoom the image, quickly and conveniently.
11, configure voice "early warning" function. Related ready disassembly, welding is completed before 5-10 seconds for the voice mode warn workers. After stopping the vertical hot air heating and cooling system to start, stop automatically when the temperature was cooled down to room temperature. Ensure that the machine will not heat up after heat aging!
12, through CE certification, with emergency stop switch and automatic power-off protection device incidents.
