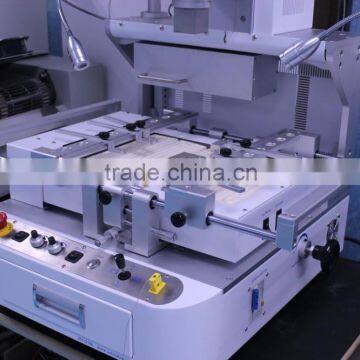

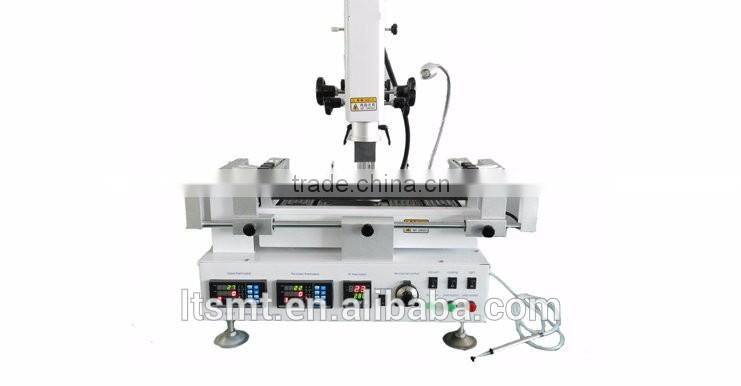

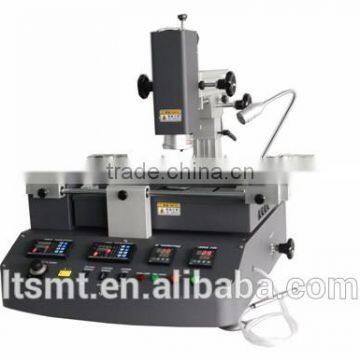

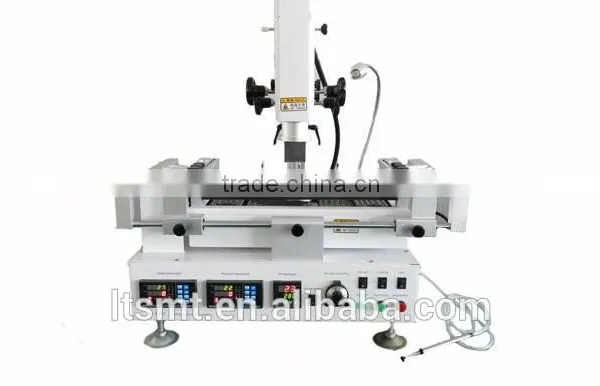

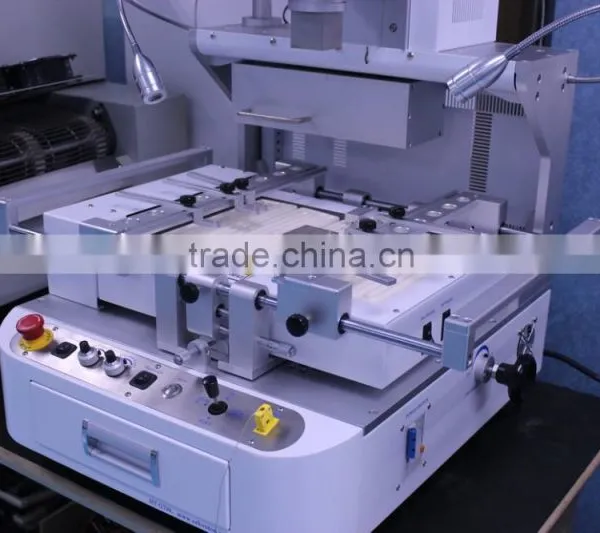

Help CenterEconomy and Easy Operate BGA Rework Station
Related Products
-
LED, SMD Rework Station IC, LED Light Bead Welding Station LED Aluminum Plate Heated Warm-up Platform SMT Chip Rework Heating stUS$ 150.00 - 280.00MOQ: 1 Set -
SMT Repair Rework Station Digital Constant Temperature Heating PlatformUS$ 150.00 - 250.00MOQ: 1 Set
-
High Quality SMT AOI Machine LT-V610NegotiableMOQ: 1 Set
-
Semi-Automatic BGA Rework Station TG-730A(HD)US$ 1.00 - 10000.00MOQ: 1 Set
-
BGA Rework Station SuppliersUS$ 1.00 - 1500.00MOQ: 1 Set
TG-392 Specifications
(1) Power: Single phase 220V AC 50/60HZ 4KVA
(2) Power: 800W Total Power: 4000W heating and the upper
Bottom heating power: 800W at the bottom of infrared heating
power: 2400W Standby power: ≤ 10W
(3) Temperature control: high-precision K-type thermocouple closed-loop control
(4).PCB positioning mode: V-groove + Z fonts universal fixture pairs of Y-direction adjustment
(5) PCB size: MIN 10mm * 10mm MAX 350mm * 400mm

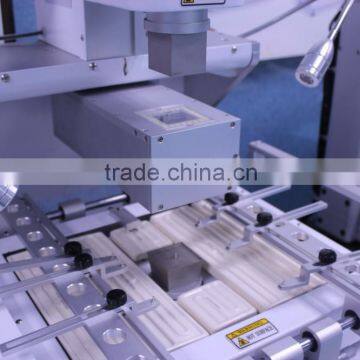

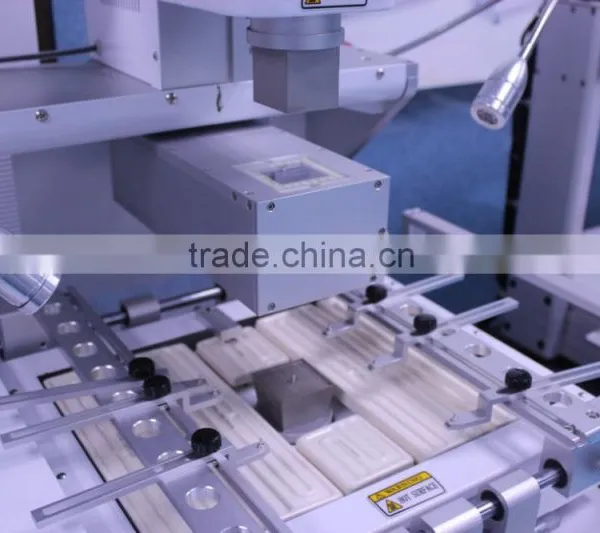

(6) Infrared Preheating area: 210mm * 340mm
(7) Machine Dimensions: (or so) wide and 580mm * (before and after) long 580mm high 650mm
(8) Machine weight: Net weight 35KG
Features:
1 Precision imported raw materials (temperature control instrumentation PLC heater) precise control of BGA desoldering process.
2 The machine uses the independent control of three-zone temperature control is more accurate. The first temperature zone. Second temperature zone can be set in paragraph 8 liters (down) 8 segments constant temperature control, which can store 10 groups of temperature curve.The third zone warm-up, independent temperature control to ensure fully preheat the PCB during the soldering process,
3 Machine with computer communication features built-in PC serial port, external temperature interface software can be computer controlled.
4 Selection of imported high-precision thermocouples, precise temperature detection.
5 the upper part of the heating and bottom heating alone to take the temperature curve, the cross-flow fan rapid cooling principle to ensure that the PCB during the soldering process, will not be deformed.
6 Desoldering and soldering is completed with alarm function, with vacuum suction pen, convenient suction trips to the BGA desoldering.

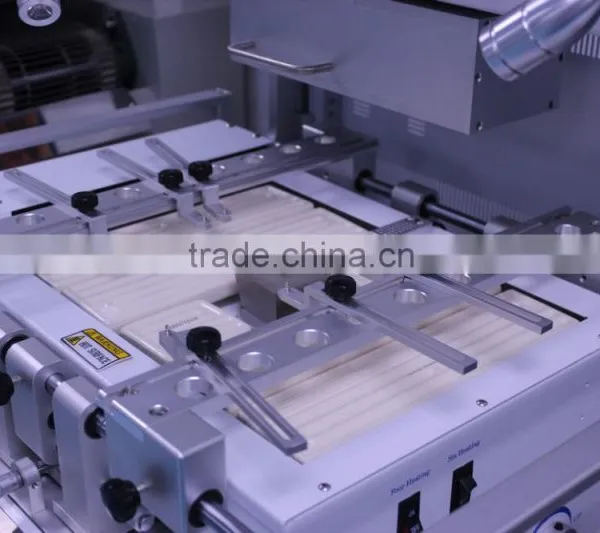

7 PCB positioning using a V-shaped slot, flexible and convenient removable universal fixture, PCB protection.
8 The large thermal capacity of PCB and other high temperature requirements of lead-free soldering and so can easily handle.
9 Hot air Tsui 360 degree rotation, easy to replace. With a variety of size of hot air nozzle, special requirements can be customized for notebook computer motherboard, desktop computers, motherboards, and other large-scale circuit board repair, and cell phone motherboard micro maintenance of the chip
10 three temperature zones can be independently controlled to achieve the plants, drying, repairing function.
