Fluorescent/Bulb lamp aging production line (12m aging line)
- 5 Set / Sets per Month
- Shenzhen
- automatic toroidal winding machine Replace JOVIL toroidal winder by (SS900B6 series final coil OD 10~81mm)
- Replace RUFF toroidal winder by (SS900B6 series final coil OD 10~80mm)toroid winding machine
- (SS900B6 series) automatic toroidal winding machine
- Replace VC toroidal winder by (SS900B6 series) automatic toroid winding machine
- SS966T 6 spindles automatic fine wire twisting transformer coil winding machine
- SS810 Automatic high torsion electric power transformer coil winding machine
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | createtop |
Model Number: | LT-AL12M | Voltage: | Normal pressure zone AC110V/ 220V/240V/AC277V | Power(W): | 1pcs 35KW |
Dimension(L*W*H): | 12000X1620X1450mm | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1,Overview of basic functions of equipment
This device is dedicated to the aging of LED bulb, through the high pressure, pressure, low pressure, high temperature, impact and other voltage area of LED ball lamp.
Power system using frequency conversion speed control system, electronic parts: the use of PLC control 7 inch screen display.
2,equipment characteristics
1,Through the full temperature and various voltage transformation, greatly improving the aging efficiency, saving time, saving electricity, (if the full load of health, equipment investment 4 months can be recovered).
2,The display of man-machine interface is friendly, the operation is simple,
3, Aging time can be adjusted (30 min -4 hours can be set)
4, Aging power supply configuration of high - quality fixed isolation transformer, safe and stable and durable,
5, Product aging process unique, can speed up the product's aging time.
6, The operation of the device body height and production assembly line height is consistent, reducing the two working hours and people.
7, The equipment aging of a batch of product cycle can be the fastest for 30 points, and the use of ordinary aging aircraft to 24 hours a cycle, so the device can save more than 80%.
Bulb lamp aging production line

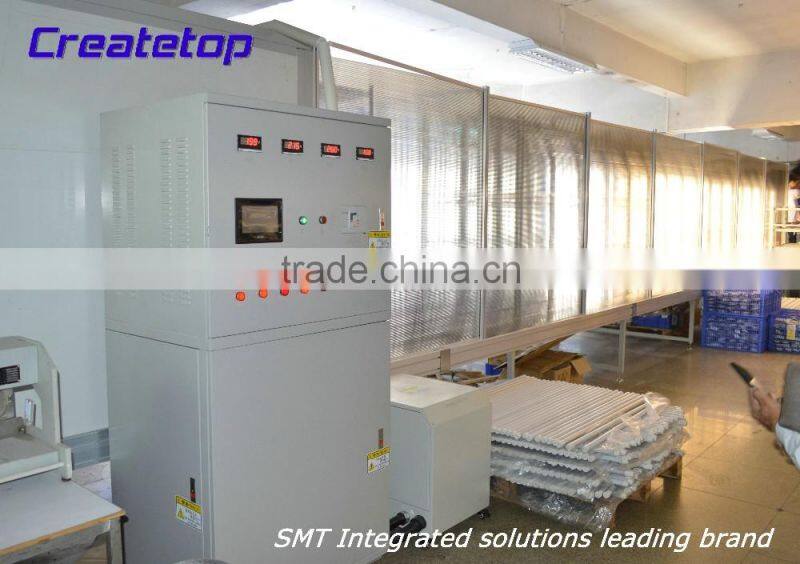

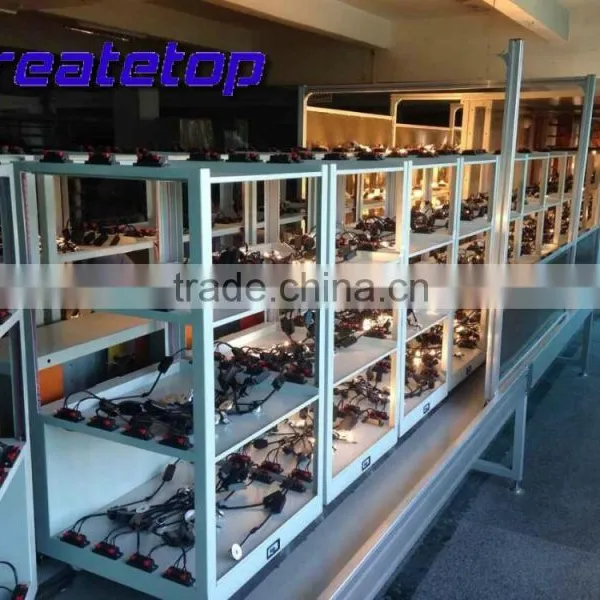

Fluorescent lamp aging production line
3, Basic configuration and structure
1, The motor power: Taiwan Dongling company. 1.5KW motor, WPS60/100 type reducer, Mitsubishi inverter, frequency conversion stepless speed regulation, adjustable aging time 30min-24h.
40, The frame is made of 2 * 40 steel pipe welding, the body is made of aluminum alloy with 130 * 23 aging lines, the body is made of aluminum alloy, and the supporting plate is made of 1.2mm cold plate bending.
3, The Hangzhou chain conveyor chain factory produced C212 inch high strength double chain.
4, A chain plate: the 1.5mm cold bending plate rolling into 148 * 1400mm, across the board a total of 144 piece of supporting plate, each plate installed socket, 16PCSE27, and fluorescent lamp holder 4 sets. Also all chain plate is installed four conductive copper brush, aging area in the upper and lower rotating the upper part of the chain, that is across the board a total of 144 piece of supporting plate. 2304PCS ball lamp or 576PCS fluorescent lamp in the aging.
5, Conductive rail: the full range of two road conduction rail, the use of high quality PVC insulating rubber pad, the assembly of 25 x 50X2mm stainless steel aging dedicated conductive track.
6. Constant temperature area: the constant temperature system adopts electric heating type, high temperature and high pressure area is equipped with 8 1000W/ electric heating tube, the temperature and temperature 0-60 can be adjusted, the PLC screen is displayed.
7, The detection of the impact of the electric circuit: the impact of the aging area for the beat switch life of the aging control zone. Using PLC control, off time can be set from 1-10 seconds
8, Across the board from the into a power point, lights on the aging line is no break aging, the aging voltage and the way by the host controller.
11, The aging process: A section of the product on the assembly line area (at the end of the machine), -------B segment for each voltage aging area.
12, The full range of voltage power: three phase AC 25KW.

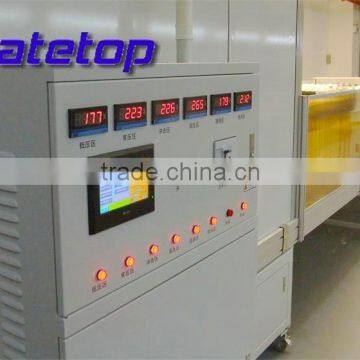

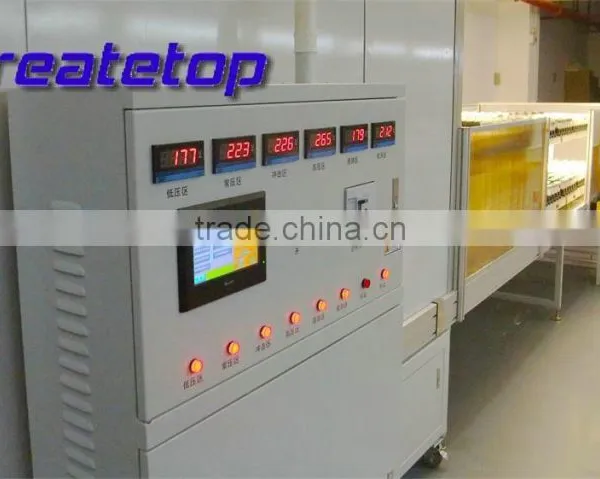

13, Electrical control: voltage, temperature control instructions using digital display, the whole system using PC touch screen control, using 1 power distribution control cabinet installation. With the operation of the touch screen and emergency stop switch.
14, The body color: white line chain plate computer spray, aluminum alloy as the primary colors, the white color with computer

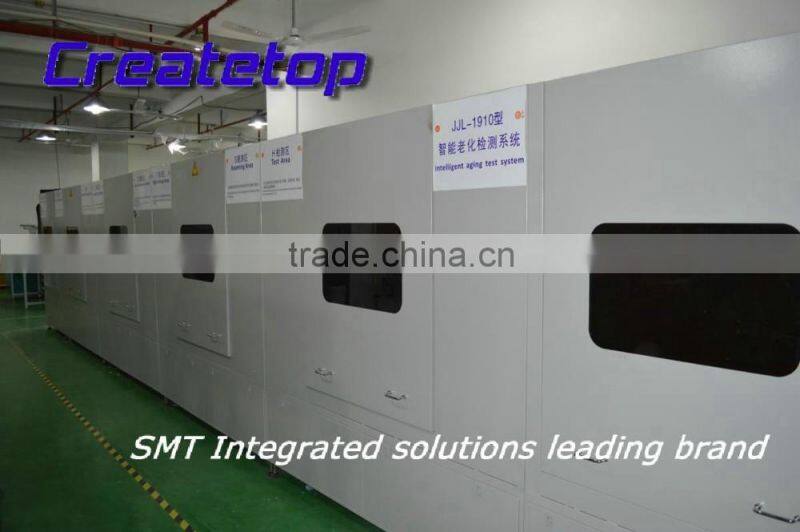

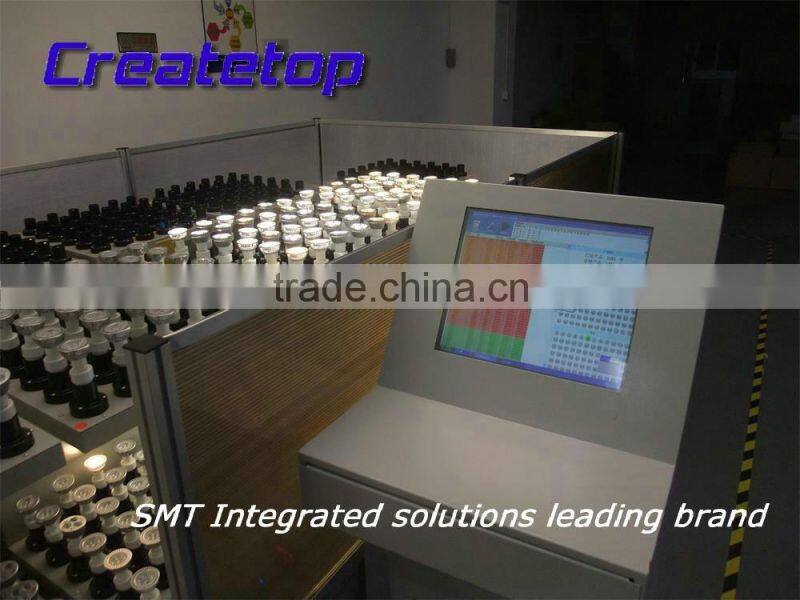

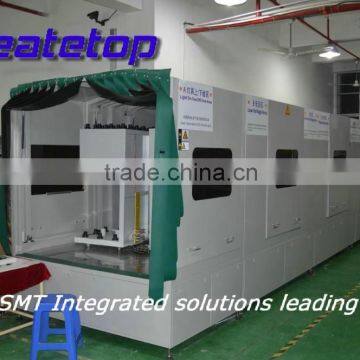

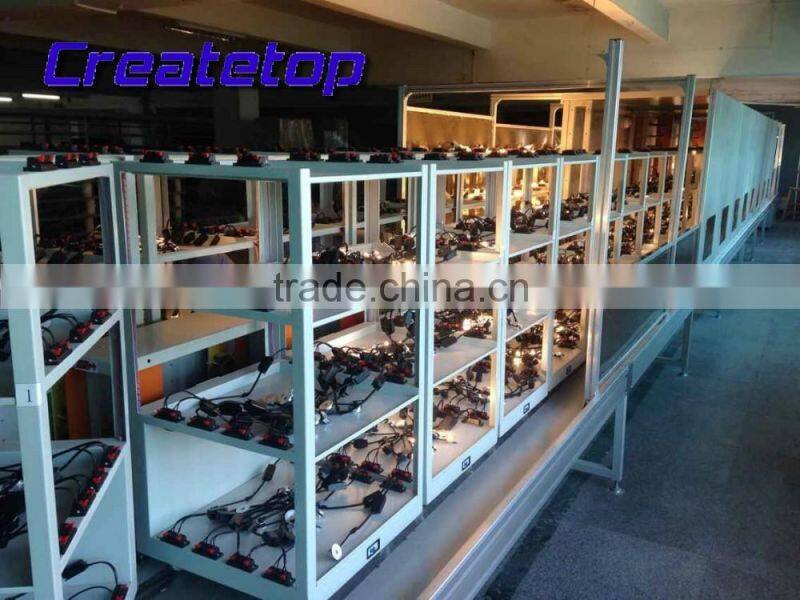

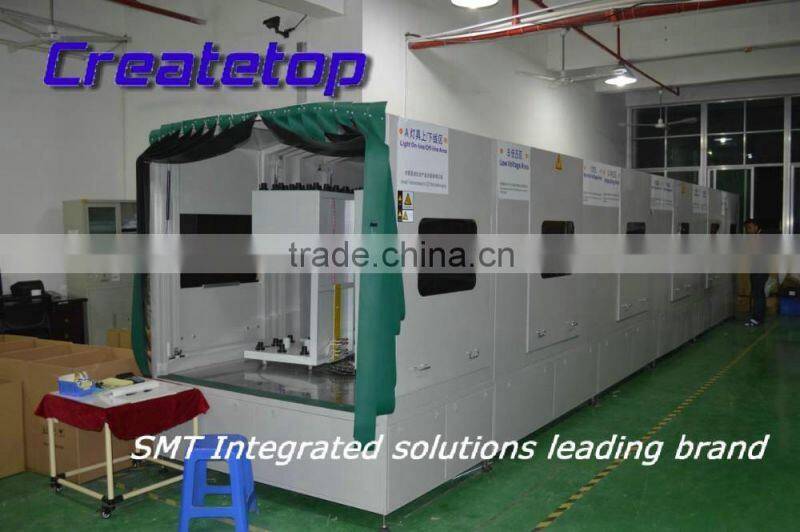

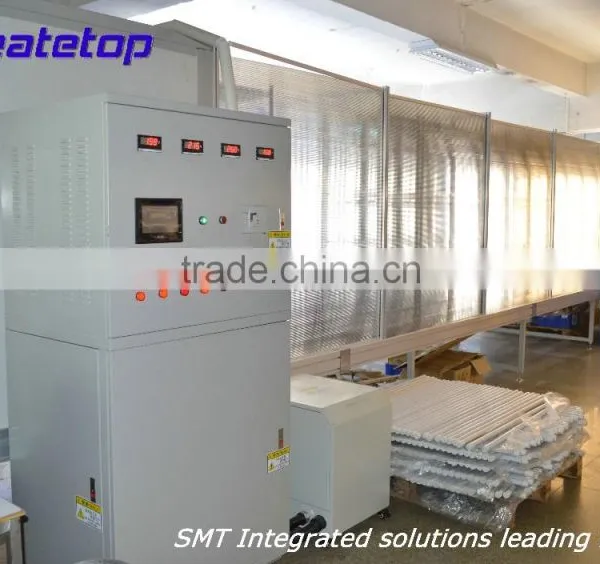

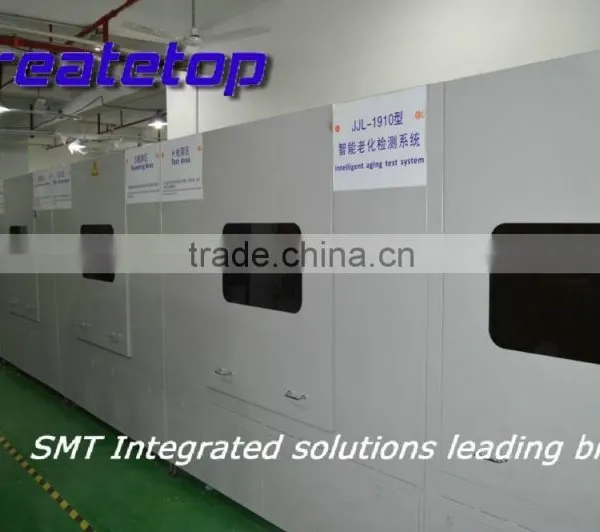

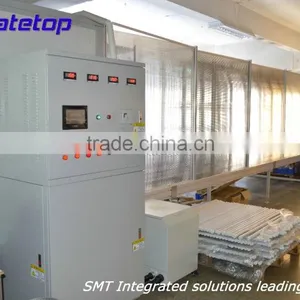

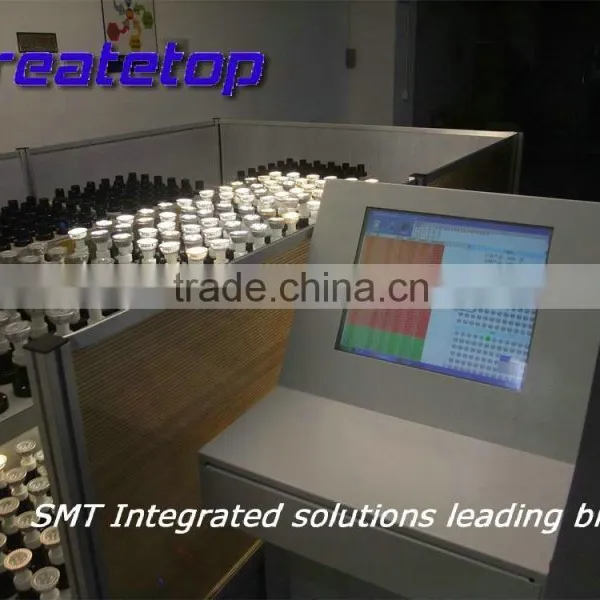

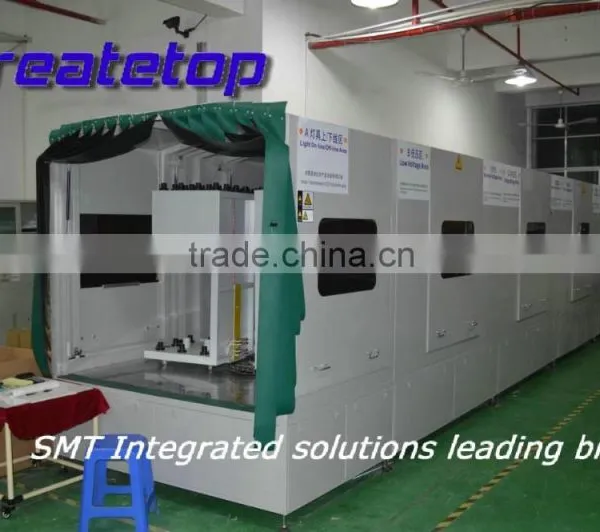

The above pictures are taken in our customer factory, the actual production and use of the results
4,Equipment technical parameters
Line speed | 30 min / One cycle---240 min /One cycle can be set arbitrarily | |
Impulse time | 1---10S ( can be set) | |
Slow travel time | 1---10min( can be set) | |
Timing switch machine | 1-24 min( can be set) | |
Working environment temperature | -5-50℃ | |
Working environment humidity | ≤85% RH | |
Aging area voltage and temperature parameter | ||
Normal pressure zone | AC110V/ 220V/240V/AC277V | |
Impulse voltage region | AC240V/220V/277V/110V | |
High voltage zone | AC277V/260V/310V/125V | |
Low voltage area | AC85V/175V/220V/240 | |
High temperature zone | Temperature: 30-65℃ can be set up | |
Transformer capacity | 1pcs 35KW | |
Equipment size: | Disc::12000X1620X1450mm | |
LED (according to the daily production of lamp aging, 60 minutes one time, 10 hours every day ) | Bulb lamp 23040PCS, or fluorescent lamp 5760PCS |

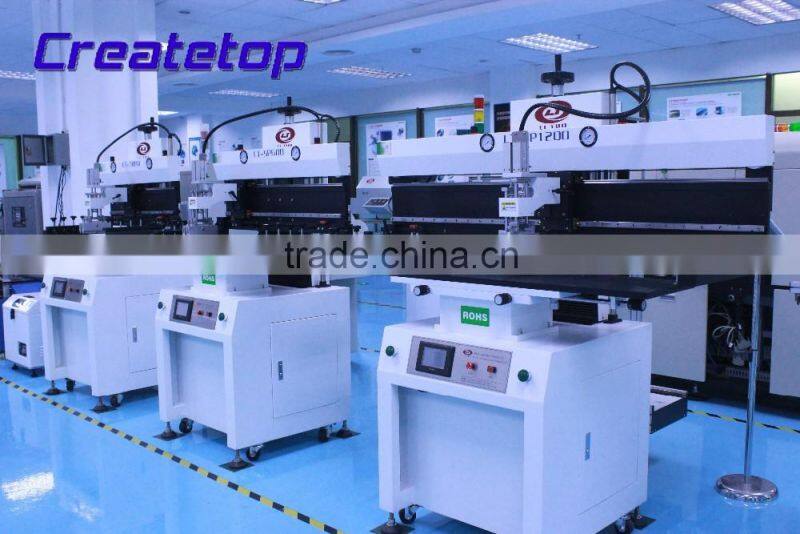

Createtop brand semi automatic printing machine can produce bulb lamp,
fluorescent lamp (the longest 1.2M/1.5M)
The company has set up the equipment exhibition hall in Shenzhen,
welcome the foreign friends to come to visit.
