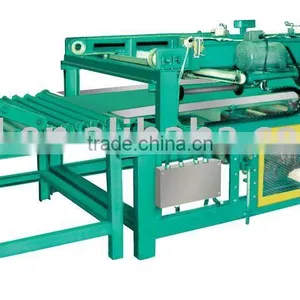

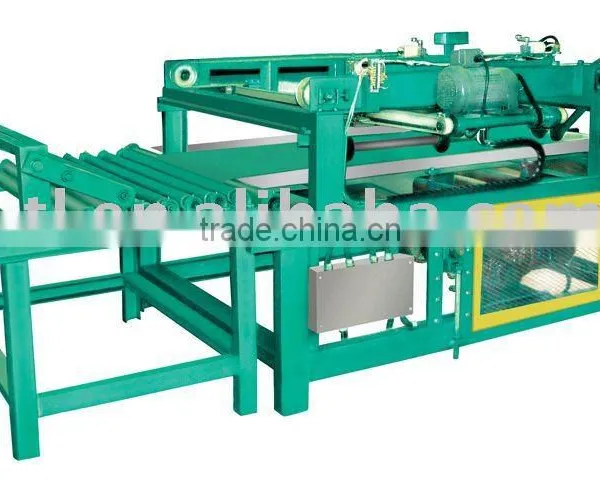

Brick Cutter

Dimension L x W x H

2,850 x 1,800 x 1,240    (mm)

Cutting Interval

~22    (1/Min)   Matched with the extruder

Cutting Width Range

≤600    (mm)

Cutting Length Range

≥300     (mm)     According to requirement

Cutting Precision

±1     (mm)

Motor Power

(0.4+1.1) (Main)+ 1.5 (Servo) = 3  (kw)

Weight

≈  1000      (kg)

Standard Set

Mechanical Jacks System: Belt conveying frame, cutting mechanism, motor etc. Electric Control System: Servo motor and PLC coding unit, control cabinet, cylinder etc.

Features of Type TL-QDJ-WS /TB

The Cutter made of leading technology droved and controlled by servo motor and PLC coded program checking and feedback the length and speed parameters of the clay column continuous extruded, then cutting it to fixed length synchronously. For its unique design and technical know-how, the cutter is absolute superior to other traditional cutters in 6N+2L+3H features listed below. Its way of working is different from the Type TL-QDJ-LS/TB by horizontal conveying tiles & cutting, so it is suitable for larger size of tiles and bricks, especially the ceramic-plate etc. The max length and width of the ceramic-plate to be cut can reach to 2000mm and 700mm separately. It becomes surely the good choice of the kind of ceramic-plates production line of modern and high level.

6N---No cutting leftover margins, No cutting leftover margins recycle process, No man-made error, No surface default caused by sliding friction, No kerosene used, No pollutions to workers health and environment and might be hidden fire danger caused by kerosenes volatilization. 2L---Low workers cost (for there are less workers needed), Low materials cost (since there is no needed kerosene for lubricating). 3H---High quality (for the high precision, auto-chamfering and sliding friction default eliminated), High out put (for no leftover margins synchronously cutting process and high efficient), High performance-price ratio (for lower cost while high quality and out put automatically).
