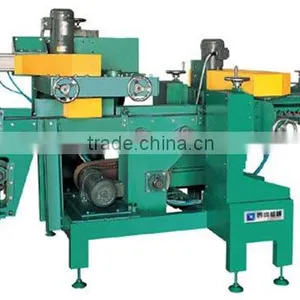

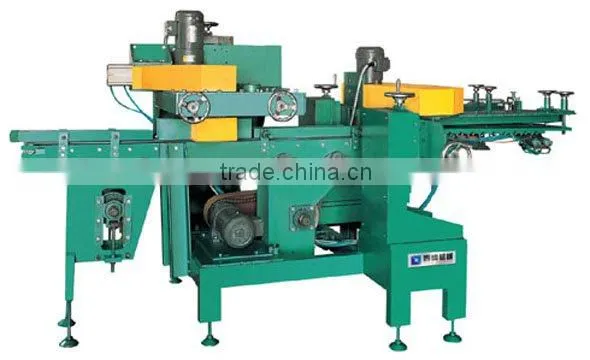

Help CenterClay Fired Brick Plant Auto Splitting Machine TL-PZJ-AT
Related Products
-
Fired Glazed Clay Tile Machine Vacuum Extruder TL-CXJ-300BUS$ 42,000 - 60,000MOQ: 1 Set -
Clay Tile Making Machine Vertical Synchronous Cutter Type TL-QDJ-LSTBNegotiableMOQ: 1 Set
-
Clay Facade Brick Making Machine Auto Splitting Machine Type TL-PZJ-ATNegotiableMOQ: 1 Set
-
China Split Tile Making Machine Manufacturer TL-CXJ-300B 13112719347US$ 42,000 - 60,000MOQ: 1 Set
-
China Red Clay Split Tile Making Machine Auto Splitting Machine Type TL-PZJ-ATNegotiableMOQ: 1 Set
clay brick plant
Dimension L x W x H |
2,838 x 1,724 x 1,540 (mm) |
Working Frequency |
≥70 (times/min) (Adjustable) |
To Be Split Tiles Size |
L x W(~300) x (~200 ) (mm) (Adjustable) |
Main Power |
0.75 + 0.75 + 0.4 = 1.9 (kw) (cutting) + (driving) + (putting) |
Weight |
≈ 1500 (kg) |
Standard Set |
Mechanical Jacks System: Belt conveying frame, rotating splitting cutter mechanism, motor etc. Control System: Electric control cabinet, cylinder etc. |
|

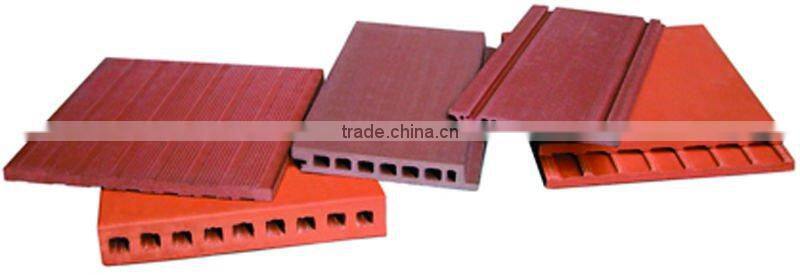

Features of Type TL-PZJ-AT This machine is made for extruded forming and after-fired double-piece split tiles of high efficient and auto-splitting process instead of traditional manually splitting process. It has functions of auto splitting the double-piece split tiles to two parts and putting them facing up identically which is much helpful for the next checkout and sorting process. It droved by motors controlled by PLC adjusting different belt conveyors to work synchronously, through whole automatically working process including several steps of conveying tiles, splitting to two parts, conveying tiles forward and putting them facing up identically. Since the splitting frequency can be up to 70 times per minutes, there is very less workers needed, and means the output of this machine 8 times higher than what traditional manually way does, beside this, the machine also has a wide and flexible working range for the tiles, and adjustable as users requirements, and what’s more is the beyond 99.5% qualified rate of final products quite higher compared. With its unique design and remarkable features, it is truly the ideal equipment in making split tiles of high efficient, good performance and much lower labor cost. | |
