Foshan Tele Used Extruder for Sale /tile Extruder Machine/double-satge Vacuum ExtruderTL -CXJ-DII40-35

Foshan Tele Used Extruder for Sale /tile Extruder Machine/double-satge Vacuum ExtruderTL -CXJ-DII40-35 photo-1
US$ 95,000 - 100,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, extruder machine
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
FOSHAN /SHENZHEN /GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, extruder machine
Brick Raw Material Clay
Processing Brick Molding Machine
Method Vacuum Extruder
Automatic Yes
Capacity 10-15 T/H
Place of Origin Guangdong, China
Brand Name TELE MACHINE
Model Number double-satge vacuum extruder TL-CXJ-DII400/350
Voltage 380w
Power 22+45kw
Dimension(L*W*H) 3,870 x 1,820 x 1,850 (mm)
Warranty 1year

Foshan Tele used extruder for sale /tile extruder machine/double-satge vacuum extruderTL -CXJ-DII40-35

Specifications

1.reasoable price
2.large output
3.long service life
4.easy adjustment
5.environmental protection



Dimension L x W x H

3,870 x 1,820 x 1,850    (mm)

Production Capacity

≈  10-15   (tons / hr )

Degree of Vacuum

≤  - 0.095   (mpa)

Augers Nominal Diameter

400 / 350     (mm)



Weight

≈ 10000   (kg)

Standard Set

Mechanical Jacks System: High strength and ultra-thick gears reduction device, etc. Electric Auto-Control System: Made in china high-quality frequency converter, electric motor and control cabinet, vacuum pump etc.

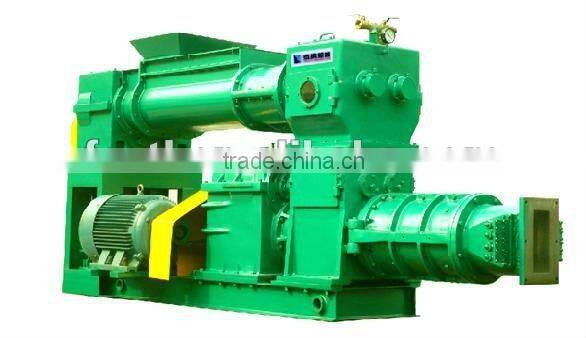

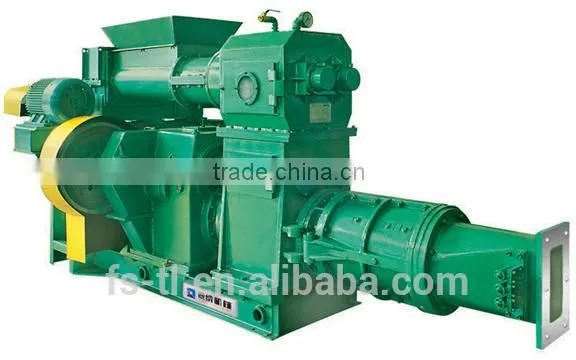

Features of Type  double-satge vacuum extruder TL-CXJ-DII400/350

TL Vacuum Extruder serials are made of leading and adding German technology for high-grade extruded products by TELE professional team. Except sharing same advantageous and features with TL other extruders, the new type TL-CXJ-400/350DII is really different for its two stages structure design with upper stages function of feeding & mixing and lower stages function of vacuum extruding which drove by two motors frequency convertibility and independently. As a result, it has remarkable working efficacy from its highly versatile, steadily and speedily treatment of the working materials to its good quality and big quantity of the out put products, it ensures a stable, reliable and efficiently use as well as easy-to-change working materials structure and very low noise and vibration, also lower charges for electricity of 30% cut down compared with the similar type.he TL-CXJ-400/350DII extruder is useful enough to meet many kinds of production requirement.

Advantages

1. Double stages structure of feeding & mixing and l vacuum extruding.

2. The two stages drove by two motors frequency convertibility and independently.

3. Good quality and big quantity of the out put extruding products.

4. Lower charges for electricity of 30% cut down & the augers made of special alloy steel.
