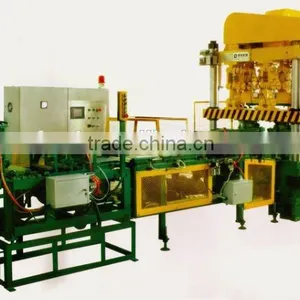

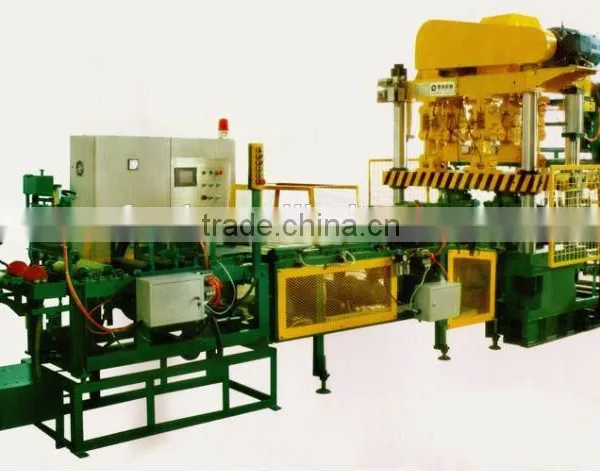

Hydraulic Cold Press Clay Working MachineTL-AUTOYWJ-IIW

Name: Hydraulic Cold Press Clay Working MachineTL-AUTOYWJ-IIW
Brand: Tele Machine
SKU: 104800495
Availability: InStock

US$ 240,000 - 250,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Tele Machine

Model Number:

cold press TL-AUTOYWJ-IIW

Foshan Tech-Leader Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN / FOSHAN / GUANGZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Tele Machine

Model Number cold press TL-AUTOYWJ-IIW

After-sales Service Provided Engineers available to service machinery overseas

	Major Technical Parameters of Auto Roofing-Tile Double-Moulds Press Line Type TL-AUTOYWJ-IIW

(Whole Line) Dimension L x W x H (mm)		(Main Press) Dimension L x W x H (mm)	Max. Pressing Force (kn)	Pressure Maintaining / Max. Stroke (mm)	Motor Power (kw)
7,740 x 2,220 x 2,730		1885 x 2,220 x 2,730	2400	8 / 250	17.75
Working Frequency. (1/min)		Working Pieces Per Minute. (pc/min)	Working Table L x W (mm)	Adjusting-Height for Mould (mm)	Net Weight (kg)
10~12		20~24	1640 x 865	10	≈ 11000

	Features of This Type
	1. Super adapt to a variety of roofing tiles of multi-shape, multi-volume, flexible, high quality production and doubled capacity of type IW. 2. Optimized on the basis of type IW and assembled eight inked-function steps in one, the double-acting line achieves through the after-extrusion process to the before-drying process the whole process automatic production without man-made errors. 3. The unique patented technology of reciprocating up & down cram formation mechanism, much easy to mount & adjust the molds, and accurately control the molding pressure with obvious advantages in mold use & maintenance, and smooth running of stably & reliably.
