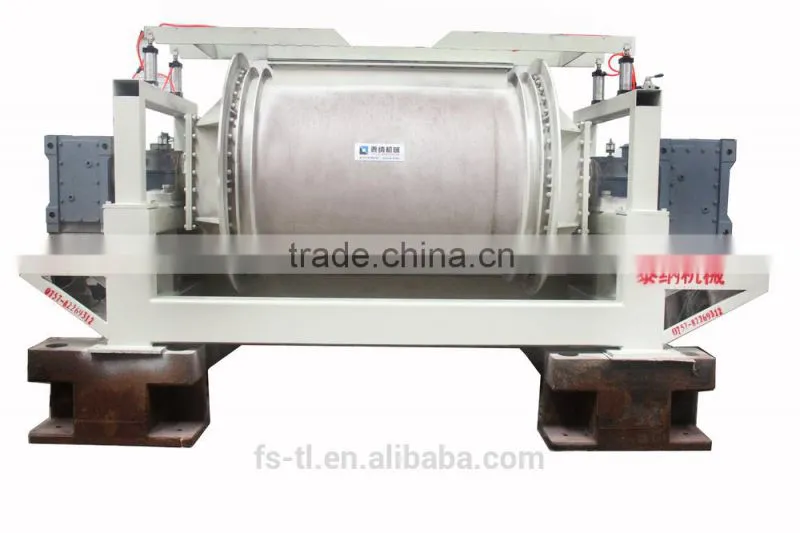

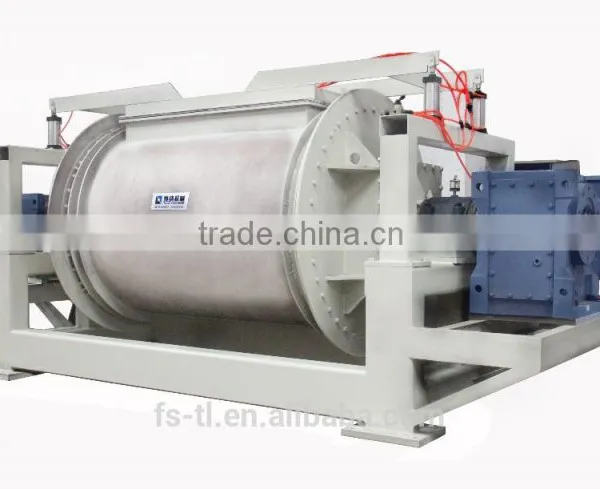

Hybrid Mixer Type TL-JBJ-150-2CB

Major Technical Parameters of Zero Gravity Efficient Hybrid Mixer Type TL-JBJ-NØ150-2CB

Dimension L x W x H (mm)

Working / Max. Loading Capacity (m³)

Mixing Barrel (Inner Diameter x Length) (mm)

Motor Power (k w)

Net Weight (kg)

4,405 x 2,016 x 1,841

1.4  /  2.1

1220 x 1,850

60.5

≈  6,150

Features of This Type

cially made for the mixing process in ECP production line of extrusion fiber cement products or some other kind of products made of special materials, it can make each component between of variety raw material well mixed, uniformly distributed and Cooling with mixture material natural remaining & effective no leftovers output, to meet the requirement of subsequent extrusion forming process, and guarantee the final product’s quality. (Its mixing speeds or other parameters are adjustable via VFD)

2. According to the special process technologies & requirements like above cement or binding material contained production which materials may easily be hydration heat or timing solidified, or easily to attach to the inner wall of the mixing barrel, this mixer adopts the unique high strength gearbox of symmetrical structured and with zero gravity efficient & powerful mixing force, automatic control for the top door switch open & close for feeding device, as well as 180°angle rotation unloading function etc, ensure efficient automation work of stability, durability, high quality & strong technological advantages, which input and output of raw material without loss, the prepared mixture can be 100% output to the next working process after each batch mixing work.
