Special material forming Machine

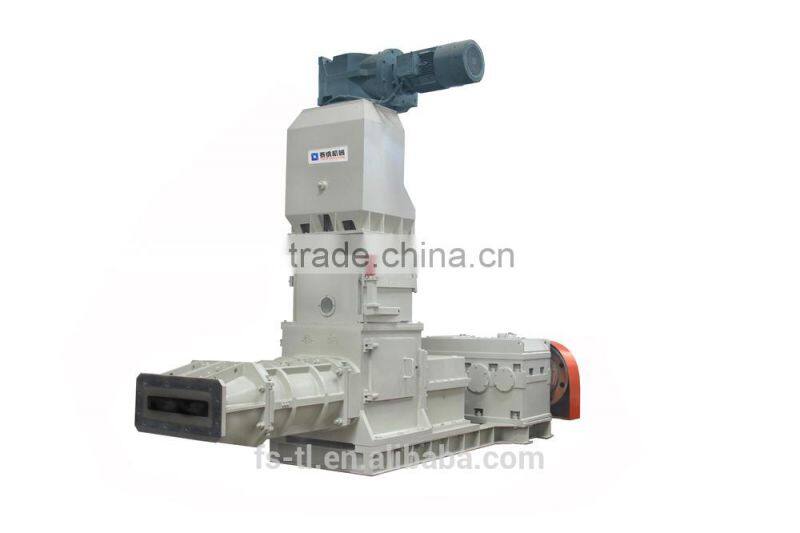

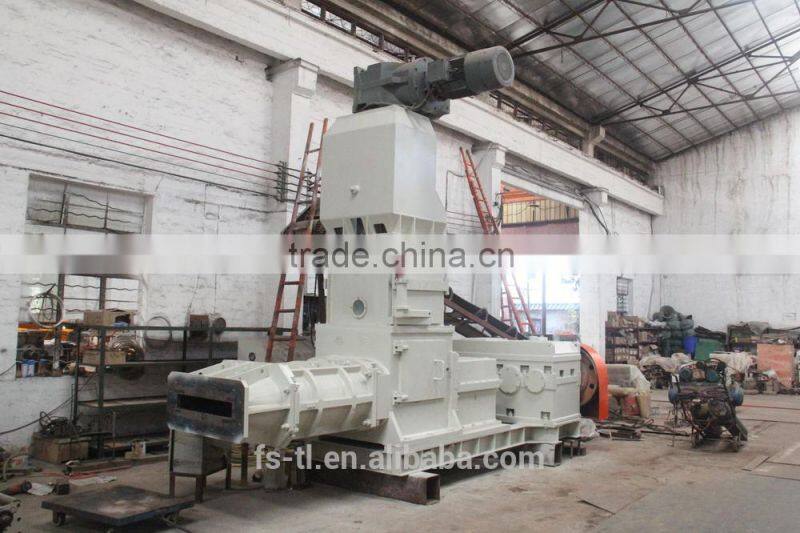

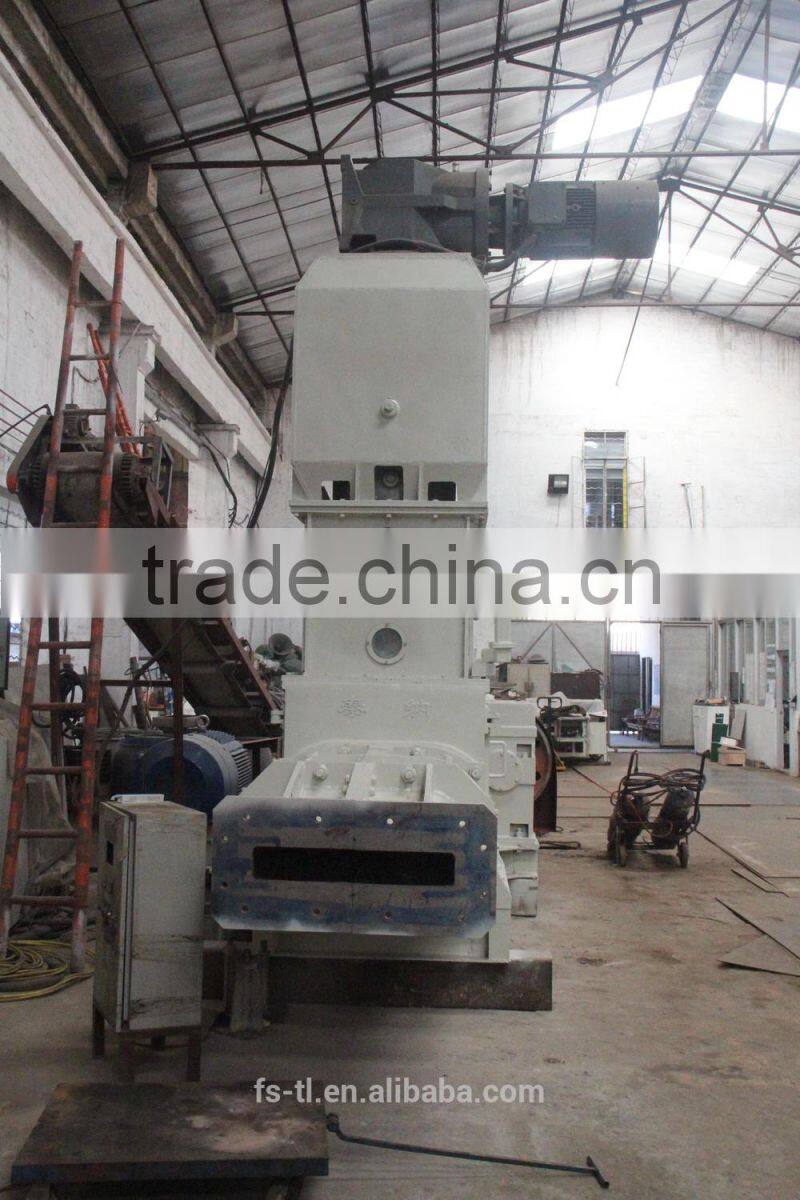

Major Technical Parameters of Twin Screw Double-Stage Vertical Mixing Vacuum Extruder Type TL-CXJ-HIICZ40.40X2 | |||
| |||
|
Dimension L x W x H (mm) |
Production Capacity (Adjustable by VFD) (tons/hr) |
Max Twin Screw Shaft Diameter (mm) |
Augers Nominal Diameter (mm) |
5,750 x 2,530 x 4,020 |
6 ~ 60 |
160 |
400 / 400 |
|
Degree of Vacuum(mpa) |
Mixing / Extruding Motor Power(kw) |
Extruding Pressure (mpa) |
Net Weight (kg) |
≤ - 0.097 |
30 / ( 75 ~ 110 ) |
4 |
≈ 15000 |
| |||
Features of This Type | |||
|

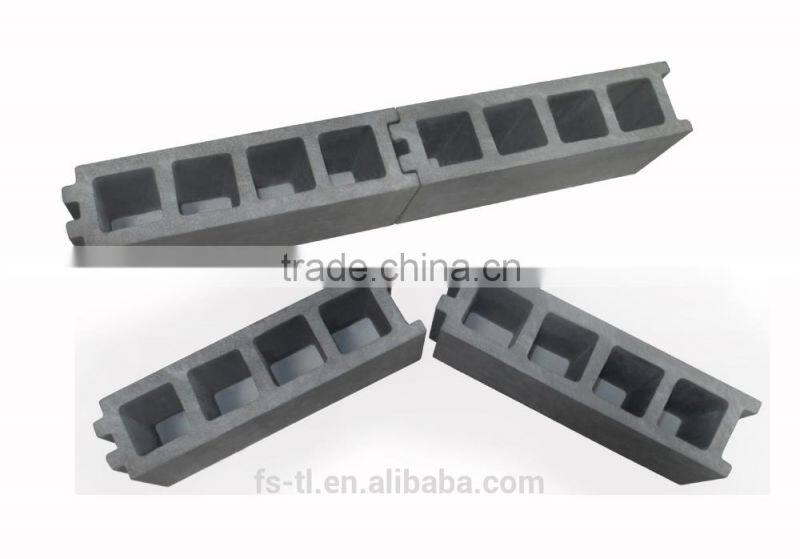

1. Patentedtechnology specially made for high-grade extruded wet-forming all kinds of building material products (like fiber cement, ceramic or clay products etc.), especially for making special kinds like hollow or shaped fiber concrete or cement green wall boards, sonic barrier boards, calcium silicate boards and artificial stone plates etc. 2. Uniquedesigned vertical casting-steelintegral structured machine body,with spiral propulsion and built-in water circulation cooling extrusion barrel and driving mechanisms of high strength herringbone gear-unit & spiral bevel gear-unit & parallel shaft helical gear-unit, special alloy steel augers, mixing and extrusion double-stages frequency controlled and coordination matched, and thanks to the advanced circulation cooling & quick knockdown extrusion system structure, it is easy cleaning and better temperature balancing during running process or after each shift working, it aims at some special process technologies & requirements like cement or binding material contained production which materials may easily be hydration heat or timing of solidified. All these ensure high quality, efficient and reliable use. | |||
TELE MACHINE can make the products involving clay or ceramic tiles & bricks, especially focus on the special and new one, including roofing tiles, ceramic plate, terracotta panel, split tiles, clay bricks, hollow bricks, split rock, special-shaped ceramic, artificial stone plate, cubic ceramic, paving brick etc. And its recent development of unburned technology of energy saving & conservation and environmental protection green new material equipment, such as green hollow extrusion plank production equipment etc.
Foshan Tech-Leader Machinery Equipment Co., Ltd. with the brand name of TELE MACHINE is located in the beautiful & famous China ceramic city -- Foshan, Guangdong province. Since its establishment, TELE MACHINE has been committed to the research & development & manufacturing of the process machines for new varieties tiles& bricks of clay or ceramic building materials. Haven nearly 20 years of industry experiences and won 70 patents in the field of intellectual property rights of technology, we are the State High-Tech Enterprises, Guangdong Civil-Run Science and Technology Enterprises, Foshan Intellectual Property Right Pilot
Enterprises and one of the first batch Guangdong Low-Carbon Pilot Enterprises in Foshan. Focus on supplying tiles & bricks process machines
We focus on offering machine lines of good solution
for roof tile / split tile / hollow bricks etc.
We want to do better with you.
