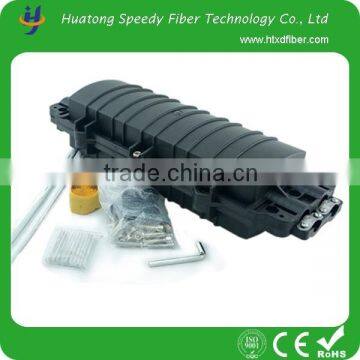

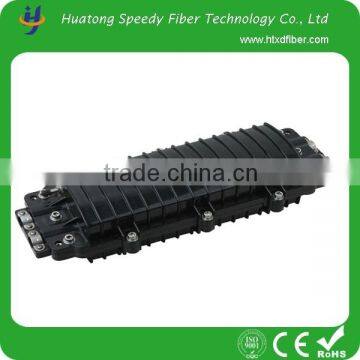

HOT SALE fiber optic splice enclosure and optical fiber joint box.
The main body made in high-quality engineering plastics(ABS), the external structure and fasteners are stainless steel, anti- corrosion,resistance and good anti-aging properties. The inlet of cable has reliable seas, good performance of waterproof.
Using technology of secondary pressure cable to ensure that inside the box no has optical fiber additional loss. Is suitable for aerial, buried, pipeline installation with multiple reuse and expansion capabilities.
1.Uniformity & high reliability
2.High quality plastic box body
3.With the certification RoHs.
(1) Environment Condition:
Environment Temperature: -40°C~+75°C
Atmospheric pressure: 70~106Kpa
(2) Electric property:
Insulation resistance between the metallic elements themselves and between metallic element and the earth is more than 2×104MΩ;
The Voltage resistance between the metallic elements themselves and between metallic element and the earth is 15KVDC/1min, Non-puncture, no arc-cover.
(3) Optic property:
The curvature radius of the spare fiber is over 37.5mm; no additional optic attenuation.
(4) Seal Performance:
Airproof performance: Airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when parked in the common temperature water.
(5) Re-encapsulation Performance:
No change in the index of air-proof performance after three times of repeat encapsulation
(6) Mechanical Performance:
After all the following tests, the box and all the components inside don’t change, check through gently or open it if necessary.
When the closures are pressurized up to 60 kPa, it can still meet the seal performance standard after the mechanical performance test
a. can withstand 1000N horizontal pull force;
b. can withstand 3000N/10cm vertical pressure;
c. can withstand 16N·m impact three times;
d. can withstand 50N·m twist force 10 circling times 10 cycles of ±90°twisting angle ;
1.seal the cable,
tect the optical fiber splice and storage reserved optical fiber
Suitable for aerial, pipelined or direct buried applications; suitable for common fiber cables and ribbon cables; suitable for straight-through as well as for branch joints to seal and protect splice, fusion, layout and storage of the fiber cables
Our philosophy is to provide our clients with a wide choice of quality product and unprecedented services. We assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your estimated organization. The mission of our company is “GREAT”: Greet all customers and make them fell welcomed; Respect cultural and other personal different; Evaluate and clarity customer’s expectations; Address and respond to customer’s needs; Thank and verify that needs have been met.
--Advantage we have:
A: Experienced fiber optic product supplier
B: professional technology term and sales department for your service.
C: Alibaba golden supplier, factory recognized by CE
D:All the question will be dealed within 24 hours.
--Benefit you get:
A: stable quality- coming from good material and technology
B: lower price: not cheapest but the lowest at the same quality
C: good service: satisfactory service before and after sale.
D: delivery time: 1-8 days, delivery product ASAP after the confirmation.
