Specifications
1.High reliability,high efficiency,low cost2.Protections:Short circuit/Over load
3.300~450VDC Output
|
Mode Item |

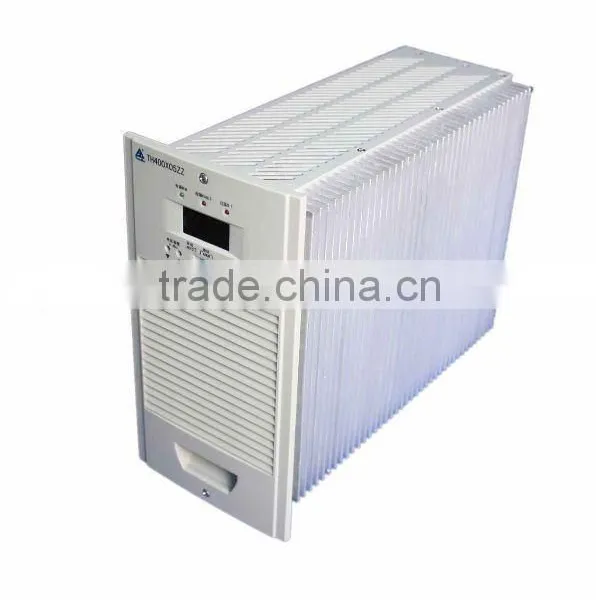

TH400X05ZZ |
||
Output current(A) |
5 |
||
Power(KW) |
2.2 |
||
Weight(kg) |
9 |
||
Cooling method |
Natural cooling |
||
Interior radiator temperature rise |
≤30°C |
||
Output adjustment range(VDC) |
minimum |
300 |
|
Typical value |
405 |
||
maximum |
450 |
||
Over voltage protection |
480±20VDC |
||
Input voltage range(VAC) |
minimum |
323 |
|
Typical value |
380 |
||
maximum |
437 |
||
Stability precision of voltage |
±0.5% |
||
Stability precision of current |
±1% |
||
Power factor |
≥0.93 |
||
Efficiency |
≥90% |
||
Maximum noise(dB) |
50 |
||
Storage temperature(°C) |
minimum |
-40 |
|
Typical value |
25 |
||
maximum |
60 |
||
Working temperature(°C) |
minimum |
-10 |
|
Typical value |
25 |
||
maximum |
40 |
||
Parallel instability |
±5% |
||
Start up time(s) |
3~8 |
||
Ripple coefficient |
≤0.5% |
||
Over current protection |
When output current over point value, it will stable output. The output current will not increase. |
||
Output shot circuit protection |
When short circuit the module will automatic protect itself. When the trouble is over ,the module recovery to work. |
||
